M-BAR LED 1040 ZOOM
Main informations:
» Product from category: Reflectors LED / Reflectors LED BAR
» Product series: DJ
Product codes:
» Product code: F7200203
DJ
Check series

Log in, check the price Ask for an offer
Check out rentalPoint offers Check distributors
  • MOTORIZED ZOOM
    MOTORIZED ZOOM
  • XLR 5-pin
    XLR 5-pin
  • XLR 3-pin
    XLR 3-pin
  • TILT
    TILT
  • STEEL
    STEEL
  • PowerCON
    PowerCON
  • LED (RGBW)
    LED (RGBW)
  • BLACK
    BLACK
  • AC
    AC
  • ABS
    ABS
  • MOTORIZED ZOOM
    MOTORIZED ZOOM
  • XLR 5-pin
    XLR 5-pin
  • XLR 3-pin
    XLR 3-pin
  • TILT
    TILT
  • STEEL
    STEEL
  • PowerCON
    PowerCON
  • LED (RGBW)
    LED (RGBW)
  • BLACK
    BLACK
  • AC
    AC
  • ABS
    ABS
  • MOTORIZED ZOOM
    MOTORIZED ZOOM
  • XLR 5-pin
    XLR 5-pin
  • XLR 3-pin
    XLR 3-pin
  • TILT
    TILT
  • STEEL
    STEEL
  • PowerCON
    PowerCON
  • LED (RGBW)
    LED (RGBW)
  • BLACK
    BLACK
  • AC
    AC
  • ABS
    ABS
  • MOTORIZED ZOOM
    MOTORIZED ZOOM
  • XLR 5-pin
    XLR 5-pin
  • XLR 3-pin
    XLR 3-pin
  • TILT
    TILT
  • STEEL
    STEEL
  • PowerCON
    PowerCON
  • LED (RGBW)
    LED (RGBW)
  • BLACK
    BLACK
  • AC
    AC
  • ABS
    ABS
  • MOTORIZED ZOOM
    MOTORIZED ZOOM
  • XLR 5-pin
    XLR 5-pin
  • XLR 3-pin
    XLR 3-pin
  • TILT
    TILT
  • STEEL
    STEEL
  • PowerCON
    PowerCON
  • LED (RGBW)
    LED (RGBW)
  • BLACK
    BLACK
  • AC
    AC
  • ABS
    ABS

Product description

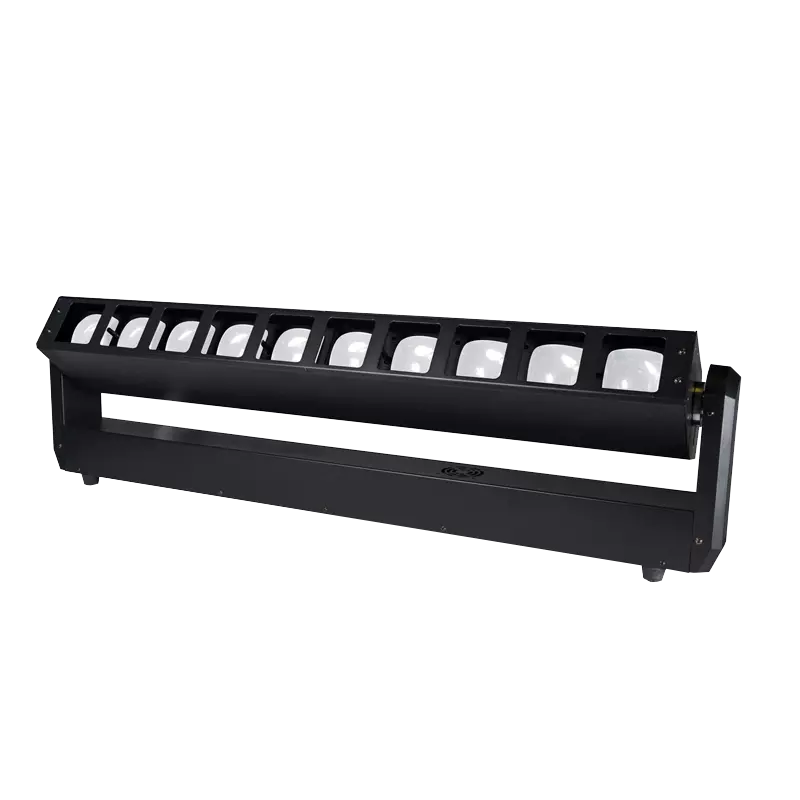

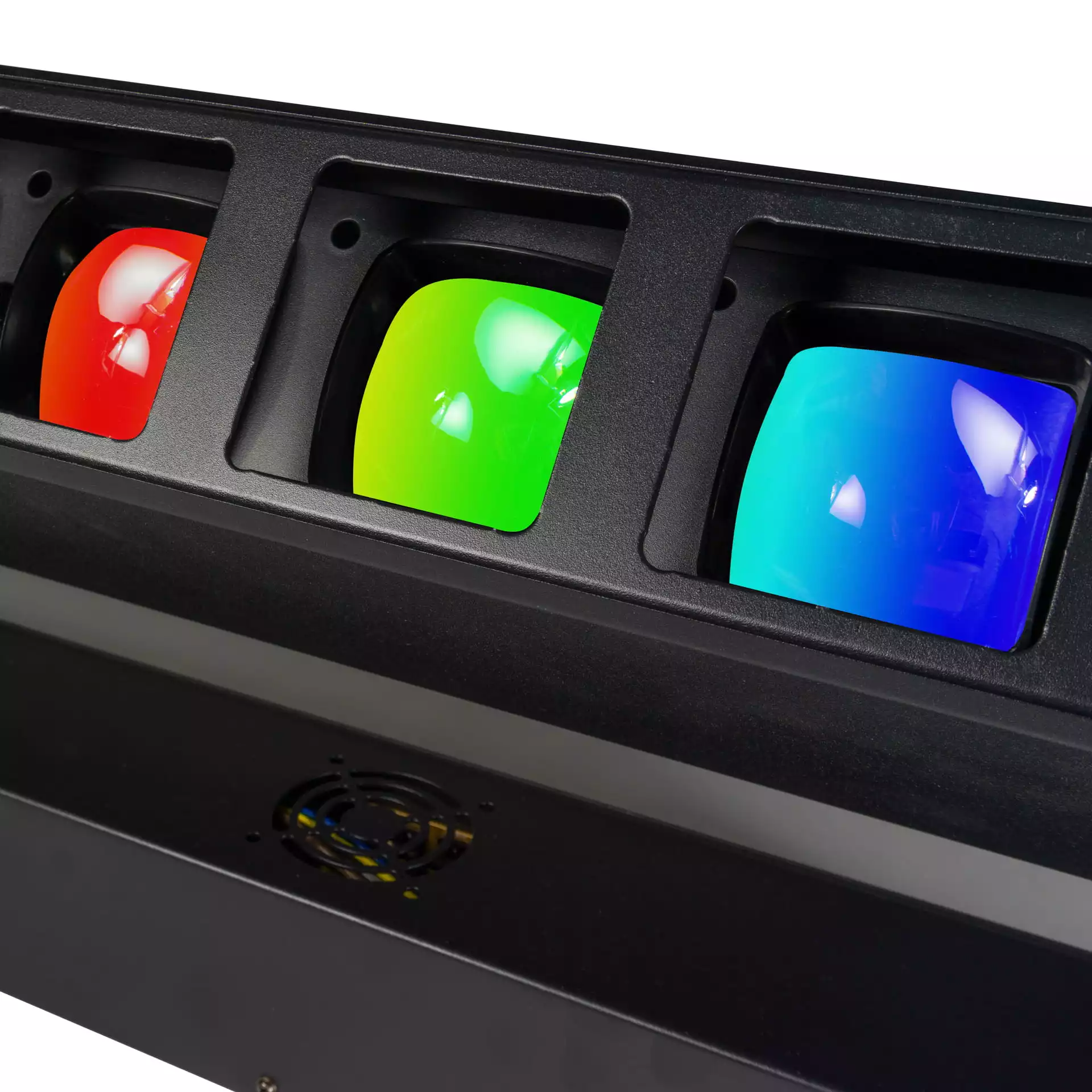

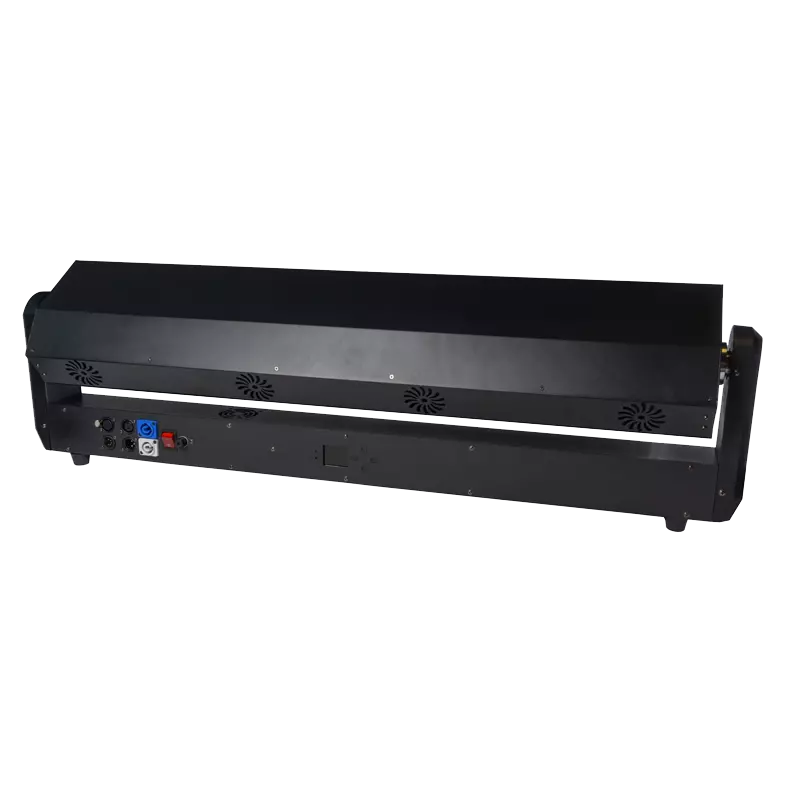

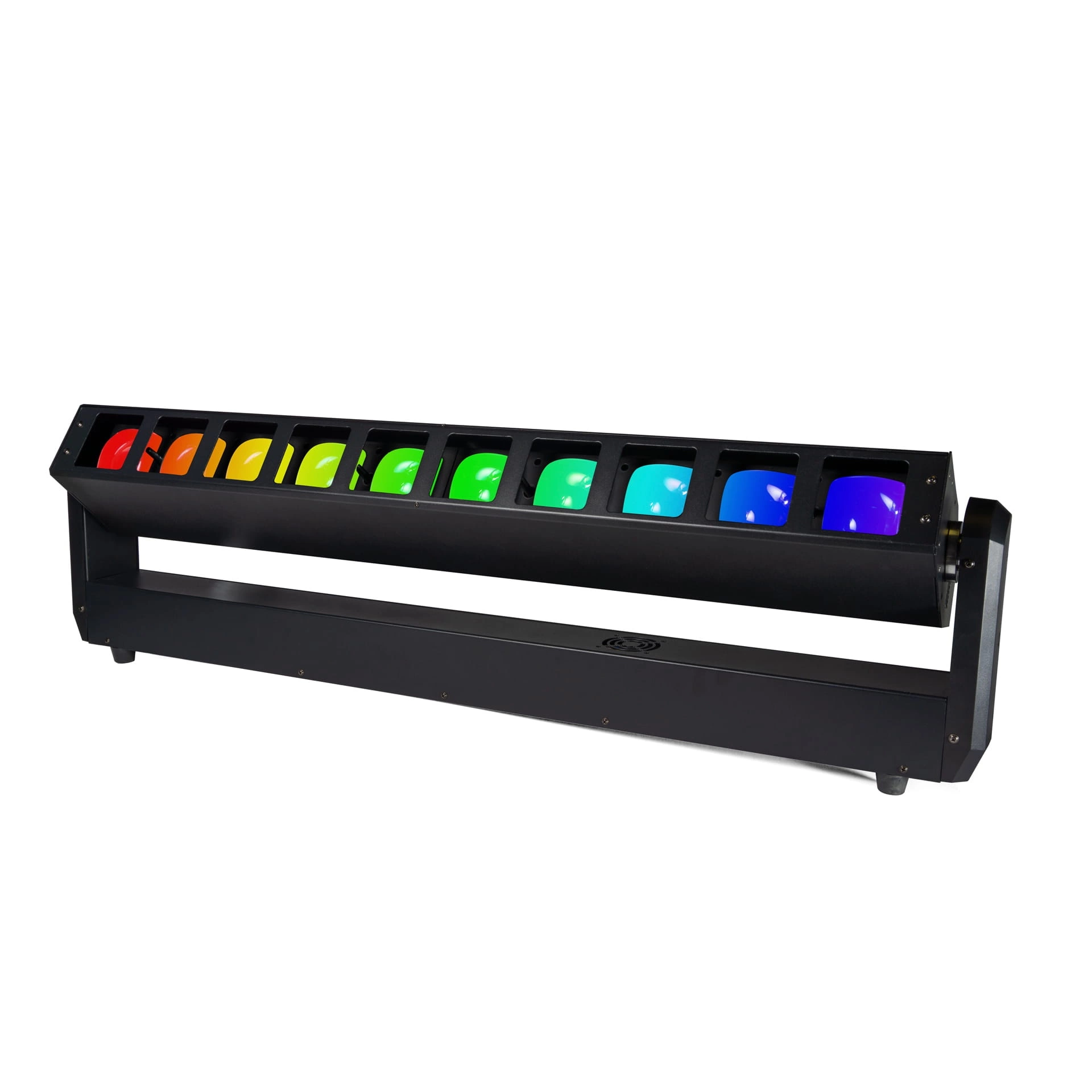

M-BAR LED 1040 ZOOM is an advanced lighting device that combines versatility, efficiency and modern technological solutions. Equipped with 10 RGBW diodes with a power of 40W, it generates intense and dynamic lighting effects. The device offers the possibility of adjusting the lighting angle in the range from 4.5° to 45°, which makes it extremely universal. The TILT movement range of 270° and a variety of operating modes, such as homogeneous RGBW, color macros and rainbow effect, guarantee creativity in lighting arrangements.
M-BAR LED 1040 ZOOM is controlled using four buttons, which makes it easy to use, and also offers 24 or 60 DMX channels in the DMX 512 standard. IP20 protection and a housing made of steel and ABS prove the solidity of the construction, and active cooling ensures optimal working conditions. The device's volume is only 25 dB when measured from a distance of 1 meter, making it a discreet solution in various scenarios (Measurement: 1m - 50dB / Ambient noise 25dB). M-BAR LED 1040 ZOOM is an excellent choice for professional applications in the lighting industry, ideal for concerts, live events and stage installations. Thanks to its innovative functions and high quality of workmanship, it will meet the expectations of even the most demanding users.

Specification M-BAR LED 1040 ZOOM

Power Source (AC)
Supply voltage 100-240V
Power consumption 500W
Power frequency 50-60Hz
Light source
Type LED (RGBW)
Quantity 10
Power (W) 40
Number of control sections 10
Color temperature 7000K
Color Rendering Index (CRI) 85
Color Mixing System
RGBW 8 bit
Dimming
Dimming 8 bit
ZOOM
ZOOM Motorized (8 bit)
Beam angle
Beam angle Zmienny (4,5-45 ⁰)
CTO
CTO smooth
Strobe - frequency
Frequency 1-20Hz
Pulsating Yes
Random Yes
DMX control
Number of modes 2
Number of channels 24-60
Movement
Range TILT 270 ⁰
Regulation 16 bit
Modes of operation
DMX512 Yes
Sound control Yes
Auto control Yes
Master-slave Yes
Built-in program Yes
User Interface
Physical buttons Yes
LCD display Yes

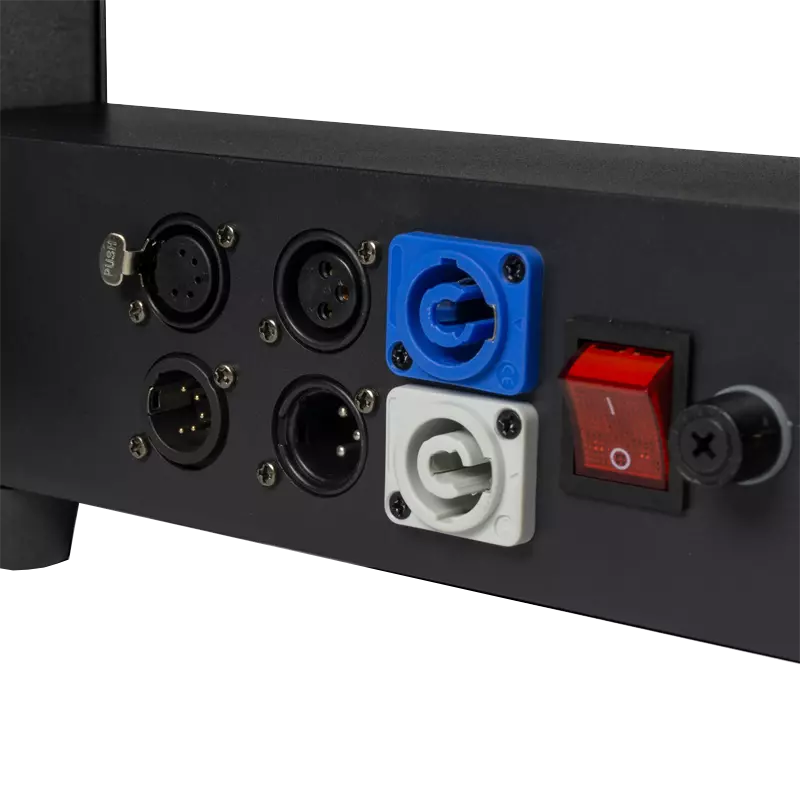

Connectors
AC IN PowerCON
AC OUT PowerCON
DMX IN 3-pin DMX
DMX IN 5-pin DMX
DMX OUT 3-pin DMX
DMX OUT 5-pin DMX
Physical parameters
IP protection level IP20
Housing type Steel
Housing type ABS
Fixing Mounting hole
Blockade (Tilt) No
Housing color Black
Cooling Active
Length [cm] 104
Width [cm] 9
Height [cm] 31,5
Weight [kg] 16,8
Contents of the package
A kind of package Case (F0901934)
Manual Yes

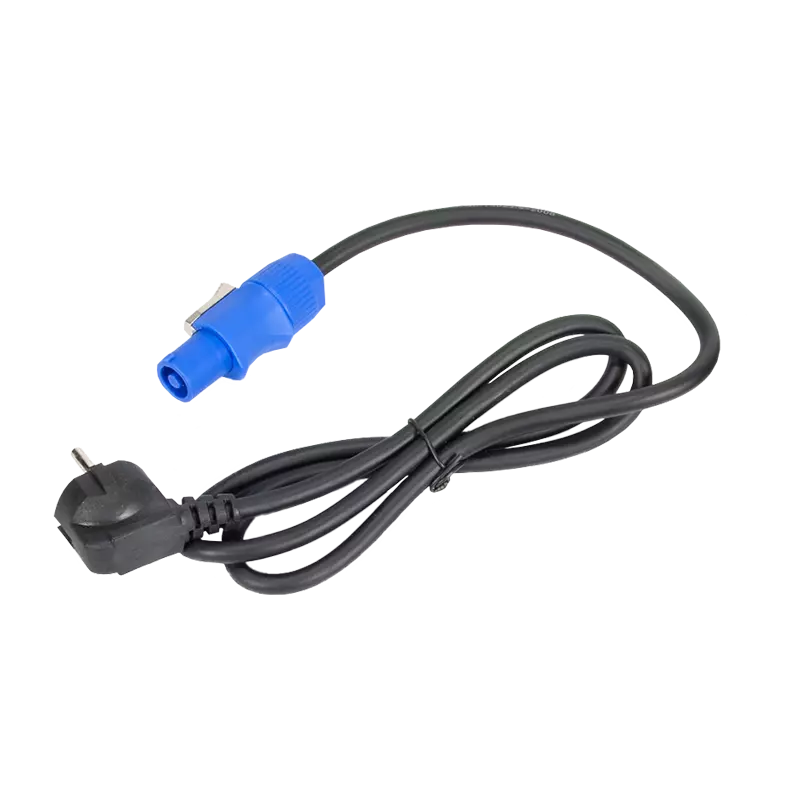

Wiring PowerCON
Device M-BAR LED 1040 ZOOM

Instructions available

Instrukcja PL for M-BAR LED 1040 ZOOM
Instrukcja
Język: PL
Instrukcja EN for M-BAR LED 1040 ZOOM
Manual
Language: EN

To download fixtures from our database, enter your e-mail address. We will send files to the e-mail address you provided. By entering the address, you accept regulamin.

Close Send

Dedicated accessories

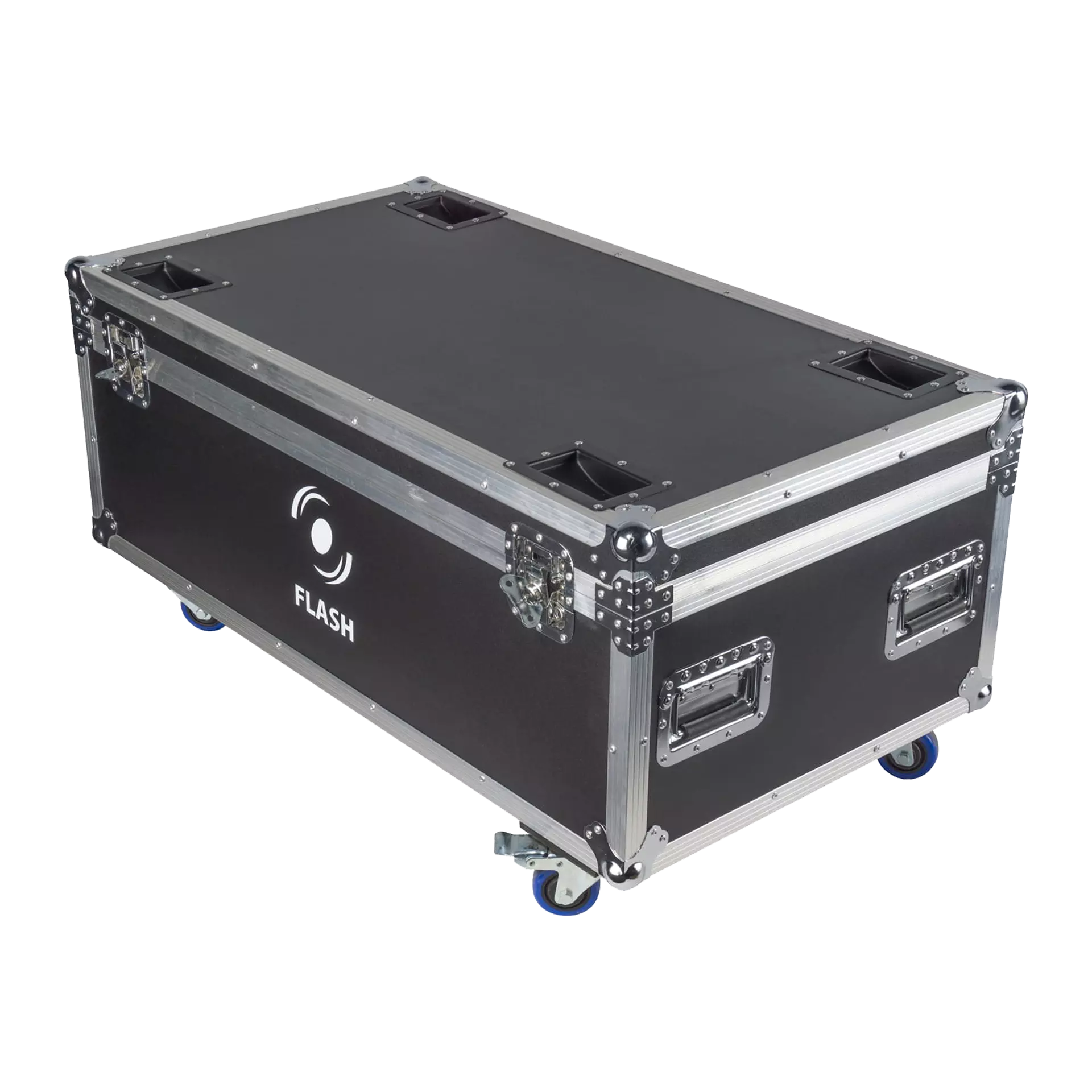

  • CASE FOR 4x M-BAR LED 1040 ZOOM
    CASE FOR 4x M-BAR LED 1040 ZOOM
    Plywood ALUMINUM
    See more

Recommended products

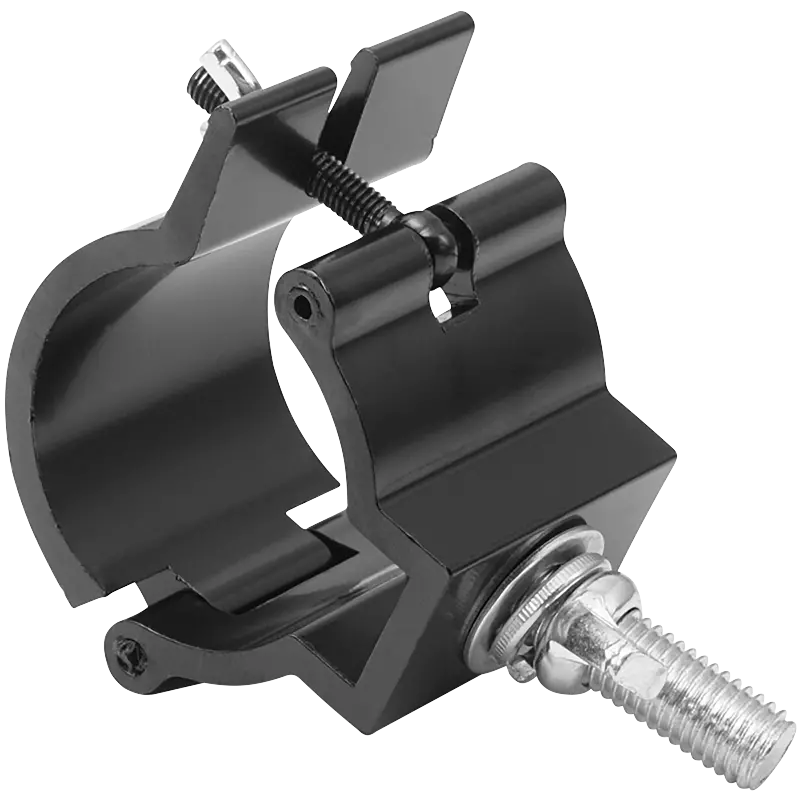

  • Clamp ALU Black 100kg
