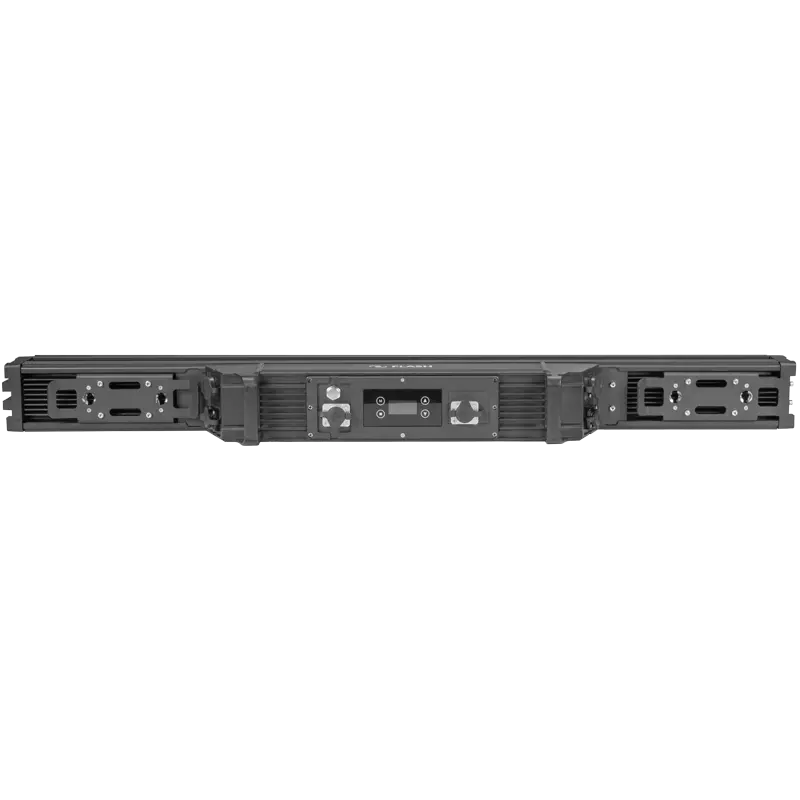

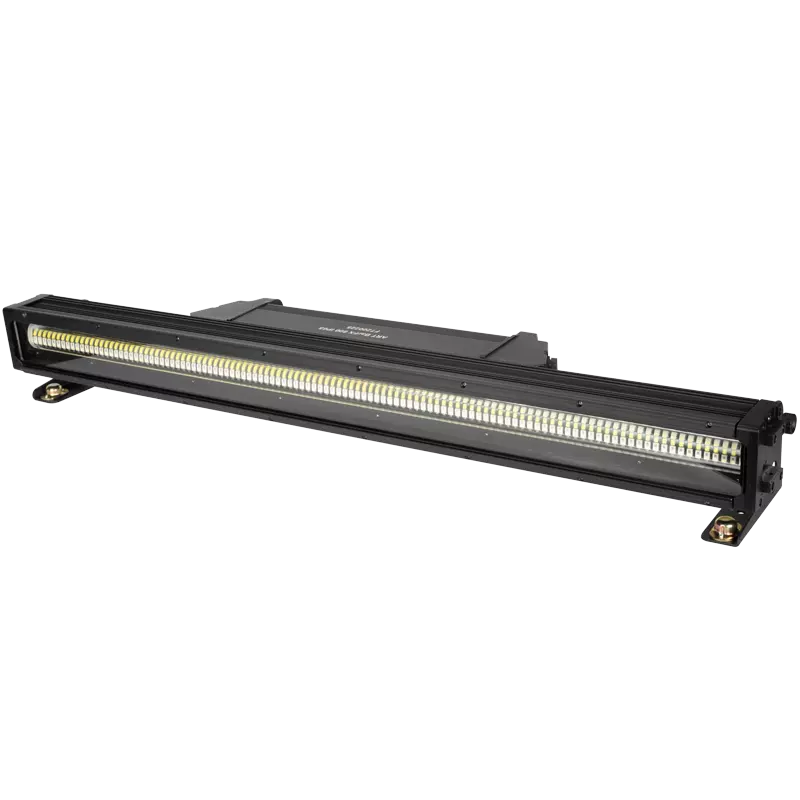

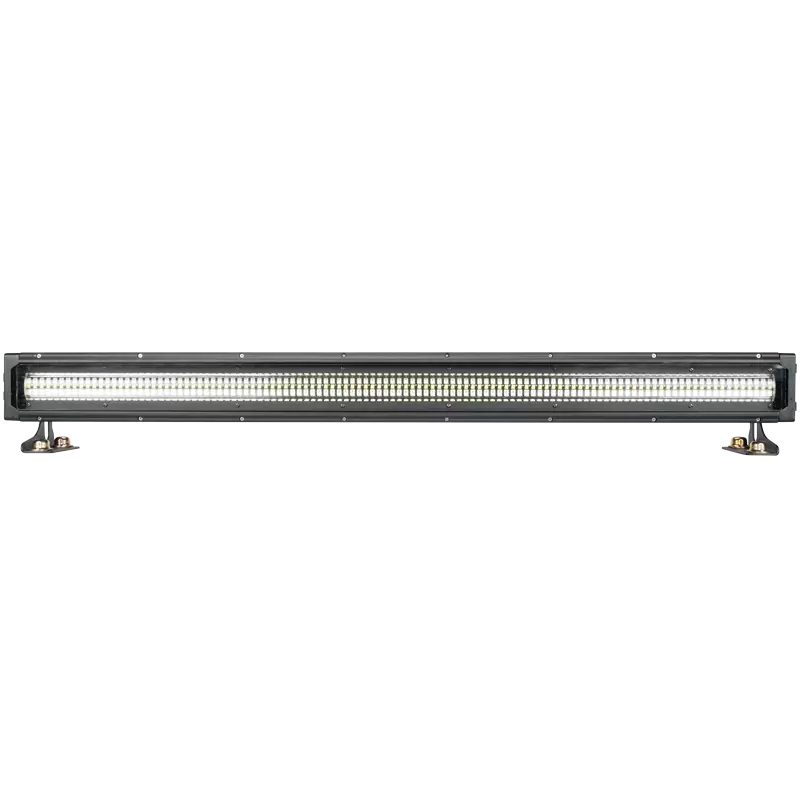

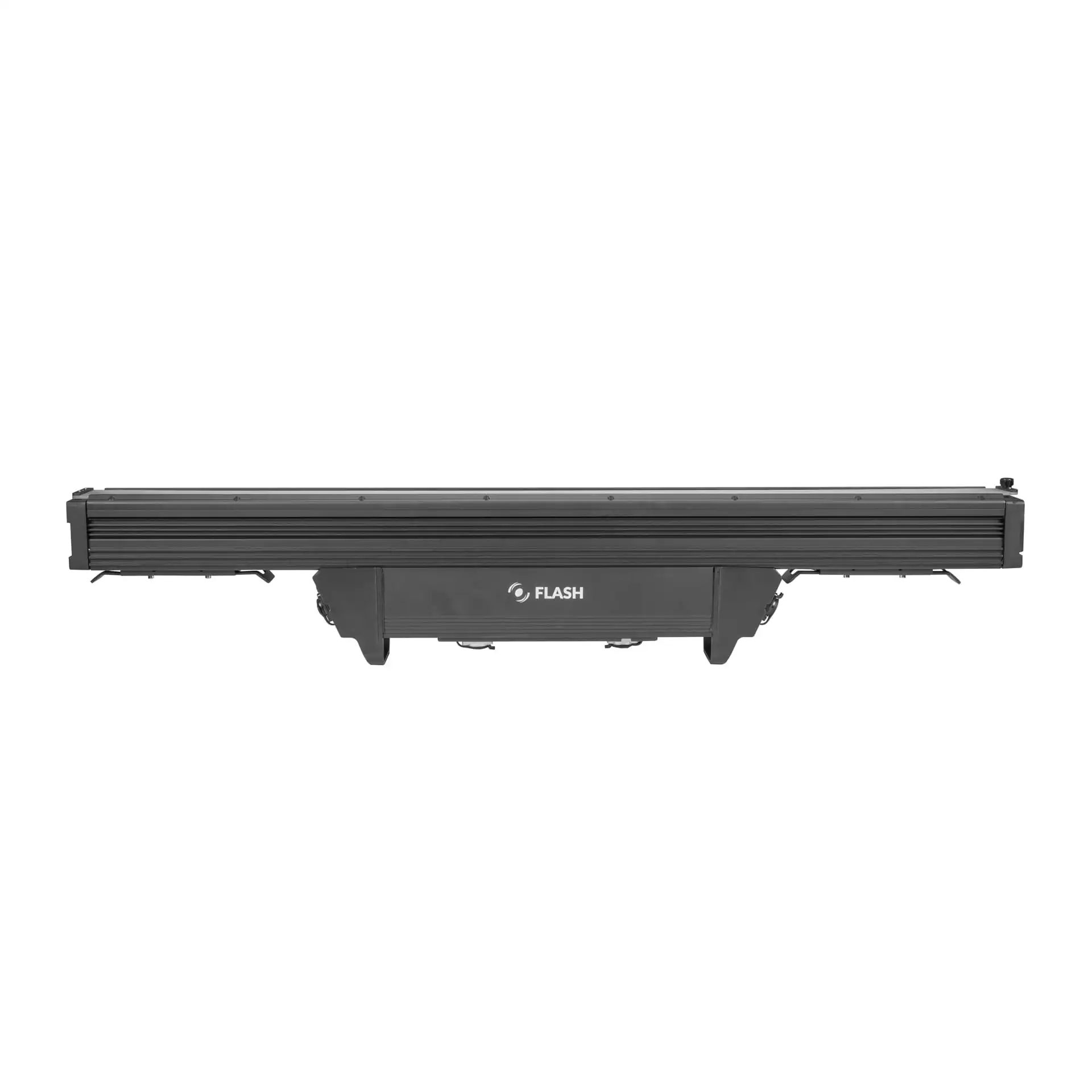

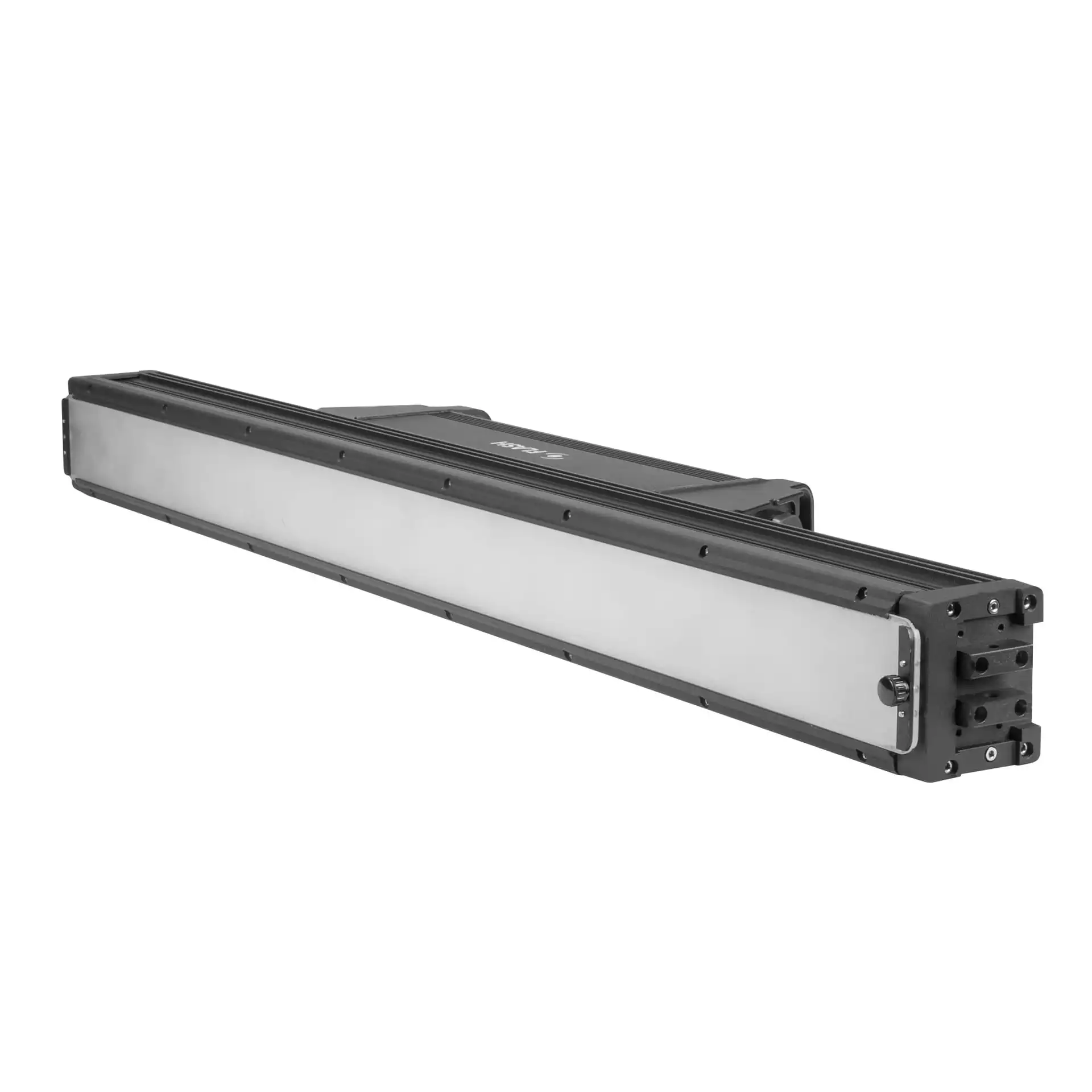

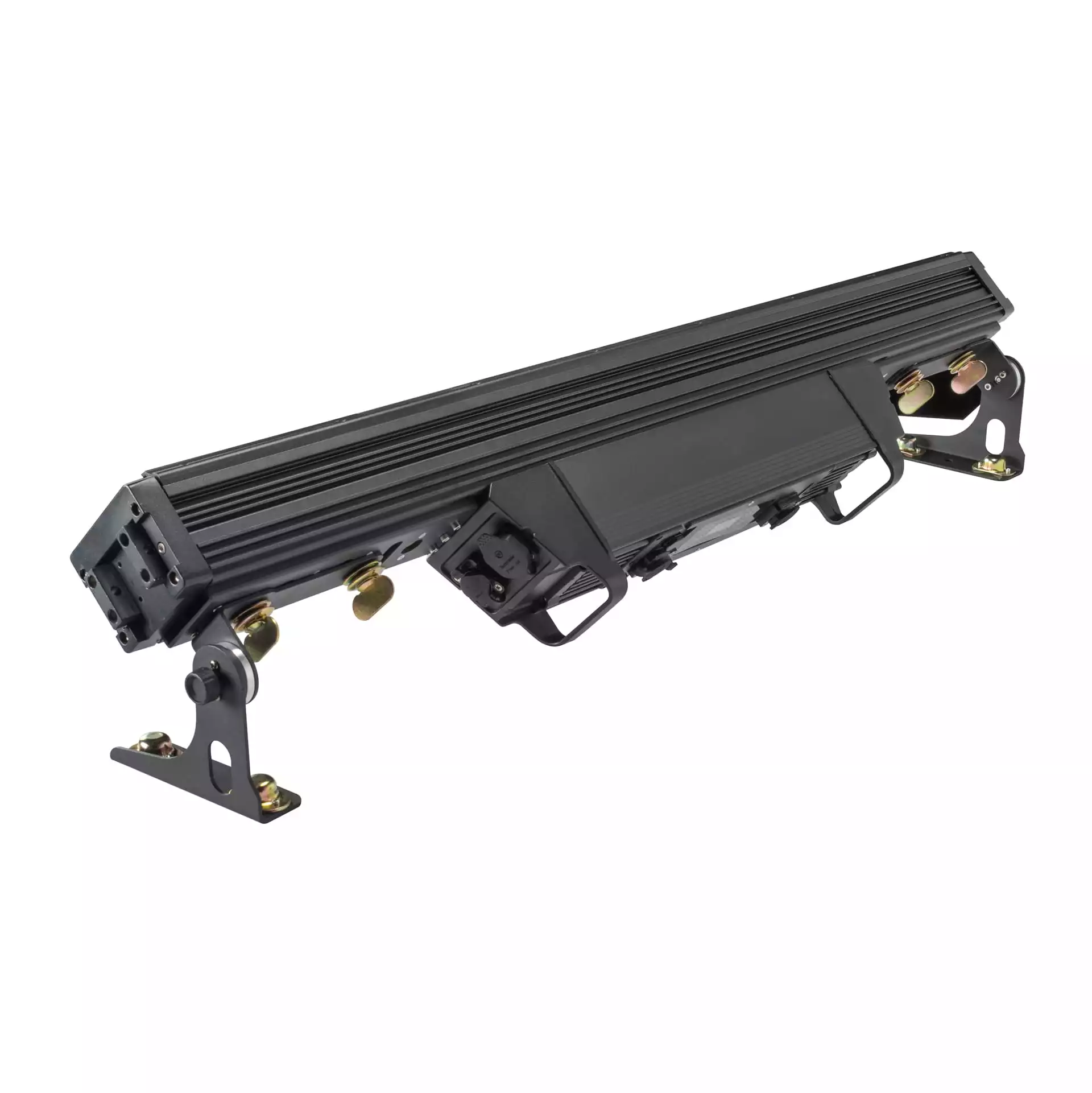

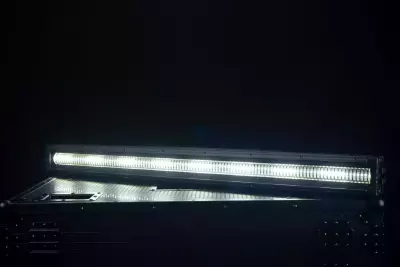

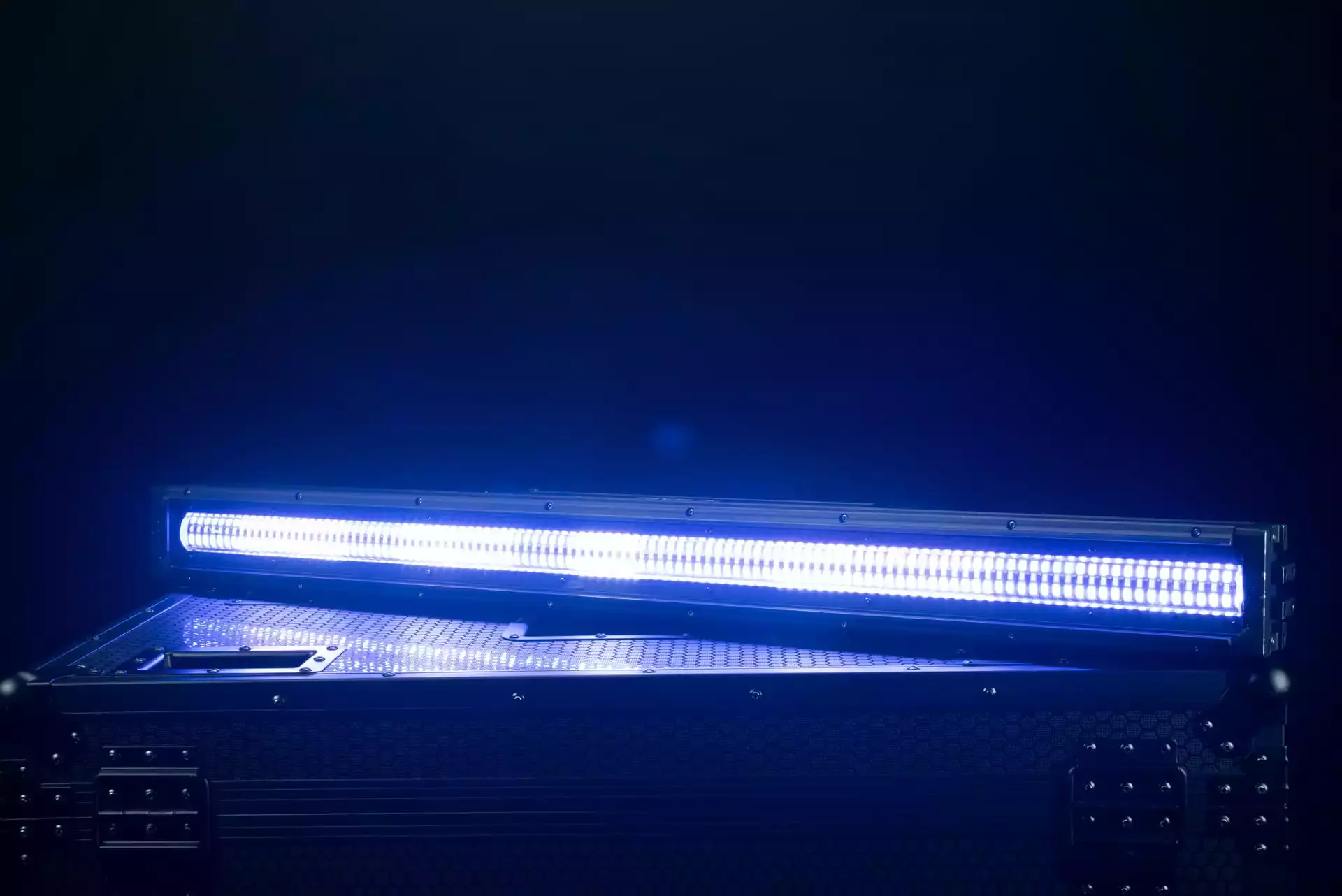

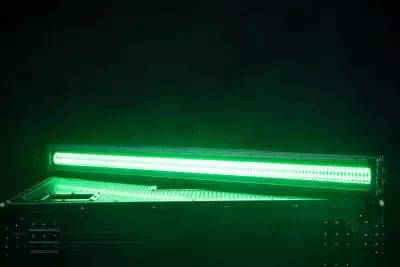

BarFX 800 IP65
Main informations:
» Product from category: Reflectors LED / Reflectors LED BAR
» Product series: ART
Product codes:
» Product code: F7200225
ART
Check series

Log in, check the price Ask for an offer
Check out rentalPoint offers Check distributors
See in gallery: TRANCEFORMATIONS 2024 Concert tours Photo report Myslovitz - Love in the times of pop culture Concert tours Męskie Granie - 15-ta edycja Concert tours Męskie Granie 2024 Concert tours
  • DMX512
    DMX512
  • BLACK
    BLACK
  • PASSIVE COOLING
    PASSIVE COOLING
  • AUTO CONTROL
    AUTO CONTROL
  • ART-NET
    ART-NET
  • ALUMINUM
    ALUMINUM
  • ABS
    ABS
  • ETHERCON
    ETHERCON
  • XLR 3-pin
    XLR 3-pin
  • TrueCon IP65
    TrueCon IP65
  • RDM
    RDM
  • ANY FROM THE RAL PALETTE
    ANY FROM THE RAL PALETTE
  • DMX512
    DMX512
  • BLACK
    BLACK
  • PASSIVE COOLING
    PASSIVE COOLING
  • AUTO CONTROL
    AUTO CONTROL
  • ART-NET
    ART-NET
  • ALUMINUM
    ALUMINUM
  • ABS
    ABS
  • ETHERCON
    ETHERCON
  • XLR 3-pin
    XLR 3-pin
  • TrueCon IP65
    TrueCon IP65
  • RDM
    RDM
  • ANY FROM THE RAL PALETTE
    ANY FROM THE RAL PALETTE
  • DMX512
    DMX512
  • BLACK
    BLACK
  • PASSIVE COOLING
    PASSIVE COOLING
  • AUTO CONTROL
    AUTO CONTROL
  • ART-NET
    ART-NET
  • ALUMINUM
    ALUMINUM
  • ABS
    ABS
  • ETHERCON
    ETHERCON
  • XLR 3-pin
    XLR 3-pin
  • TrueCon IP65
    TrueCon IP65
  • RDM
    RDM
  • ANY FROM THE RAL PALETTE
    ANY FROM THE RAL PALETTE
  • DMX512
    DMX512
  • BLACK
    BLACK
  • PASSIVE COOLING
    PASSIVE COOLING
  • AUTO CONTROL
    AUTO CONTROL
  • ART-NET
    ART-NET
  • ALUMINUM
    ALUMINUM
  • ABS
    ABS
  • ETHERCON
    ETHERCON
  • XLR 3-pin
    XLR 3-pin
  • TrueCon IP65
    TrueCon IP65
  • RDM
    RDM
  • ANY FROM THE RAL PALETTE
    ANY FROM THE RAL PALETTE
  • DMX512
    DMX512
  • BLACK
    BLACK
  • PASSIVE COOLING
    PASSIVE COOLING
  • AUTO CONTROL
    AUTO CONTROL
flash
fixtures:
  • Obsidian
  • Avolites Titan
  • grandMA3
  • QLC+
  • grandMA2
  • dot2
  • Jands
  • Capture
  • MyDMX
  • Vista
  • Obsidian
  • Avolites Titan
  • grandMA3
  • QLC+
  • grandMA2
  • dot2
  • Jands
  • Capture
  • MyDMX
  • Vista
  • Obsidian
  • Avolites Titan
  • grandMA3
  • QLC+
  • grandMA2
  • dot2
  • Jands
  • Capture
  • MyDMX
  • Vista
  • Obsidian
  • Avolites Titan
  • grandMA3
  • QLC+

To download fixtures from our database, enter your e-mail address. We will send the files to the e-mail address you provided. By entering the address, you accept statute.

Download now

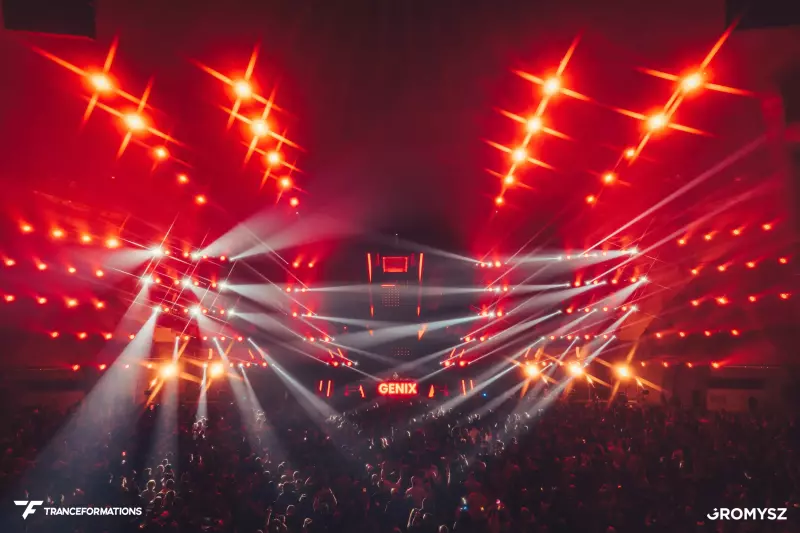

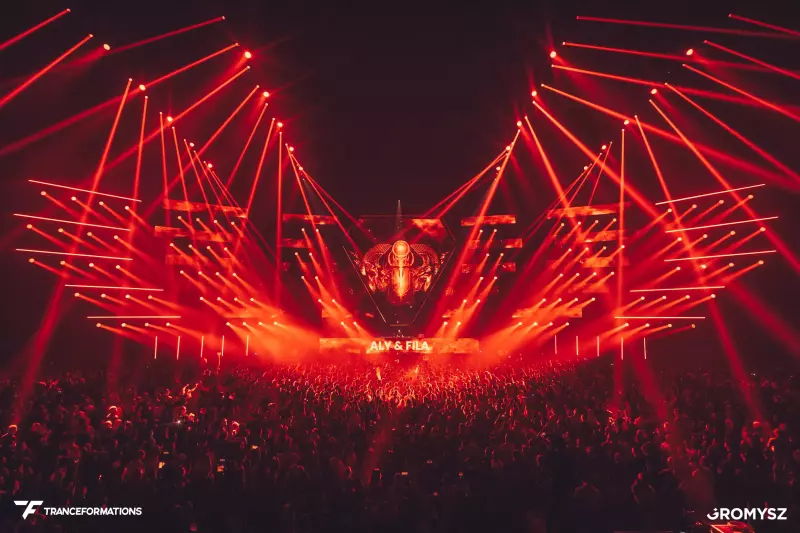

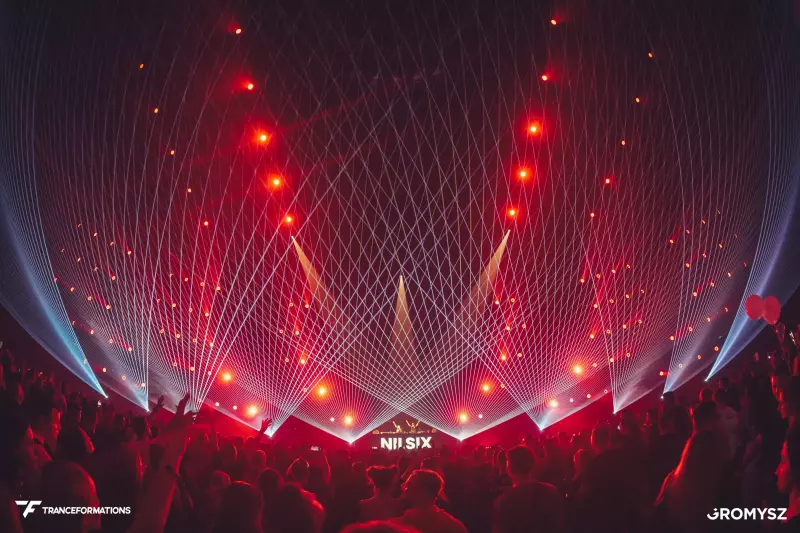

  • TRANCEFORMATIONS 2024 TRANCEFORMATIONS 2024
  • TRANCEFORMATIONS 2024 TRANCEFORMATIONS 2024

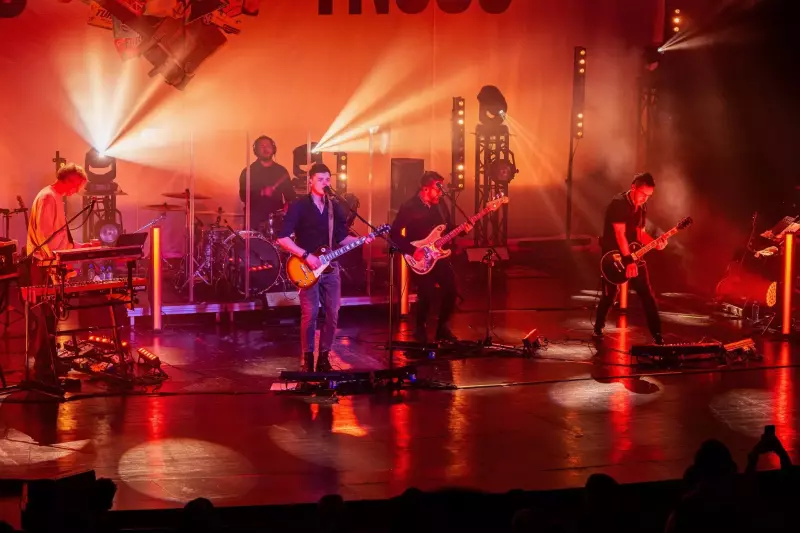

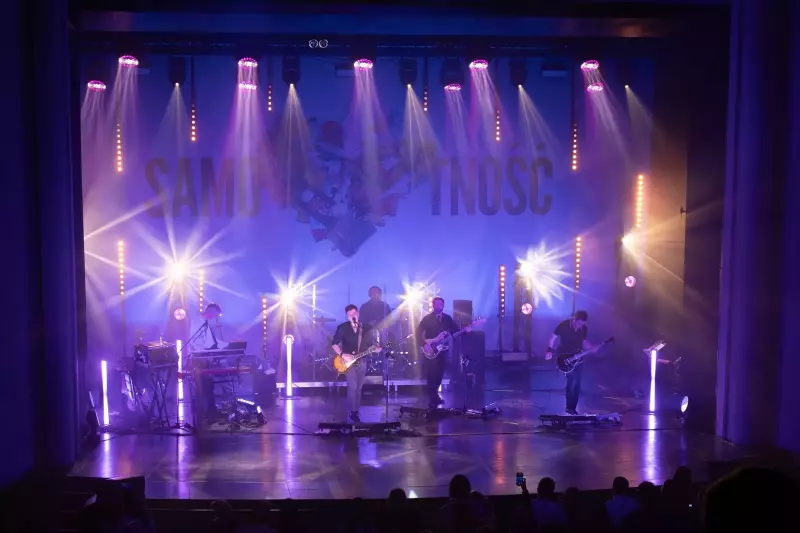

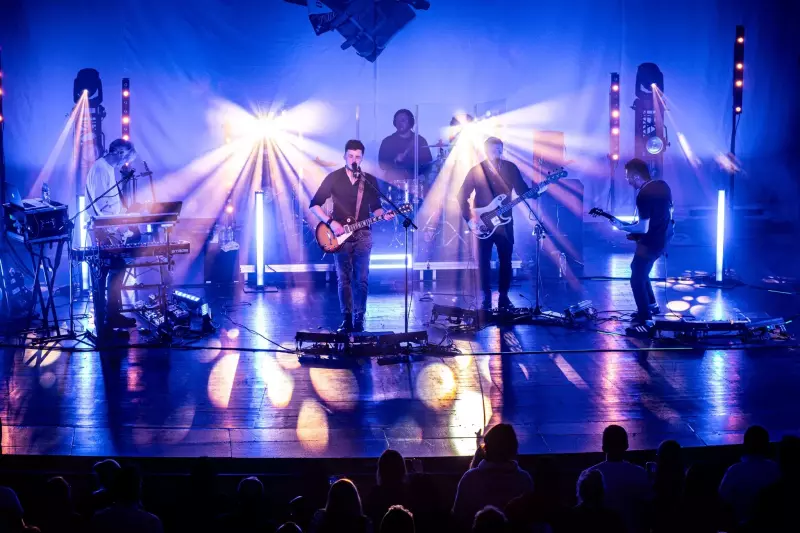

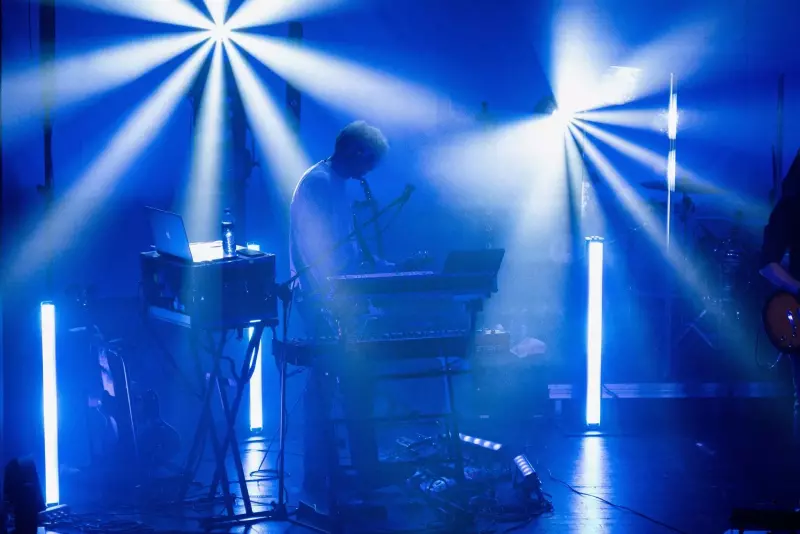

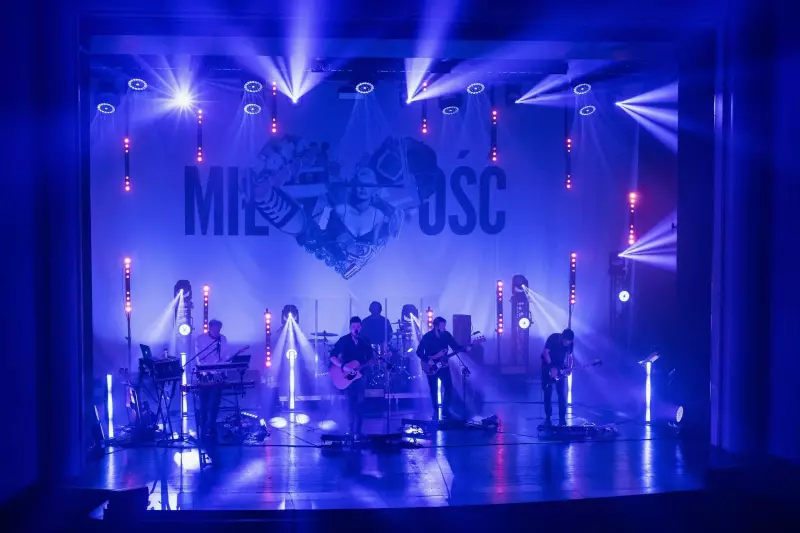

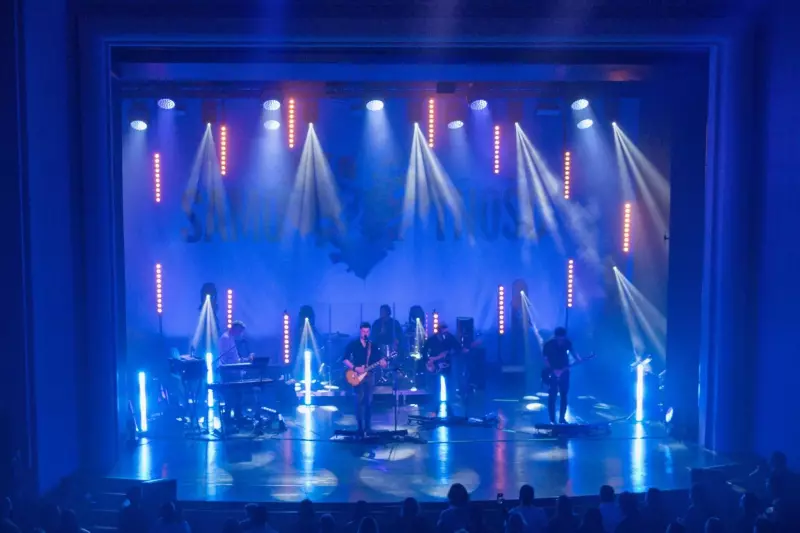

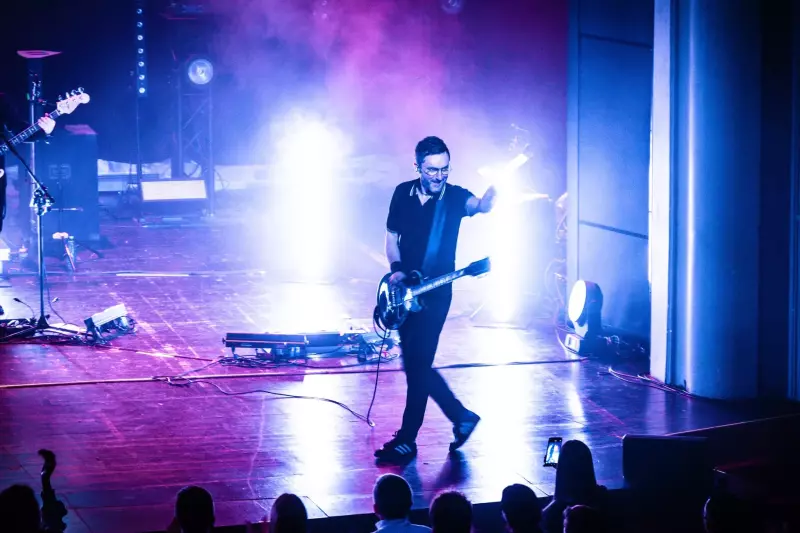

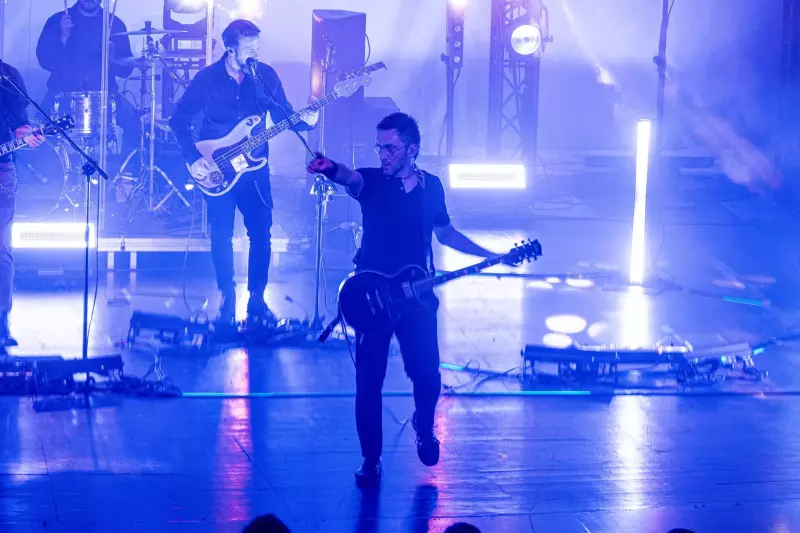

  • Photo report Myslovitz - Love in the times of pop culture Photo report Myslovitz - Love in the times of pop culture
  • Photo report Myslovitz - Love in the times of pop culture Photo report Myslovitz - Love in the times of pop culture
  • Photo report Myslovitz - Love in the times of pop culture Photo report Myslovitz - Love in the times of pop culture
  • Photo report Myslovitz - Love in the times of pop culture Photo report Myslovitz - Love in the times of pop culture

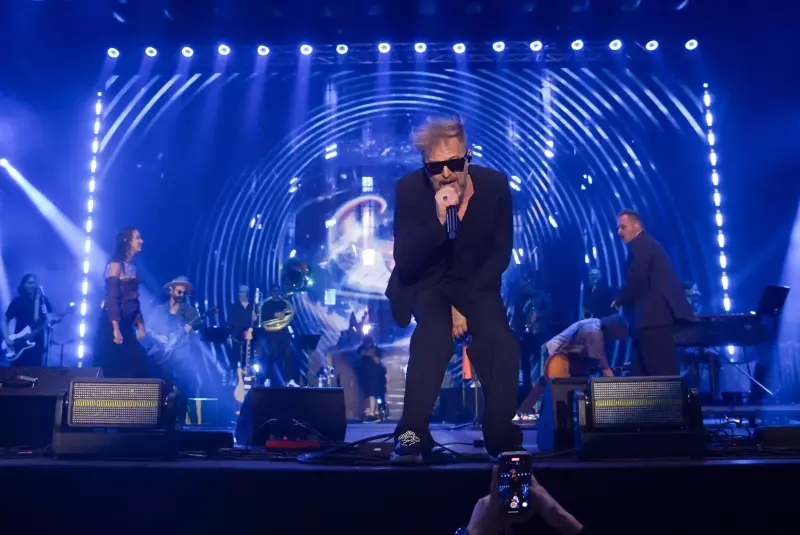

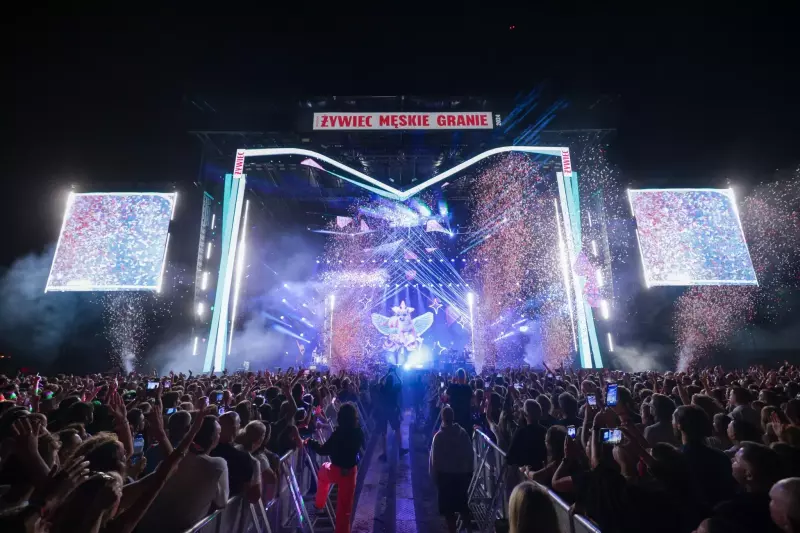

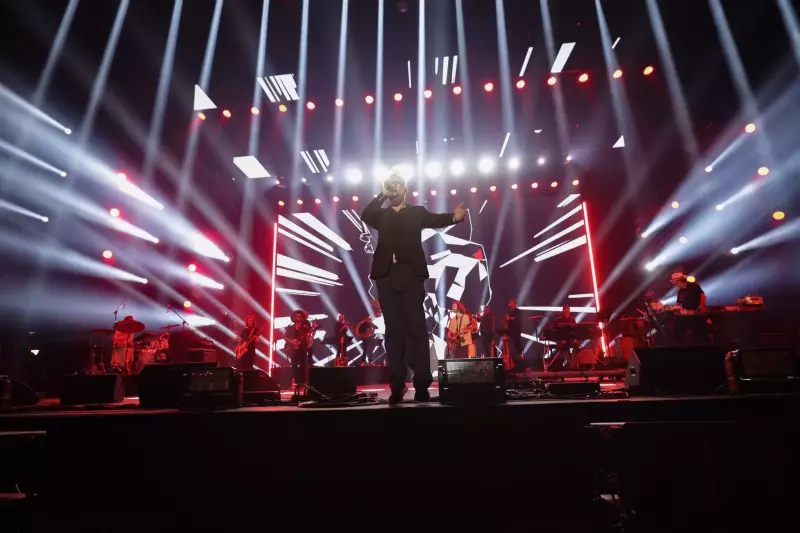

  • Męskie Granie 2024 Męskie Granie 2024
  • Męskie Granie 2024 Męskie Granie 2024
  • Męskie Granie 2024 Męskie Granie 2024
  • Męskie Granie 2024 Męskie Granie 2024
  • Męskie Granie 2024 Męskie Granie 2024

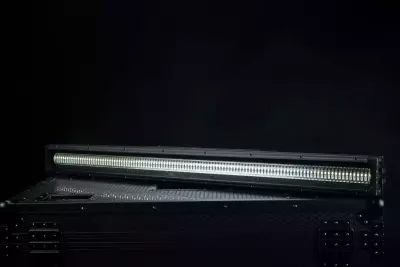

Product description

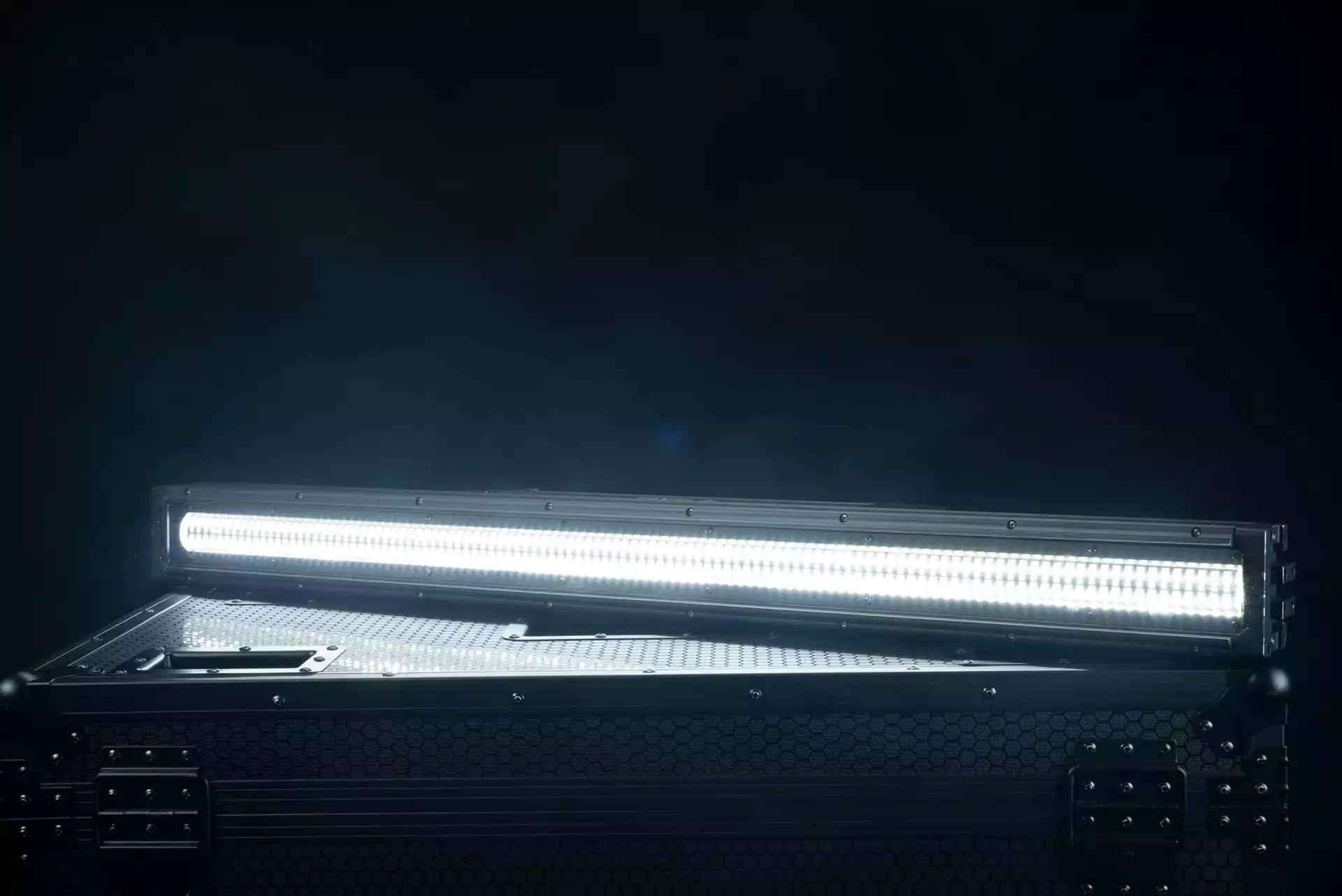

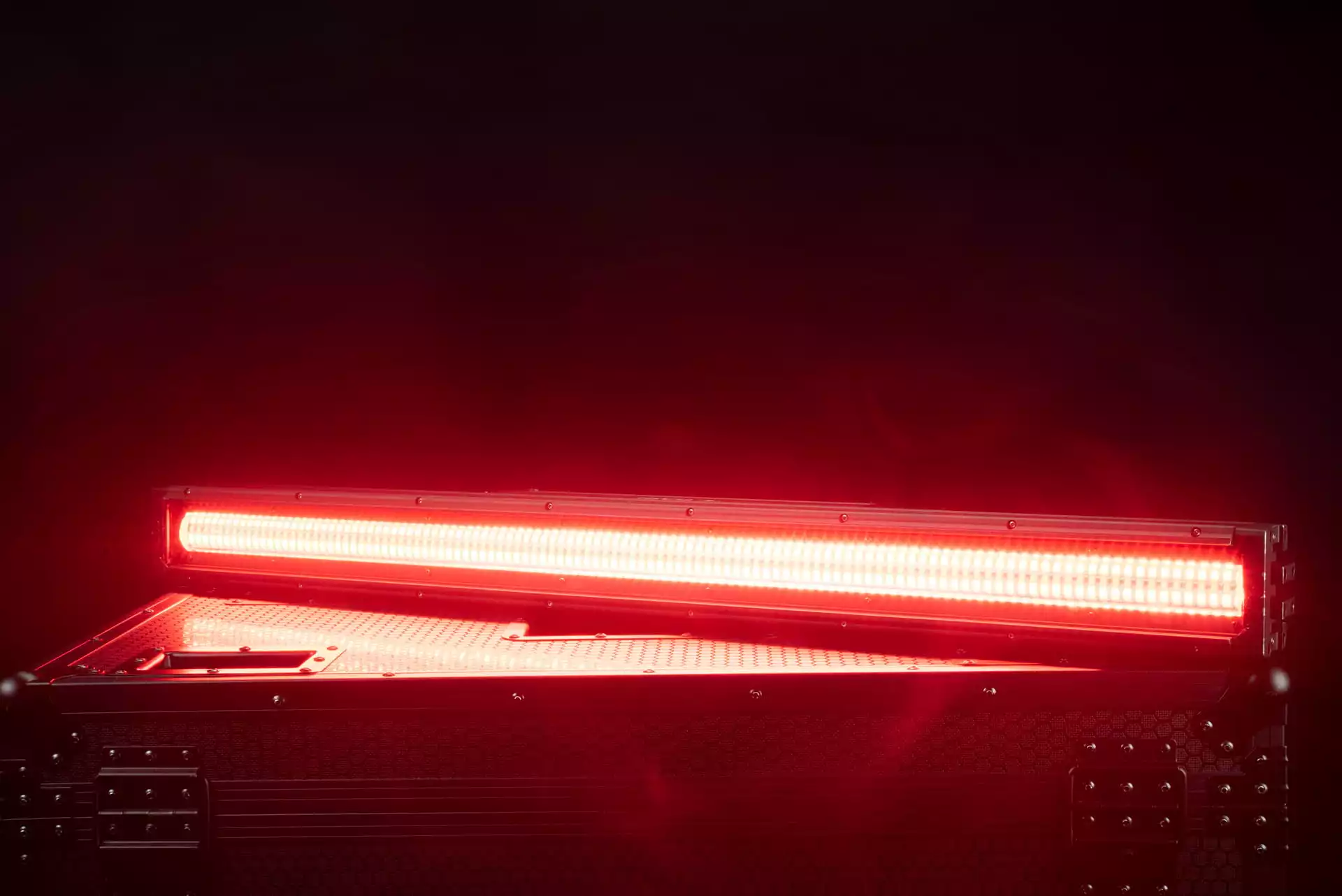

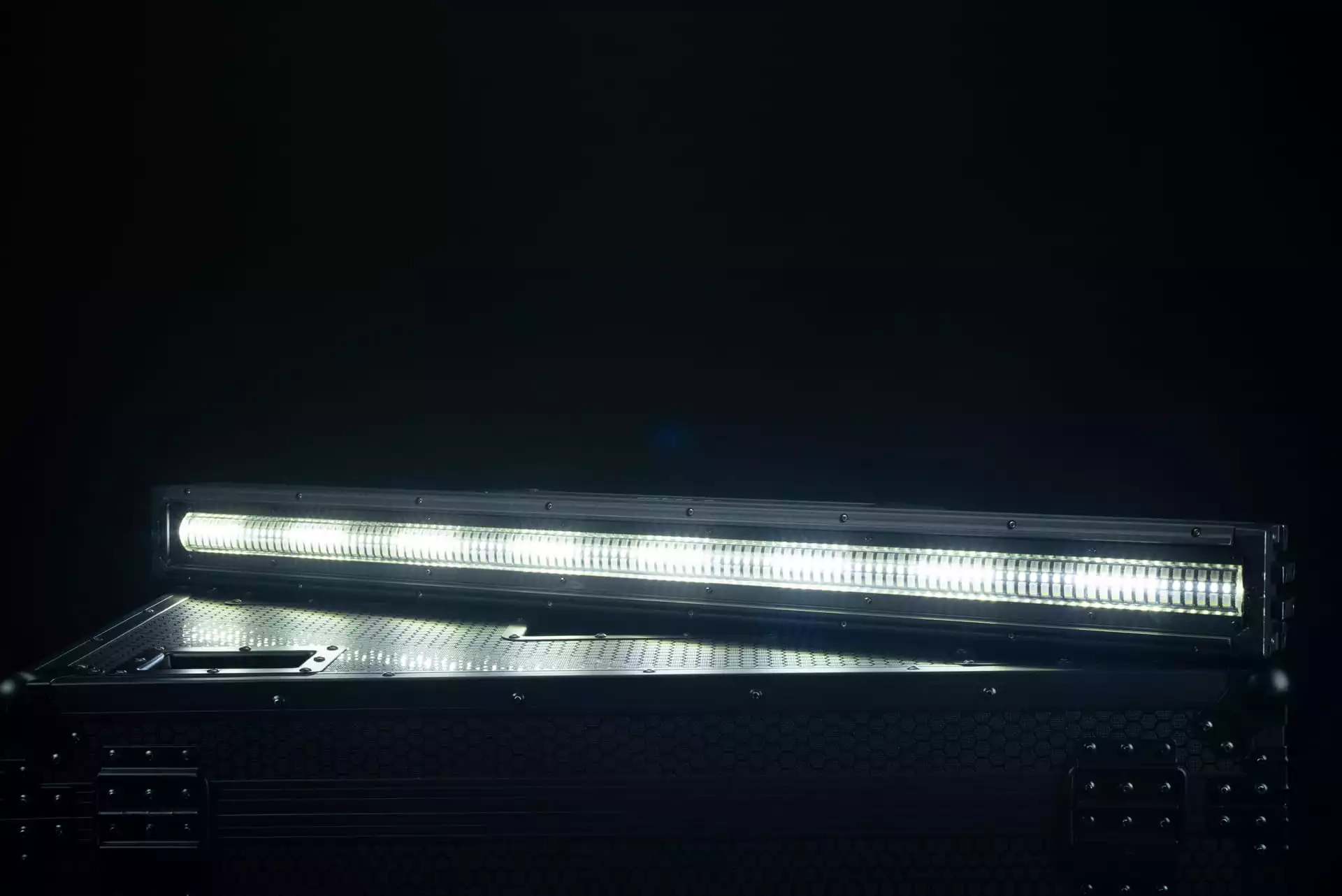

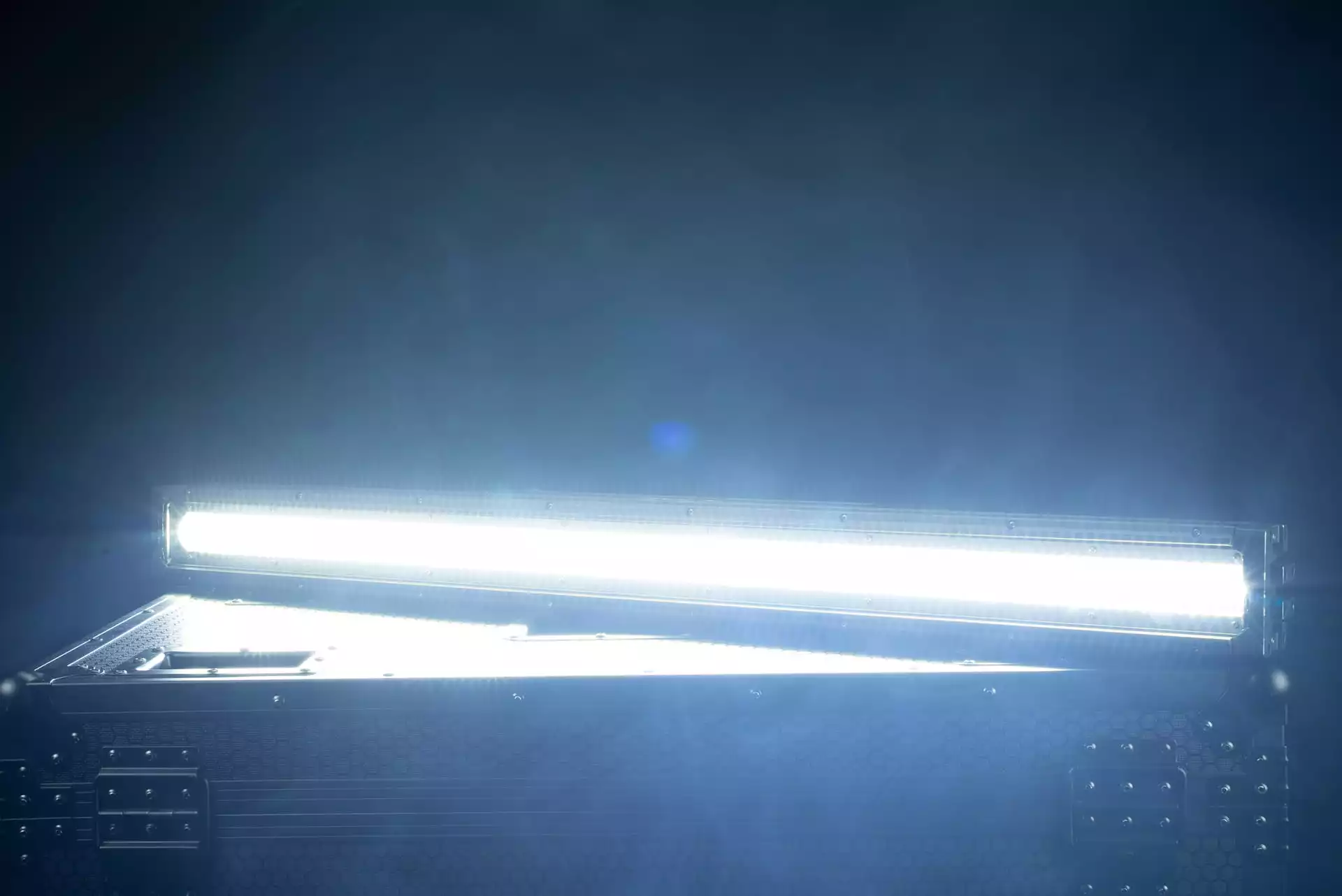

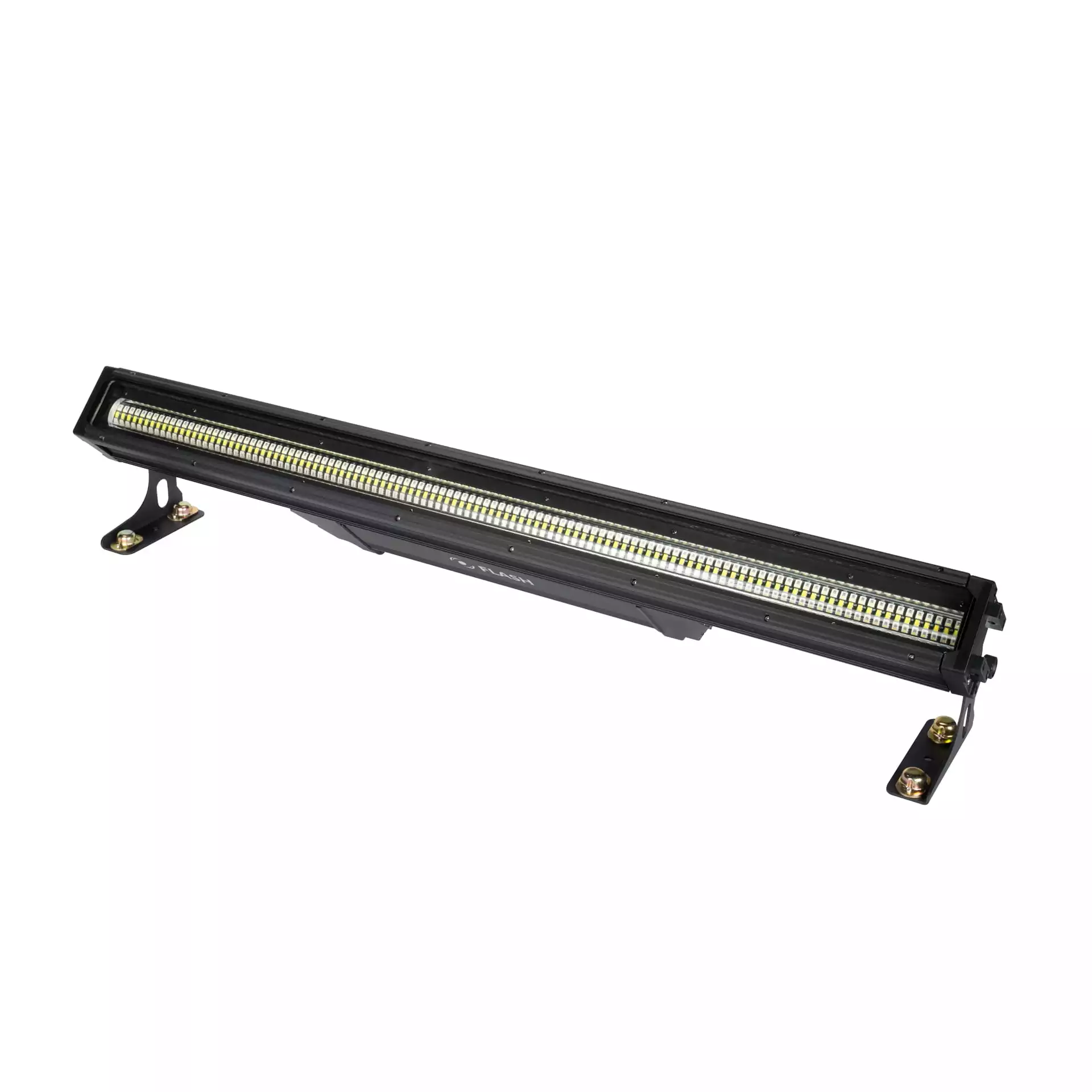

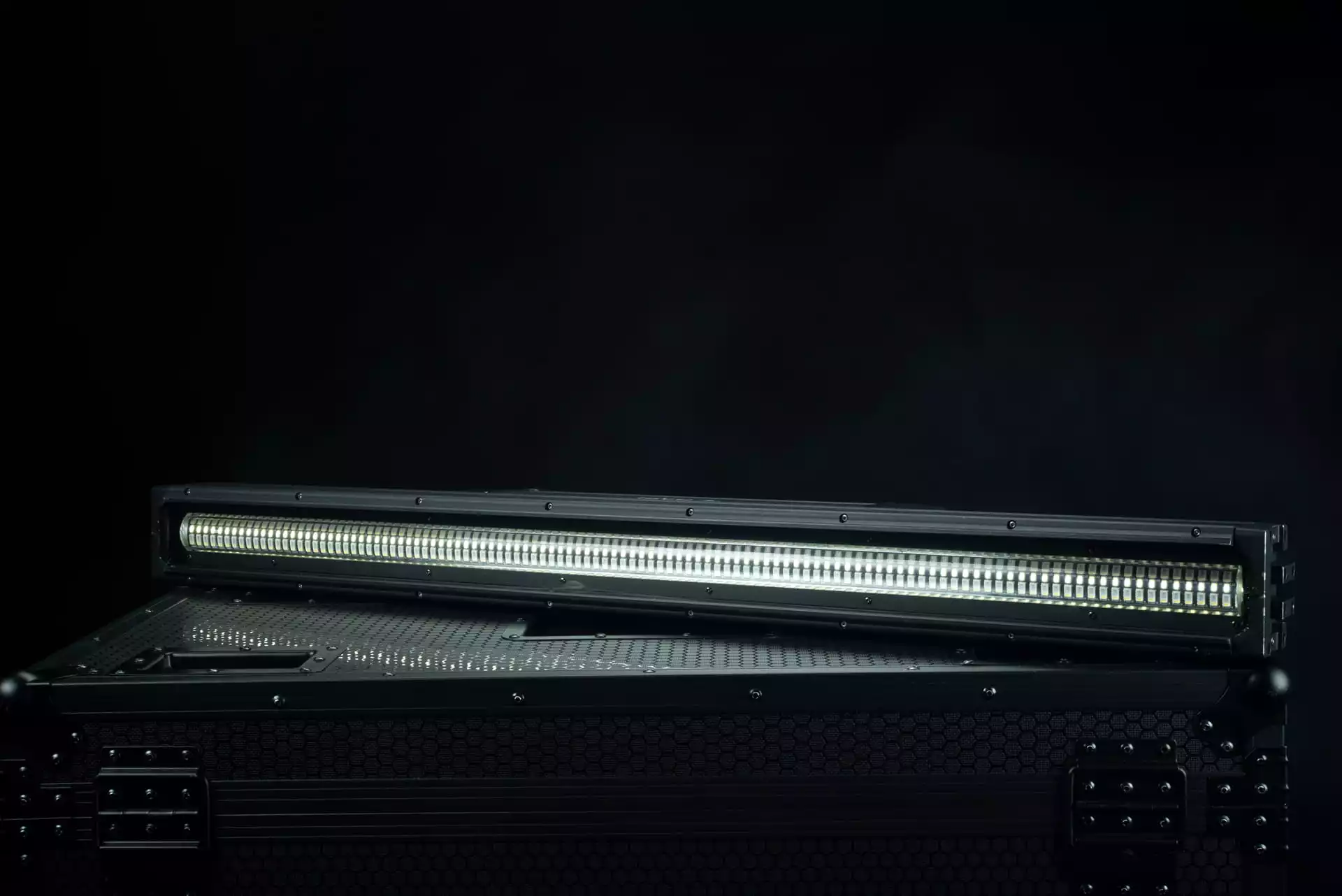

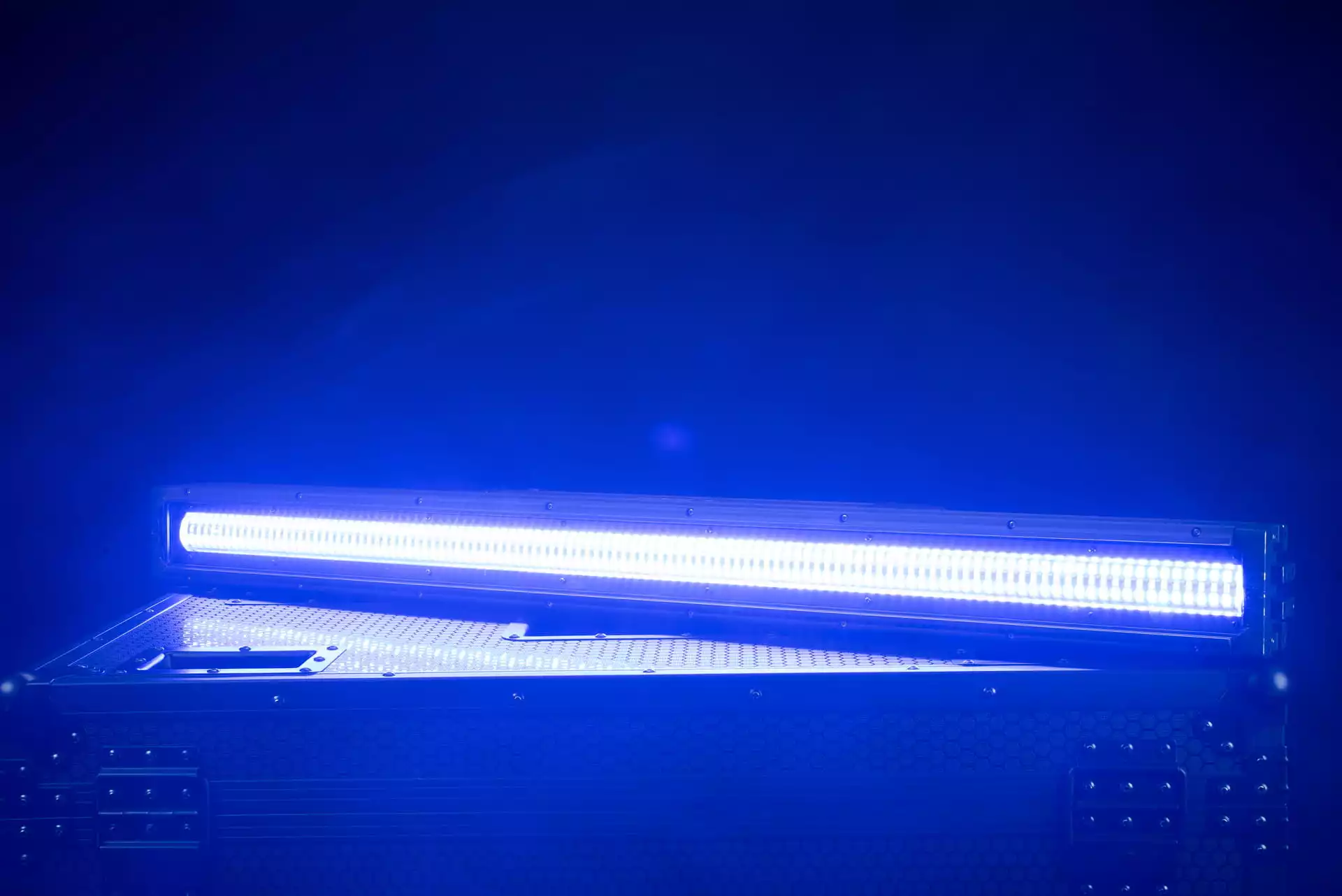

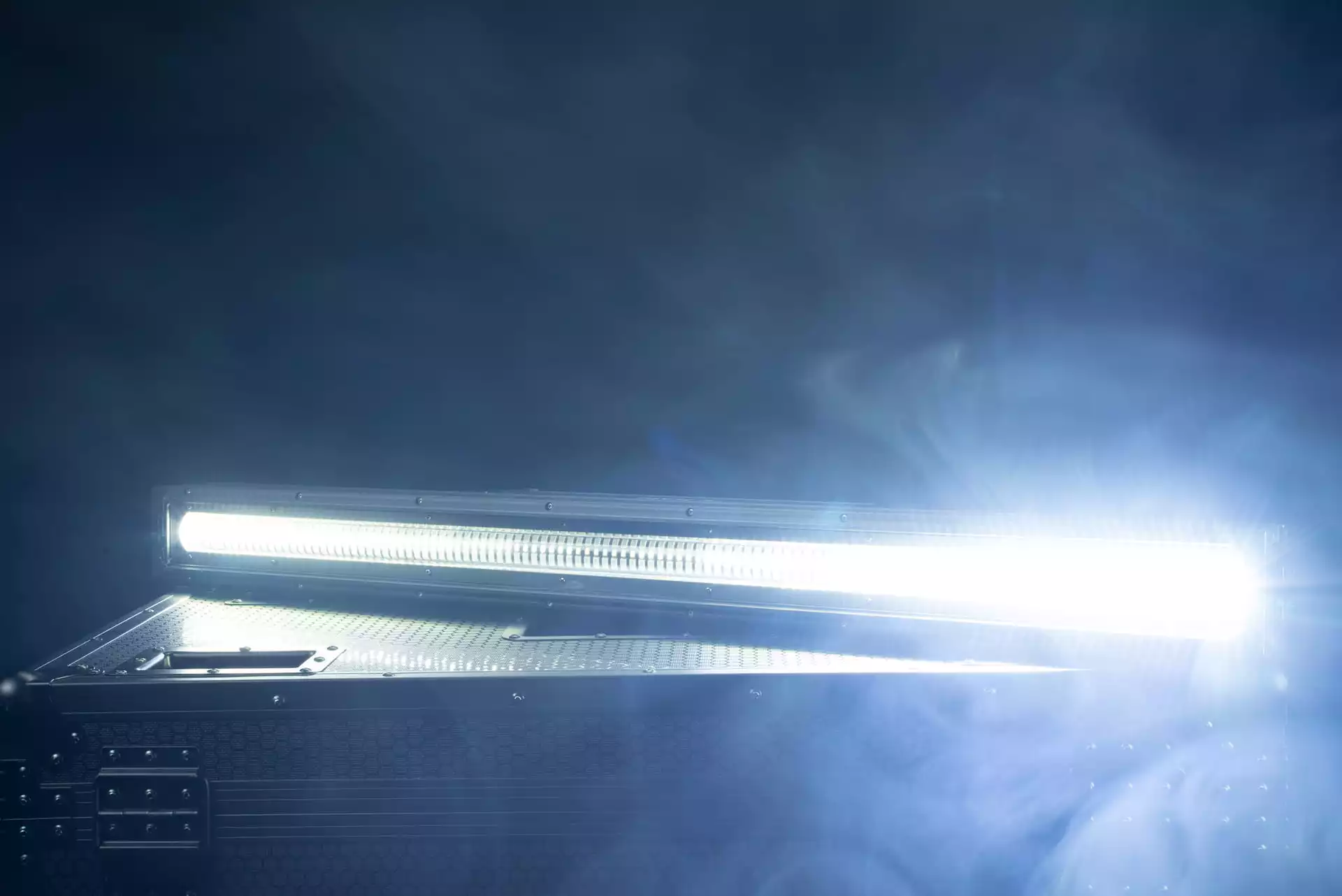

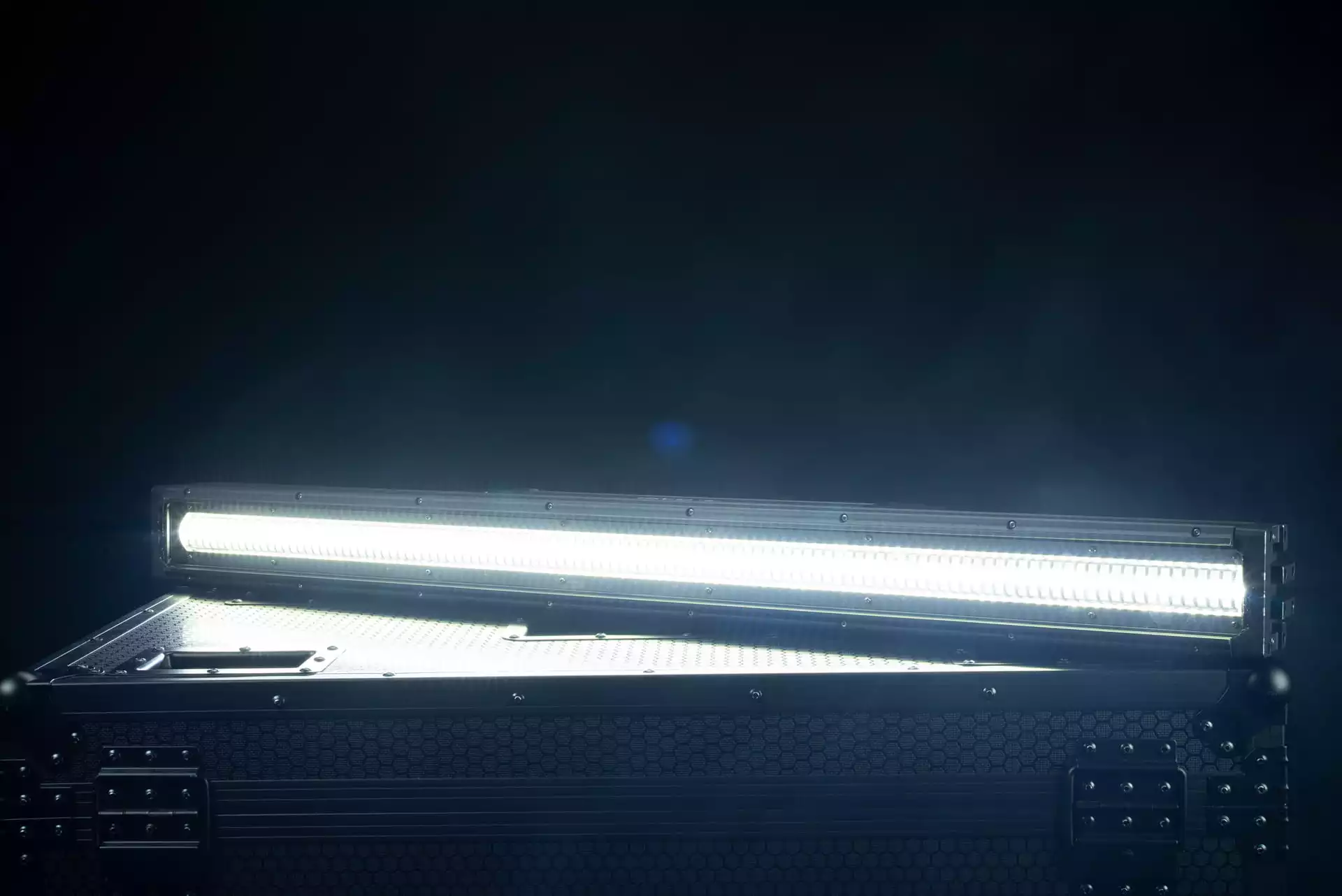

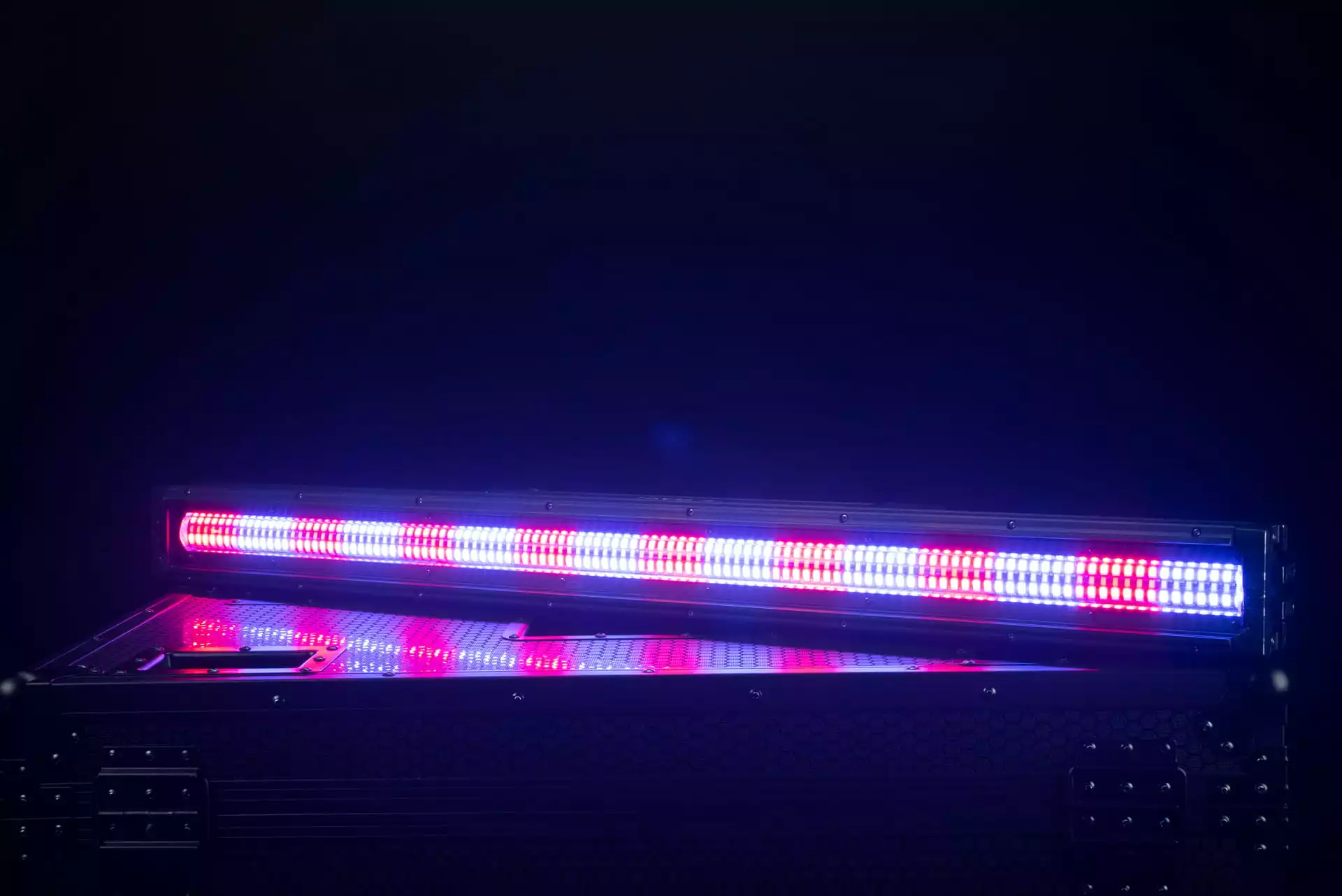

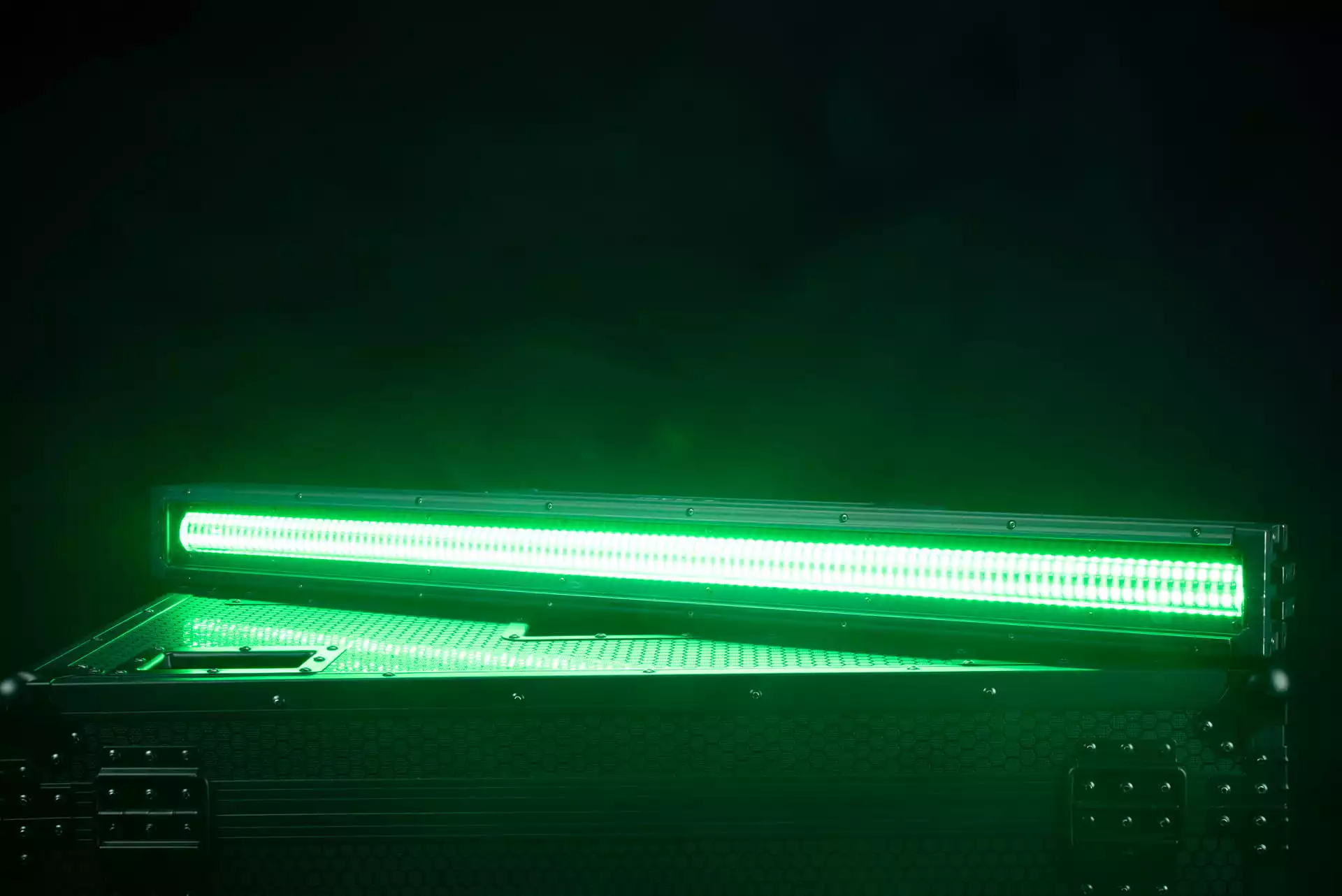

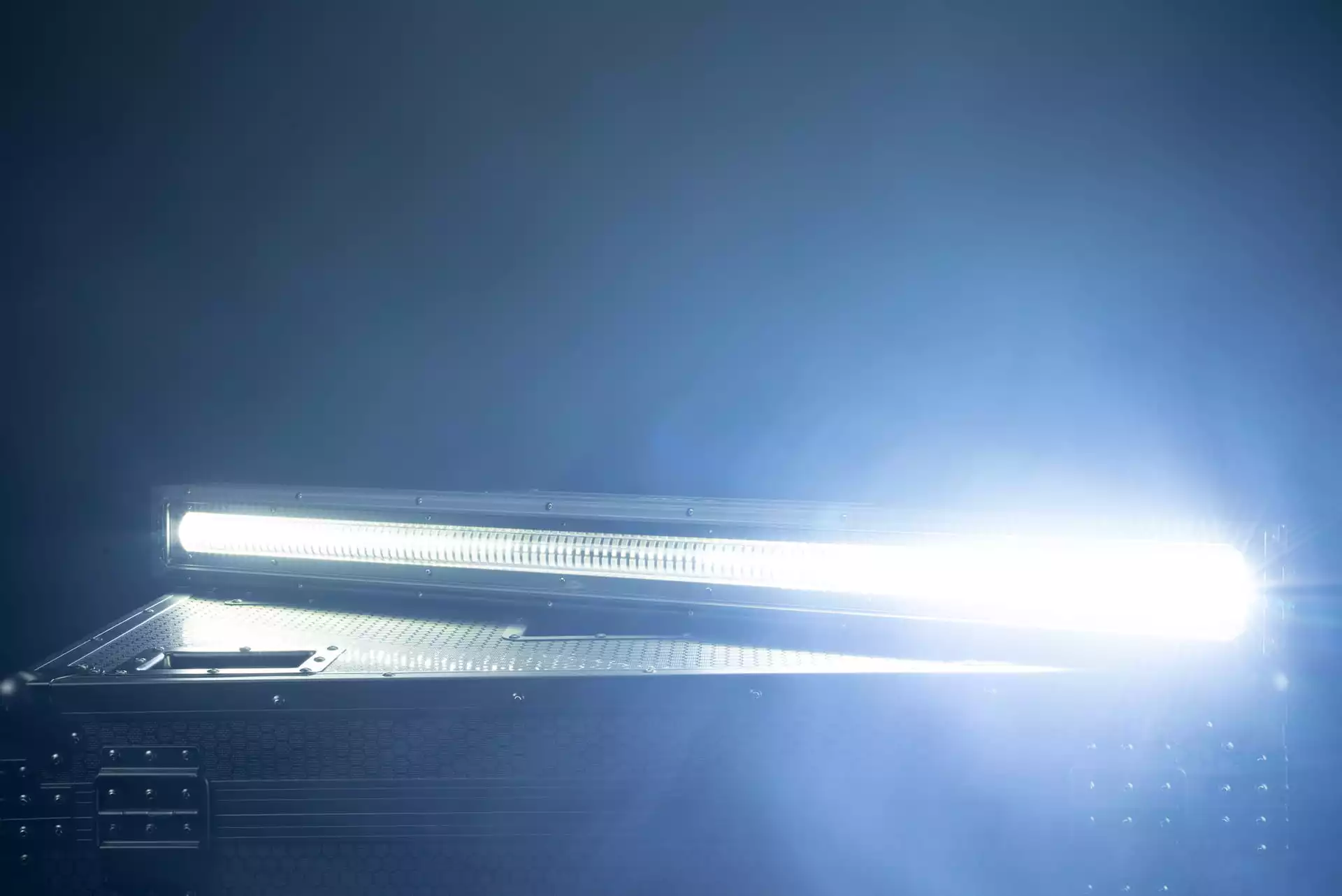

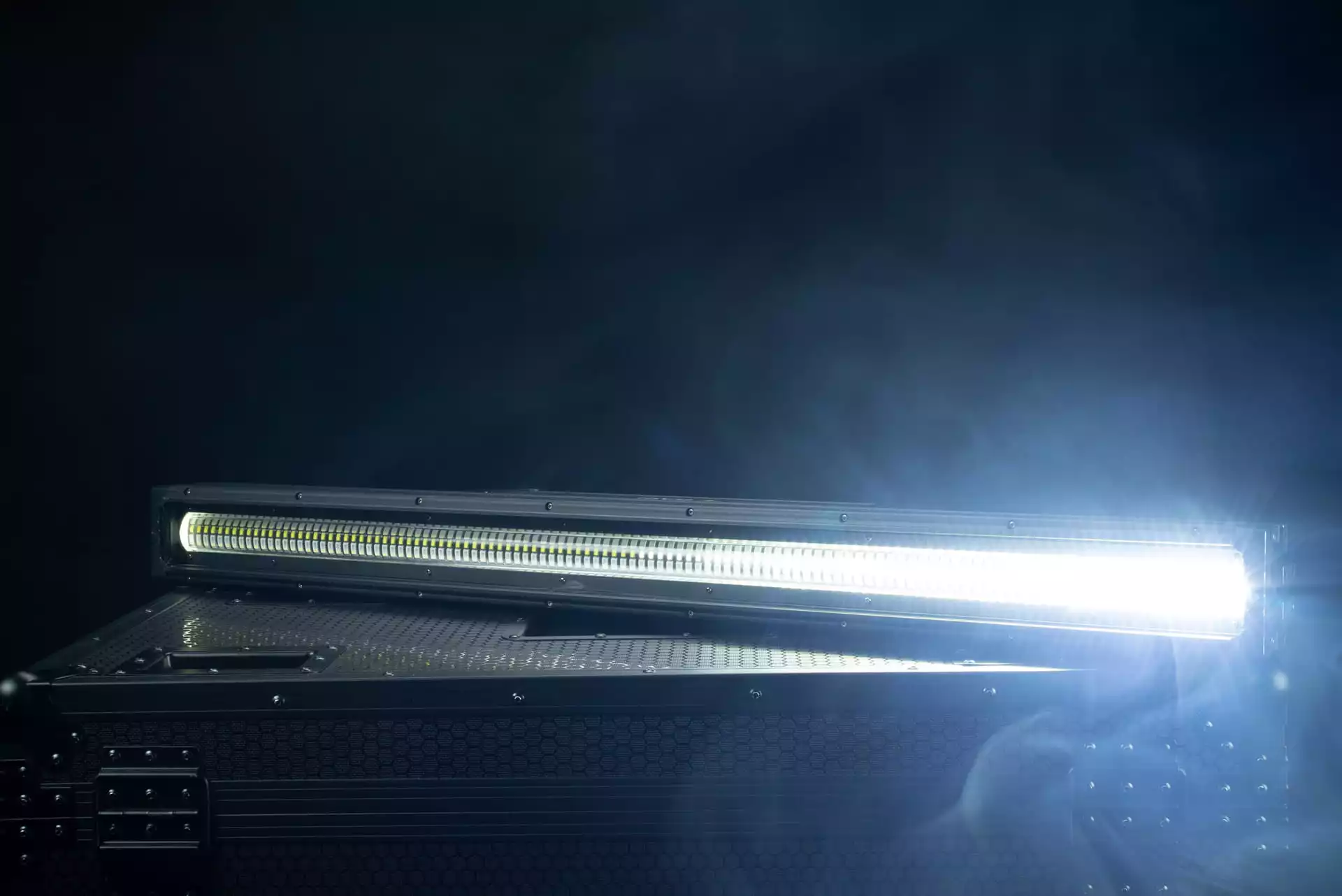

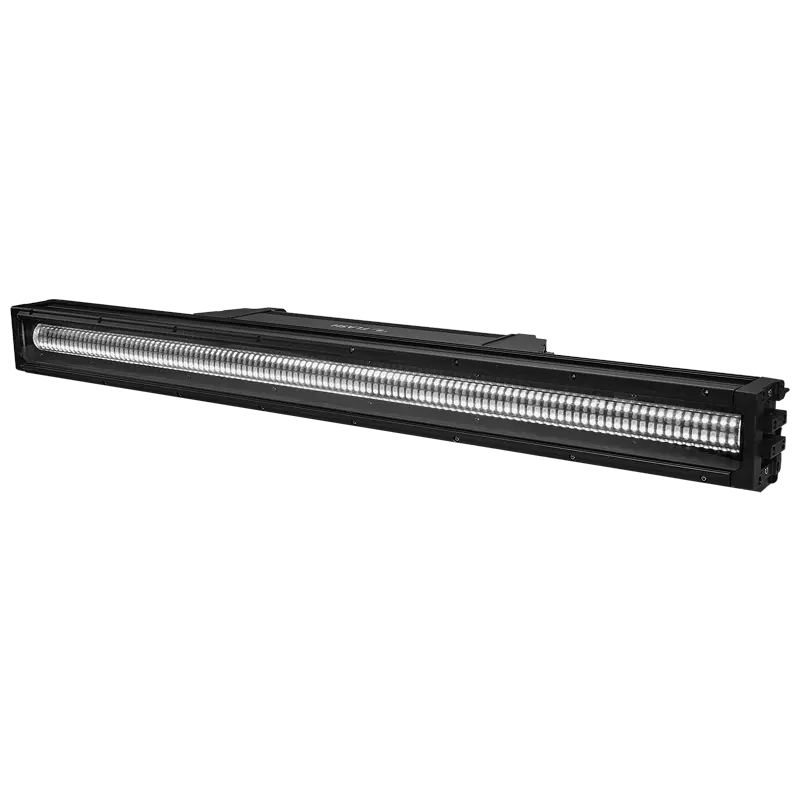

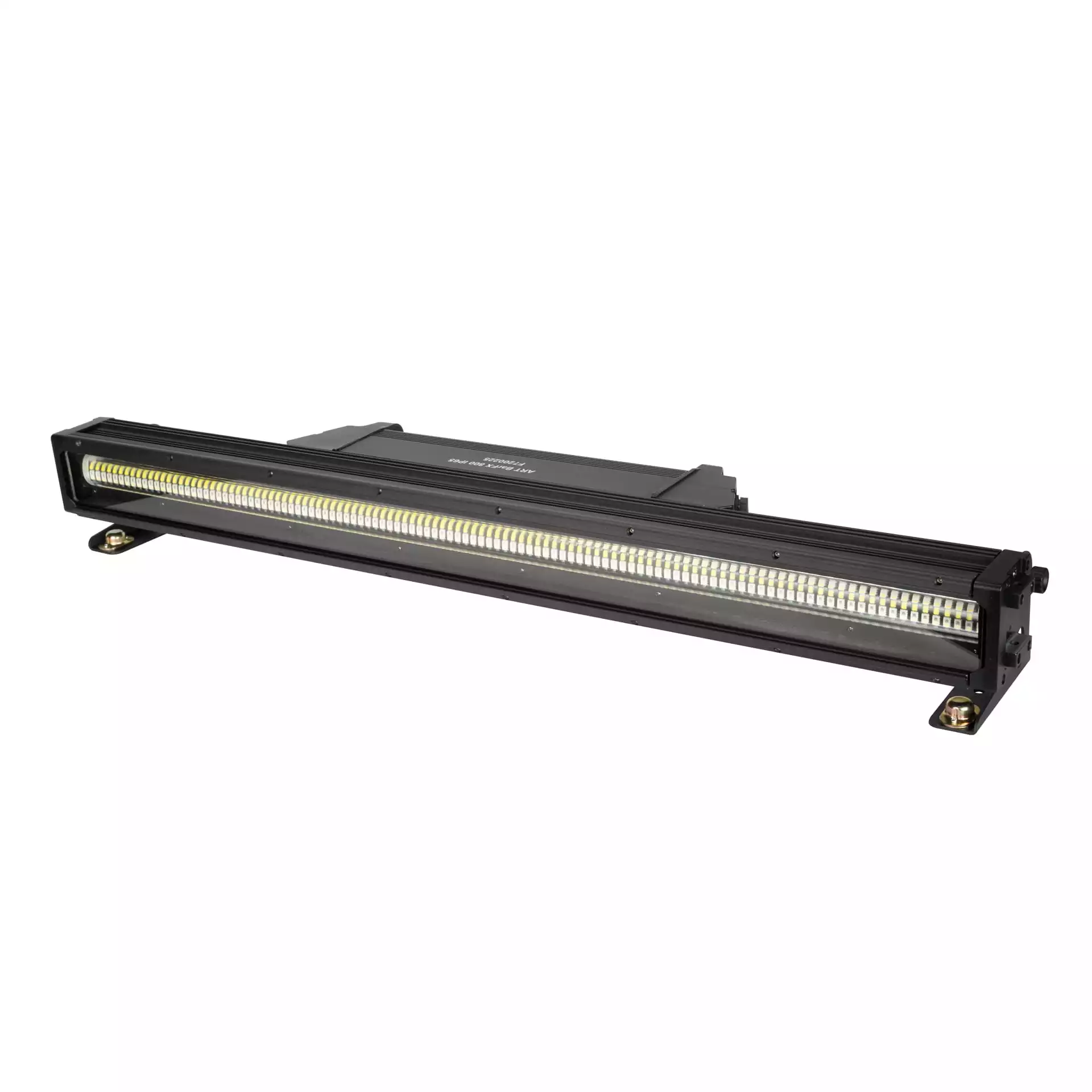

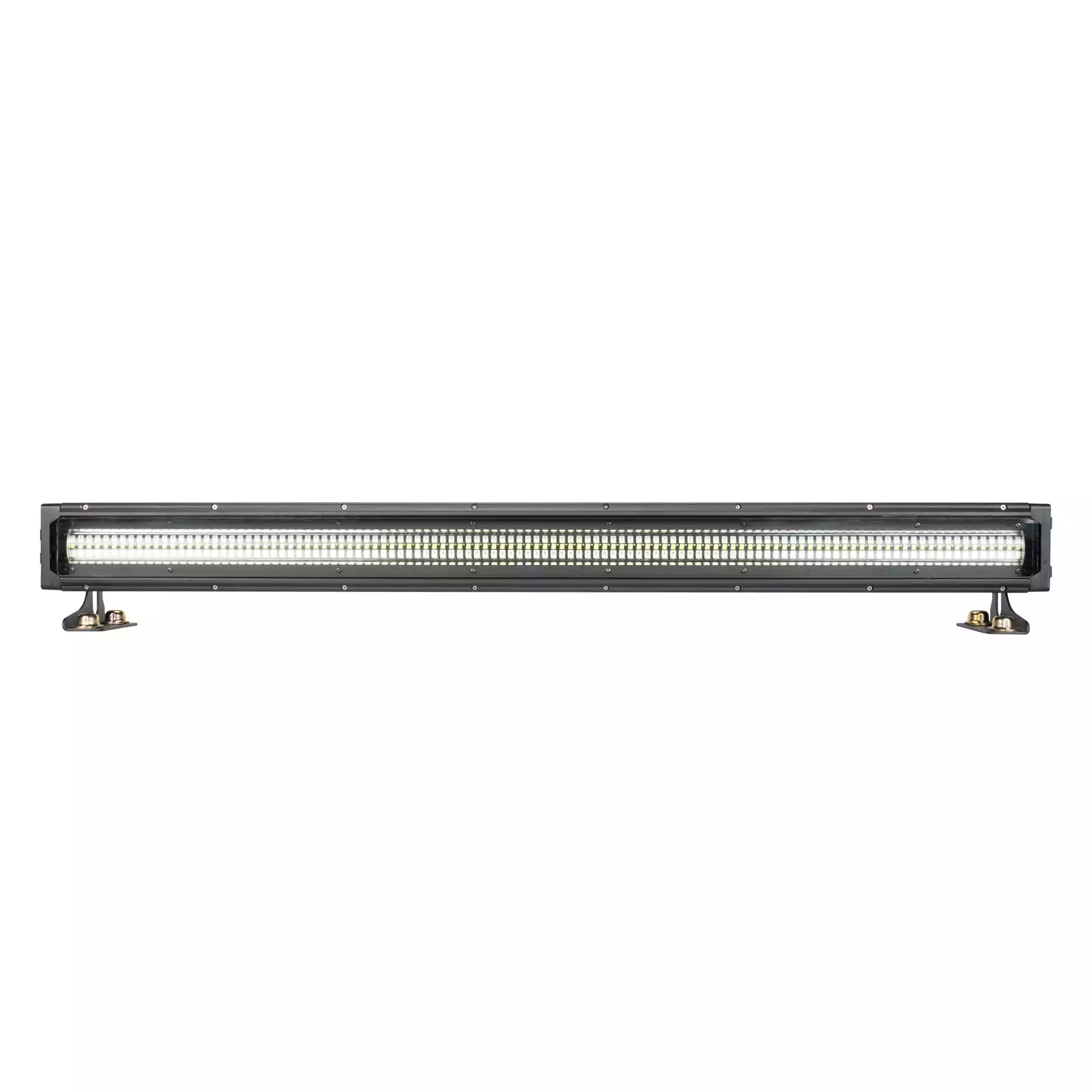

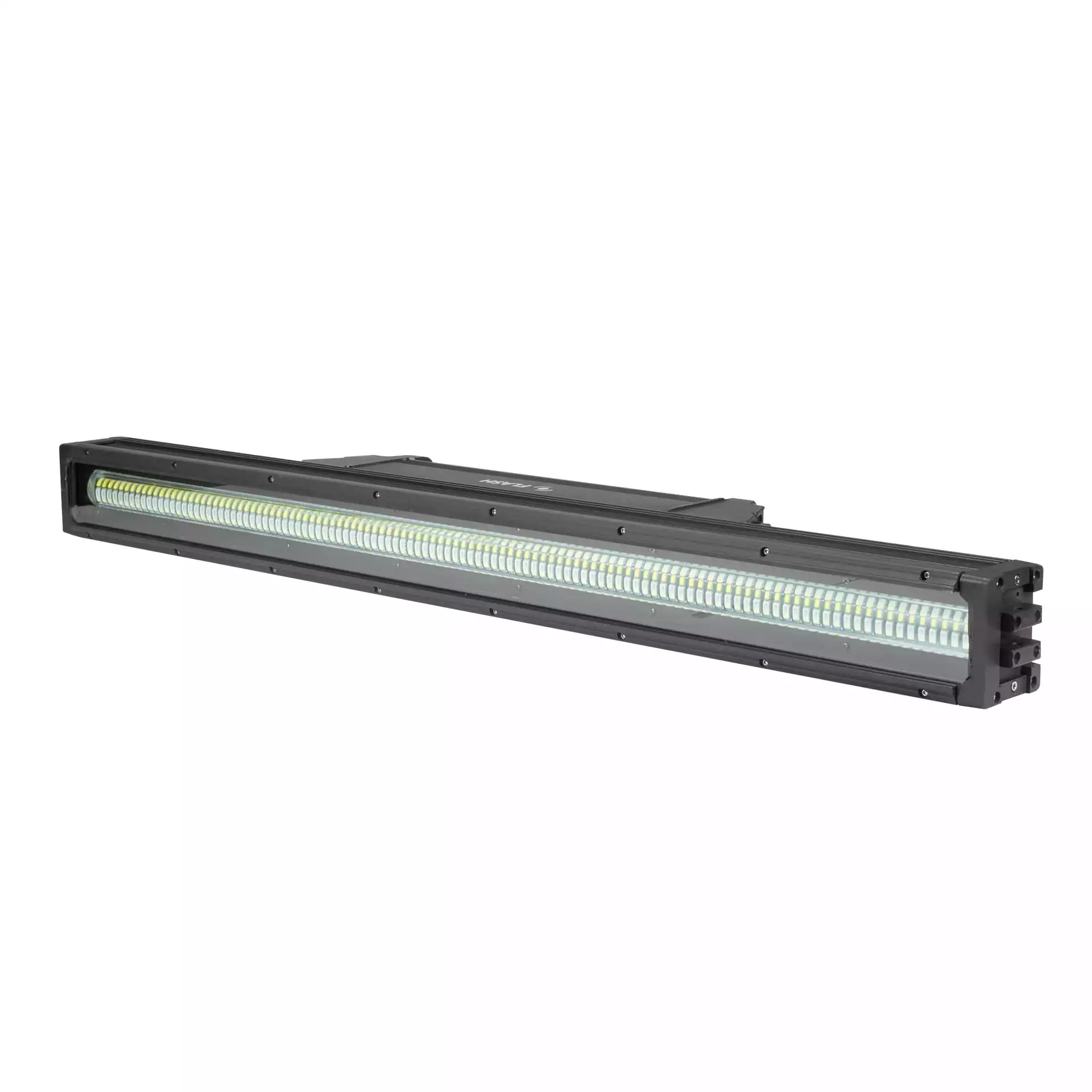

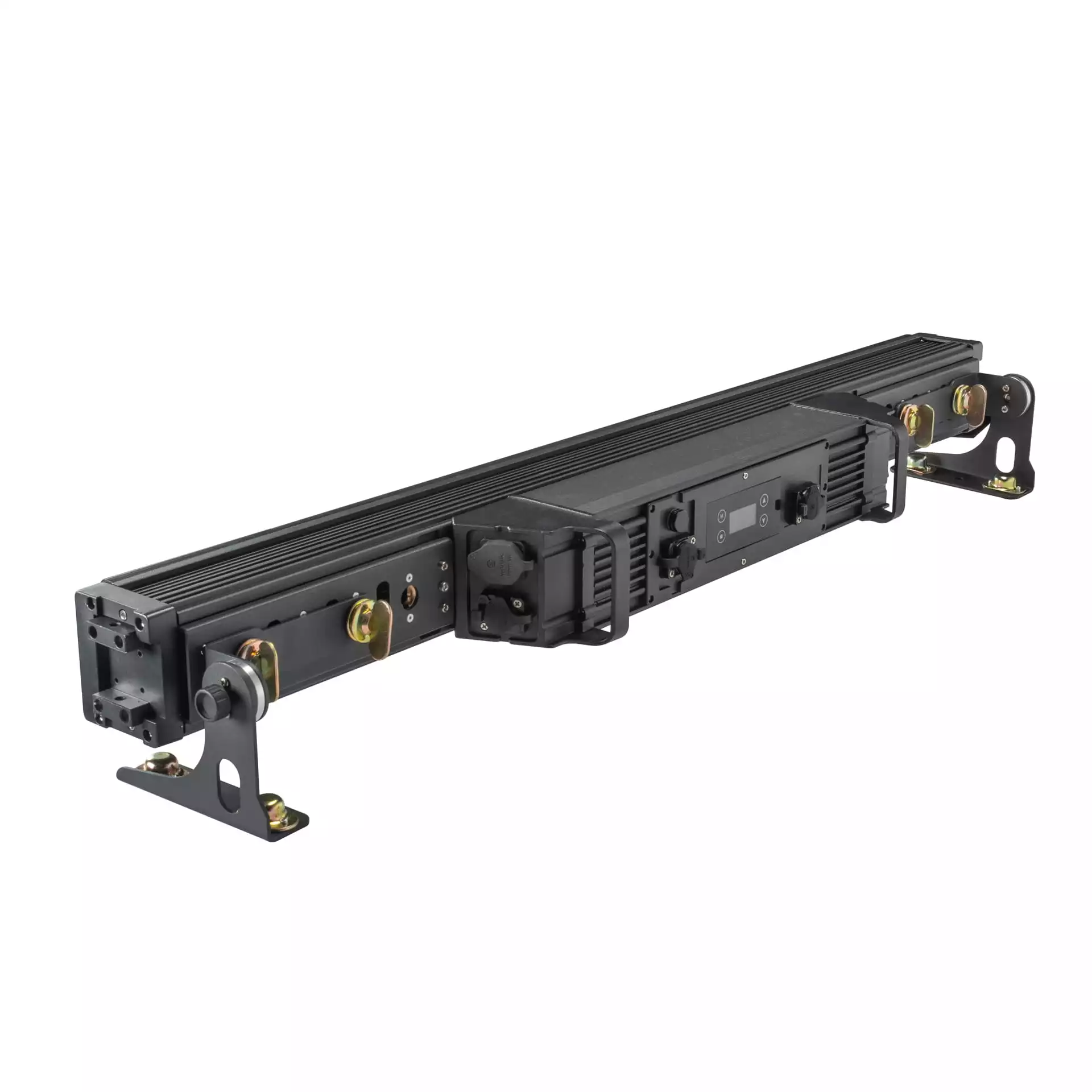

BarFX 800 IP65 is equipped with two light sources with a luminous flux of 40,000 lm.
LED White 6500K 5W x 112, (16 sections),
RGBW LED 2W x 224 (16 sections)
The device provides smooth brightness control (16-bit), independent control of 16 pixels and built-in macros, and a constant lighting angle (75⁰).
Thanks to the IP65 waterproof class and passive cooling, it works perfectly in outdoor conditions, and the specially designed housing allows installation in any orientation and connection of several devices into one smooth line using the pins included in the set.


When purchasing 4 devices, you receive a dedicated Case, enabling safe storage and transport of devices and accessories.

Specification BarFX 800 IP65

Power Source (AC)
Supply voltage 230V
Maximum power consumption 3,48A
Power consumption 800W
Power frequency 50-60Hz
Light source
Type LED
Quantity 112
Power (W) 5W
Type LED (RGBW)
Quantity 224
Power (W) 2W
Number of control sections 16 RGBW
Number of control sections 16 LED (W)
Color temperature 6500K
Color Rendering Index (CRI) 72
Color Mixing System
LED 16 bit
RGBW 16 bit
Dimming
Dimming 8 bit
Beam angle
Beam angle Stały (75 ⁰)
FROST filter

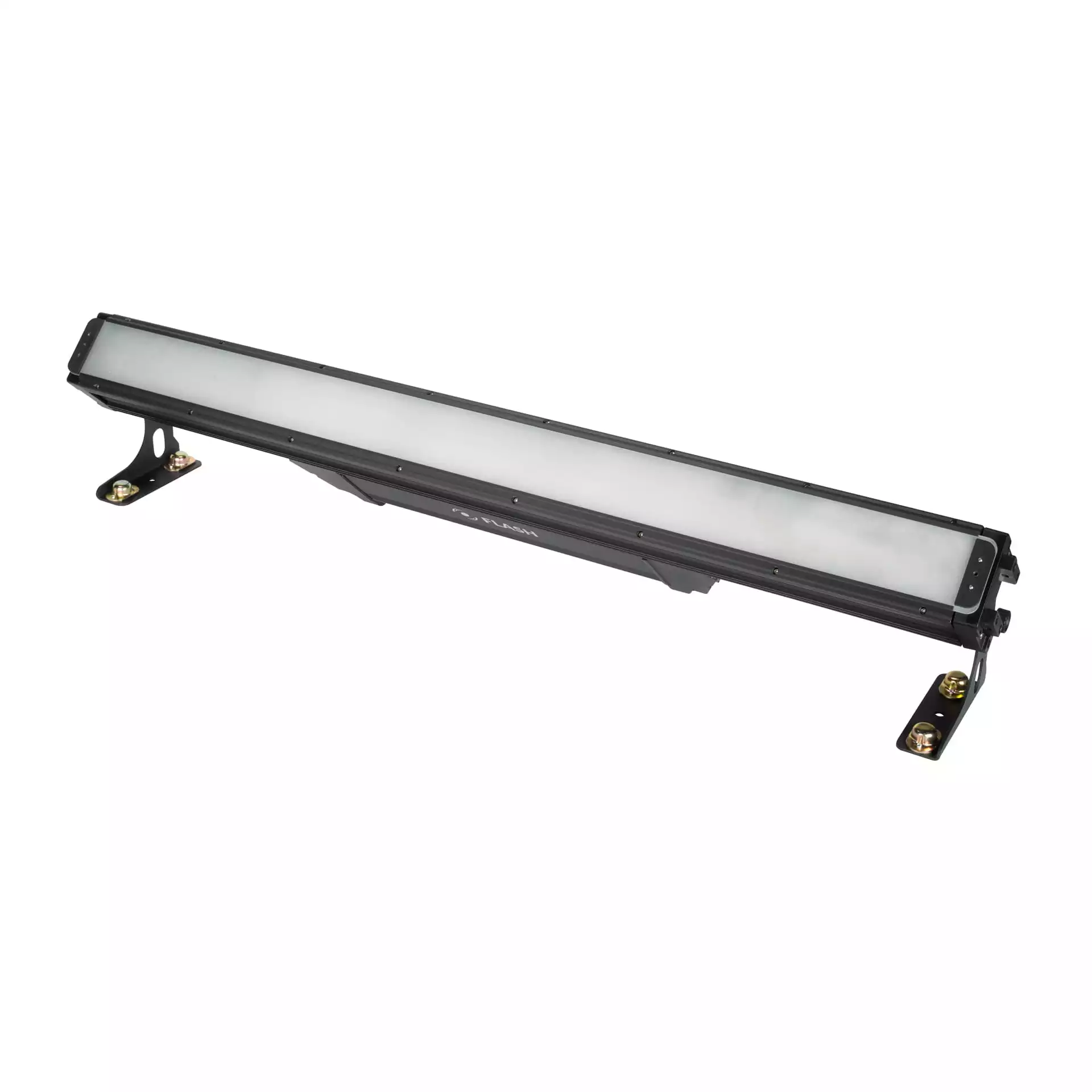

FROST filter Manual
Strobe - frequency
Frequency 1Hz-30Hz
Pulsating Yes
Random Yes
DMX control
Number of modes 5
Number of channels 13-89
Modes of operation
DMX512 Yes
RDM Yes
Art-Net Yes
Auto control Yes
User Interface
Physical buttons Yes
LCD display Yes

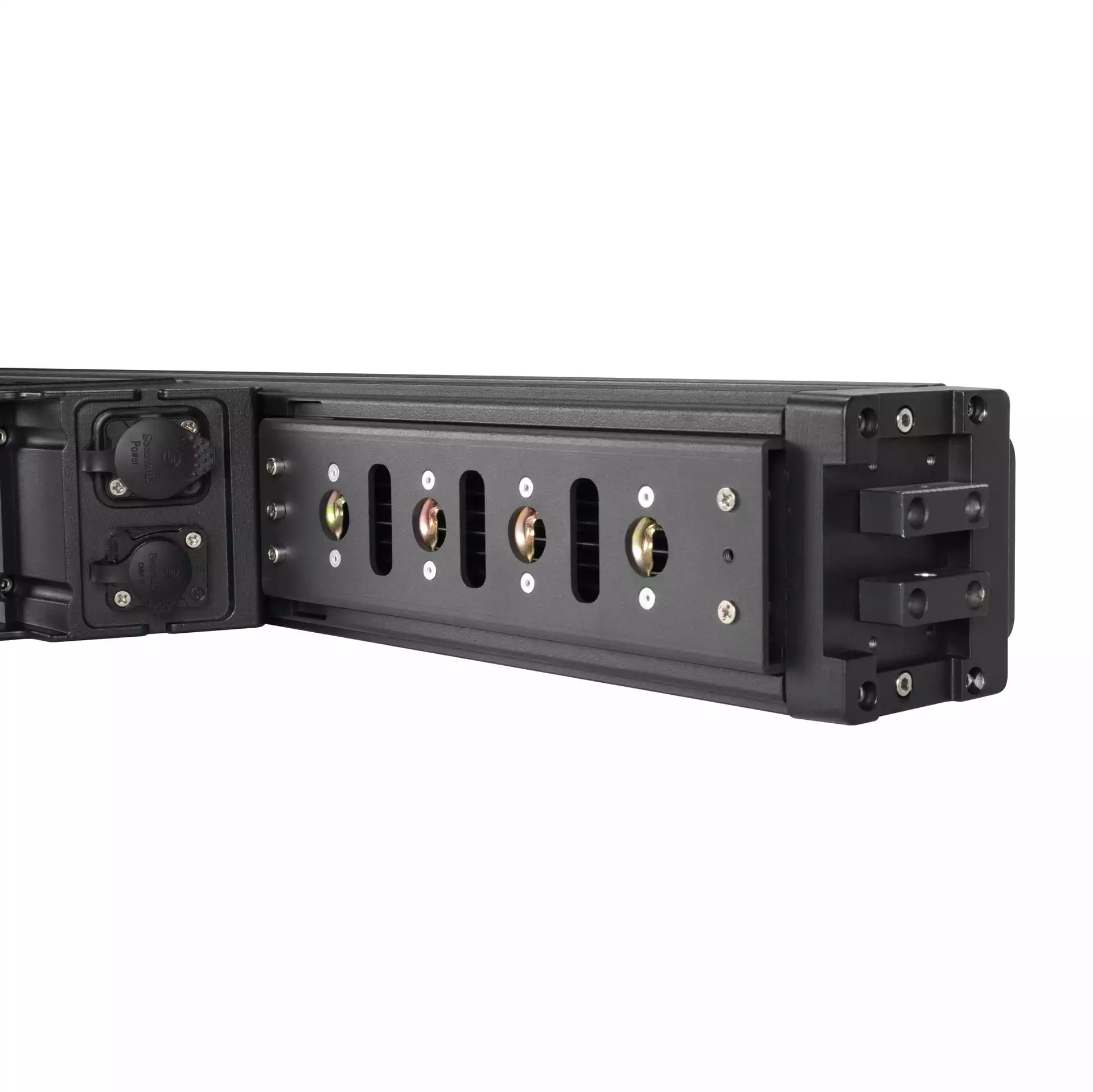

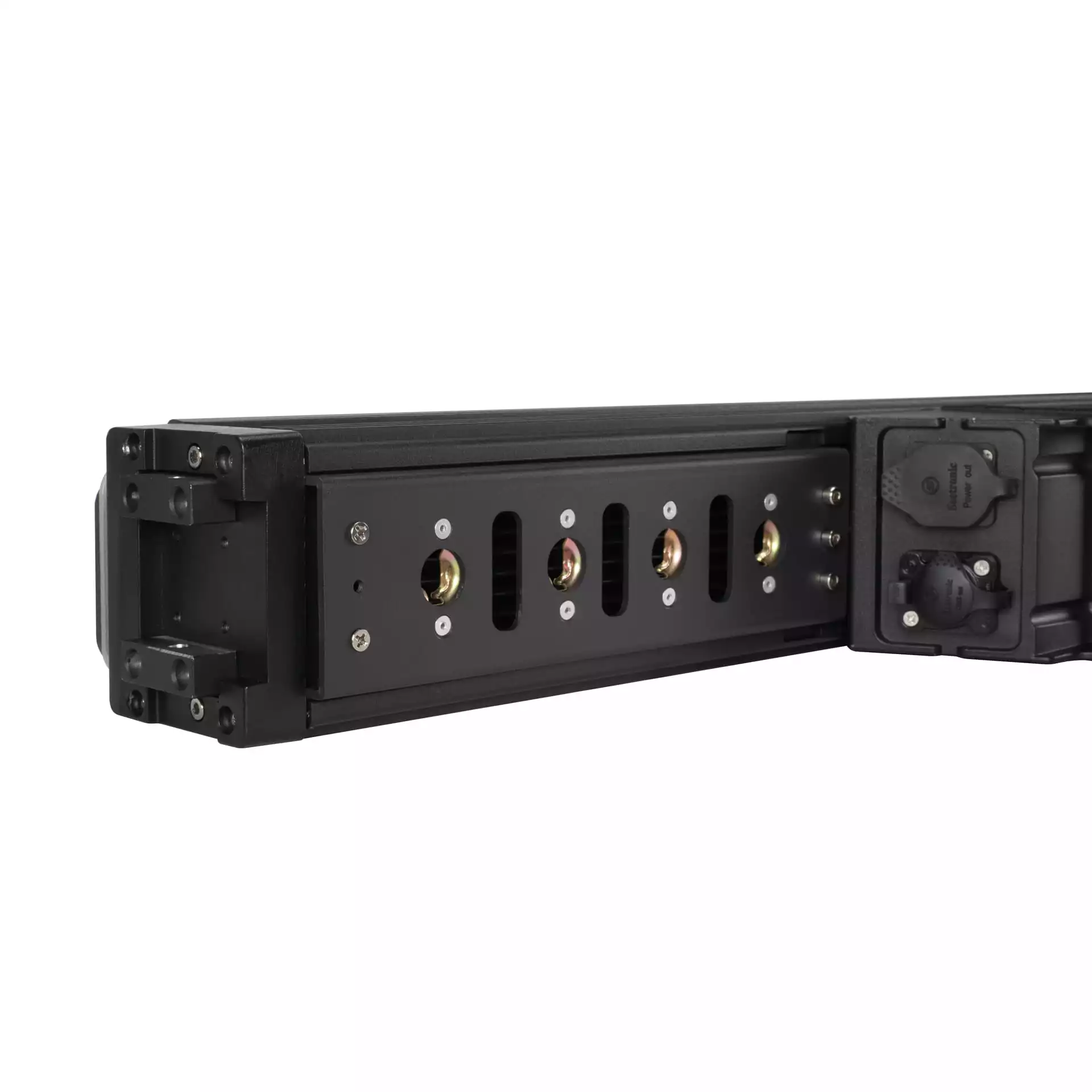

Connectors
AC IN TrueCon IP65
AC OUT TrueCon IP65
DMX IN 3-pin DMX
DMX OUT 3-pin DMX
ETHERCON IN
ETHERCON OUT
Physical parameters
IP protection level IP65
Housing type Aluminium
Housing type ABS

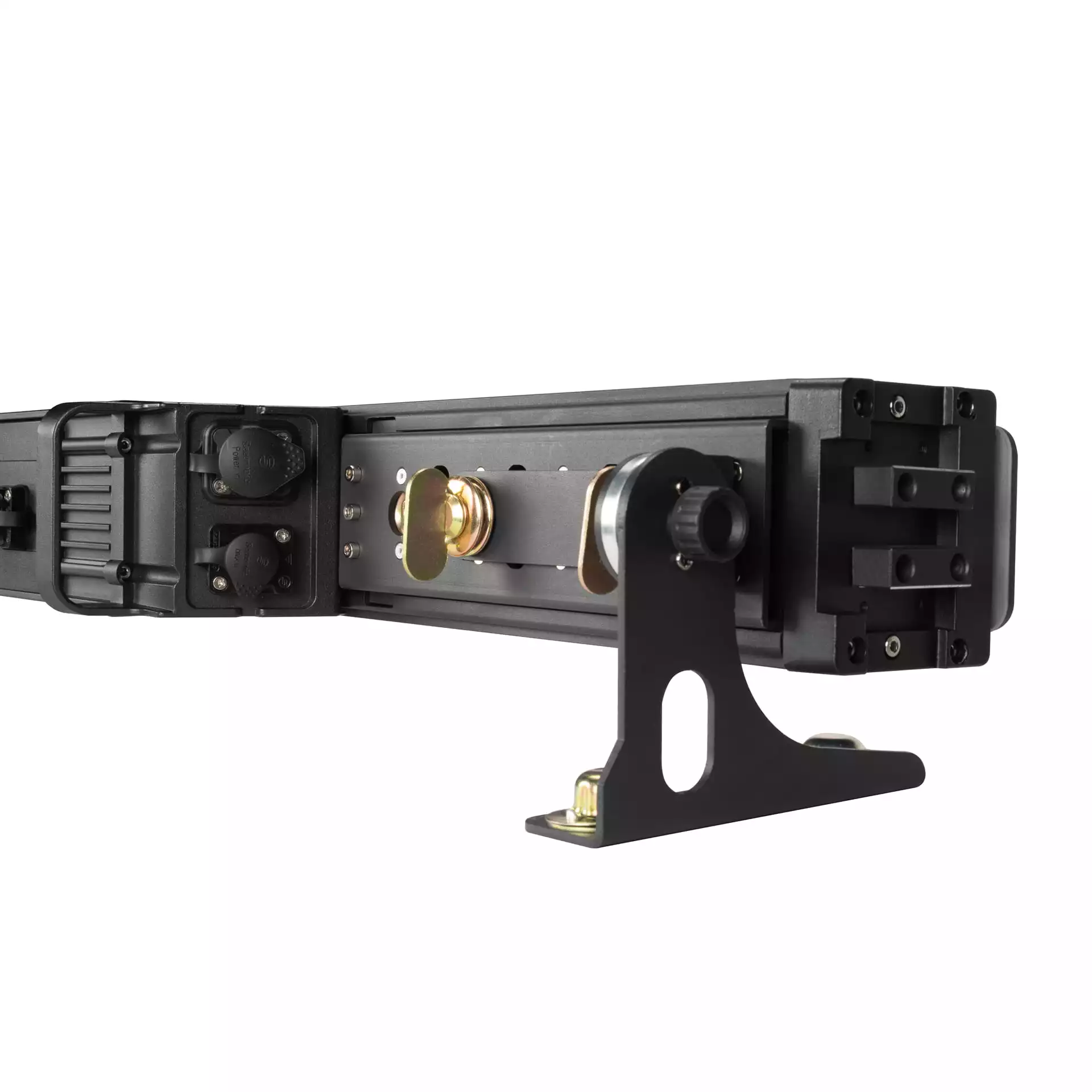

Fixing Integrated
Fixing Mounting hole
Fixing Security point
Housing color Black
Cooling Passive
Length [cm] 102
Width [cm] 18
Height [cm] 9
Weight [kg] 10,4

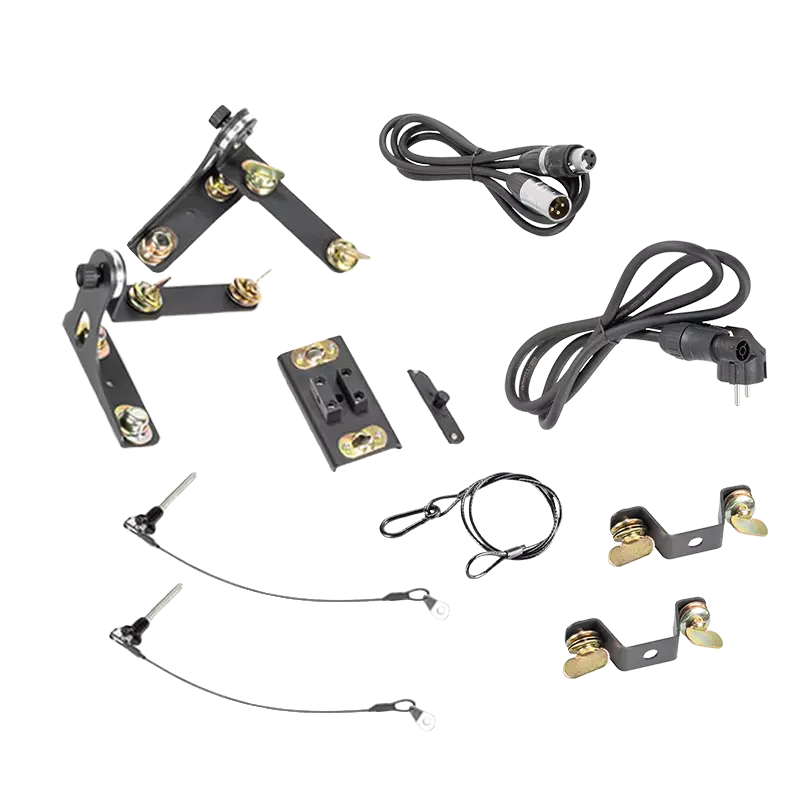

Contents of the package
A kind of package Case (F0901964)
Manual Yes
Wiring DMX 3-pin
Wiring TrueCON
Device BarFX 800 IP65

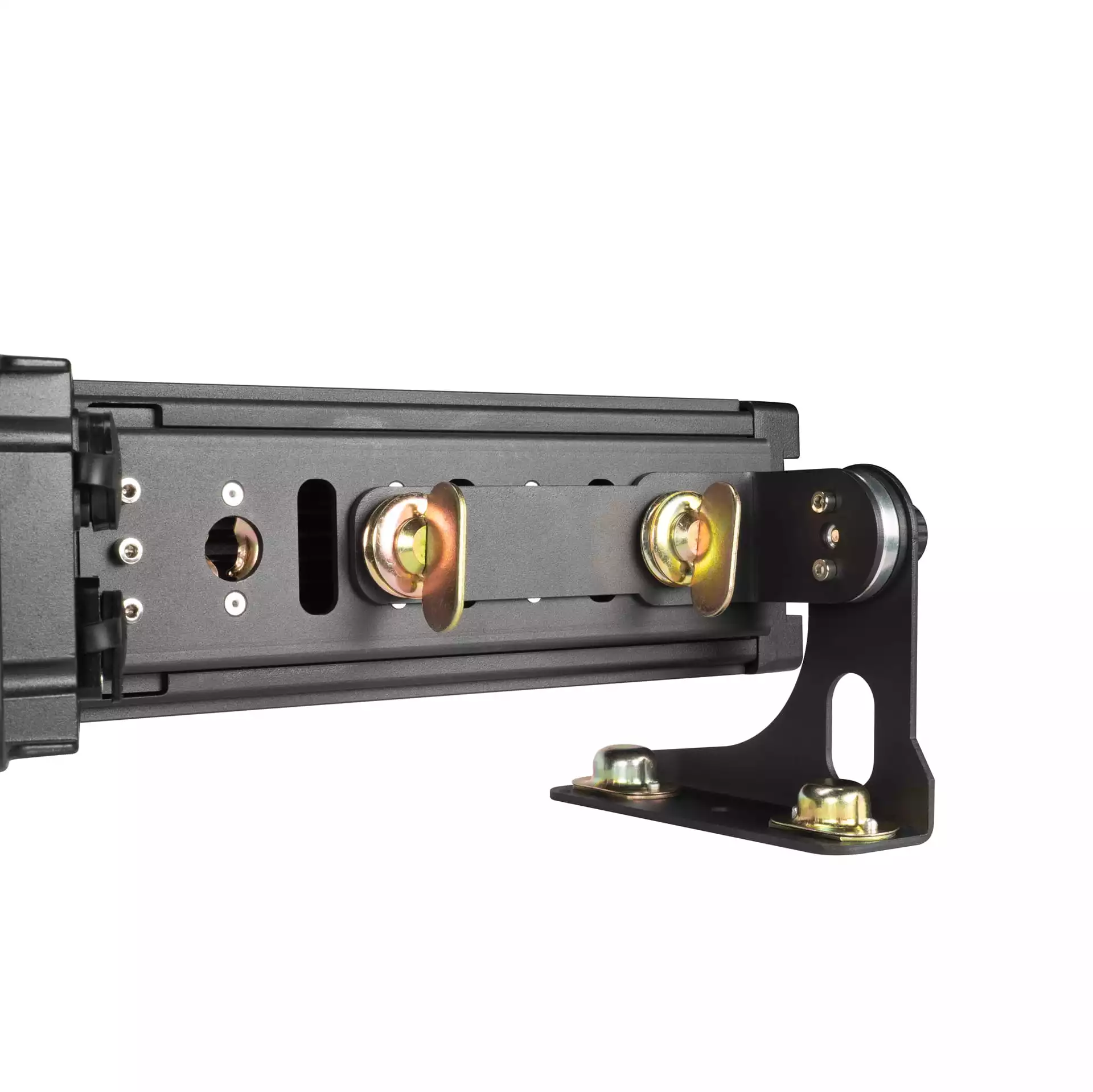

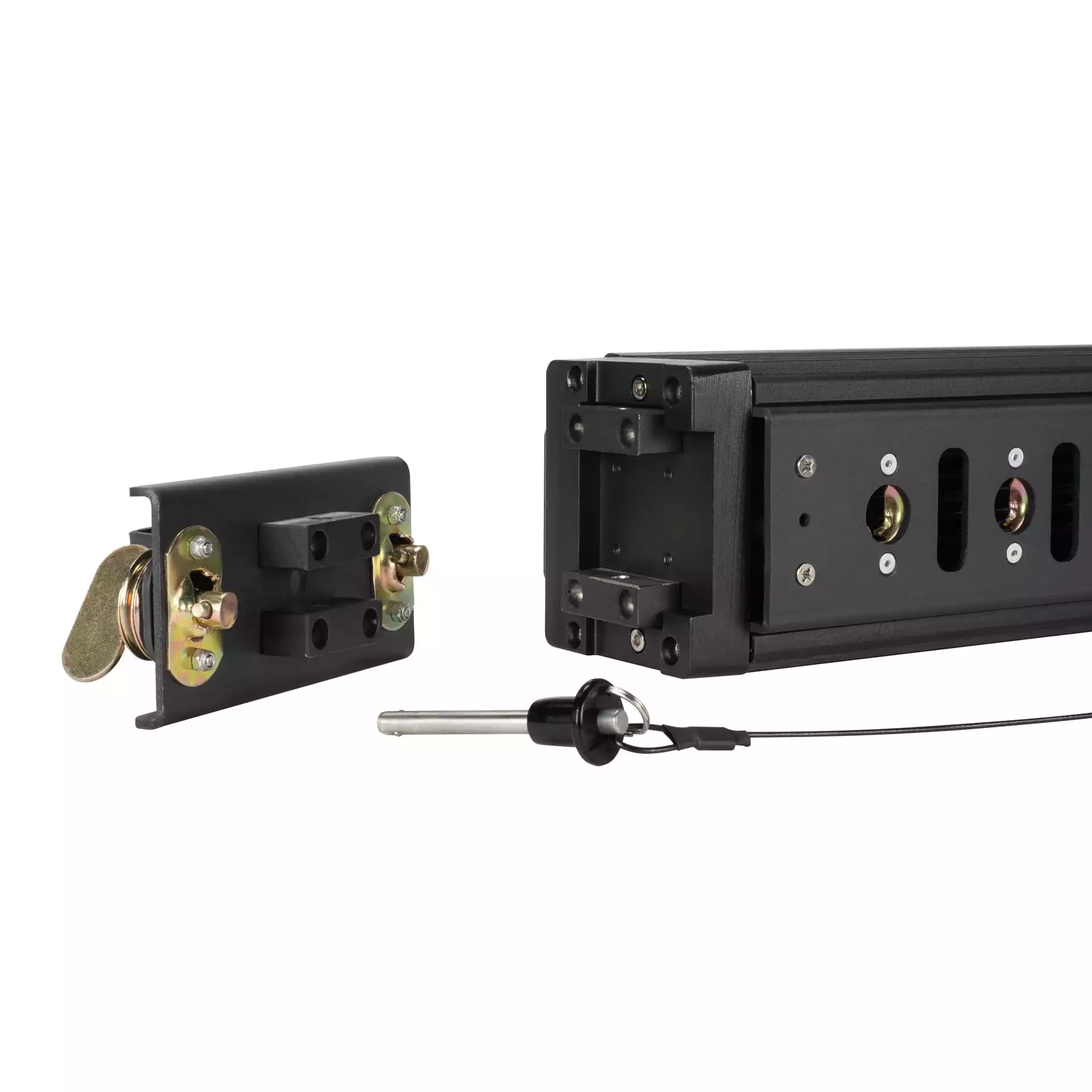

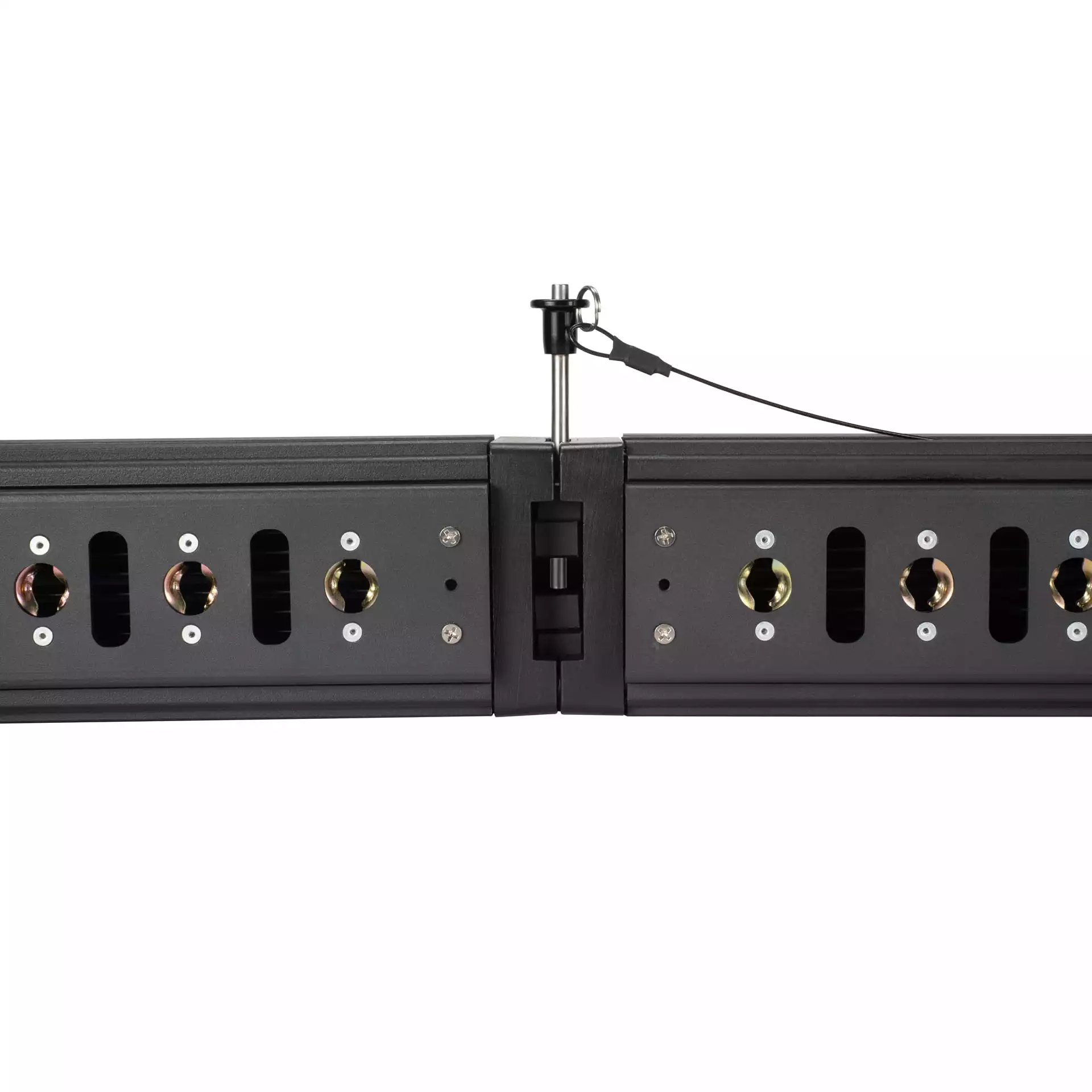

Handle Connector Pins (2 pcs), Omega (2 pcs), Side Adapter (2 pcs), Frost (1 pc)
Steel safety cable Yes

Instructions available

Instrukcja PL for BarFX 800 IP65
Instrukcja
Język: PL
Instrukcja EN for BarFX 800 IP65
Manual
Language: EN

Driver fixtures/libraries available

Fixtury GDTF for BarFX 800 IP65
Fixtury Jands for BarFX 800 IP65
Fixtury grandMA2 for BarFX 800 IP65
Fixtury SSL2 for BarFX 800 IP65
Fixtury Chamsys for BarFX 800 IP65
Fixtury grandMA3 for BarFX 800 IP65
Fixtury dot2 for BarFX 800 IP65
Fixtury QLC+ for BarFX 800 IP65
Fixtury Freestyler DMX for BarFX 800 IP65
Fixtury Avolites Titan for BarFX 800 IP65
Fixtury Vista for BarFX 800 IP65
Fixtury Obsidian for BarFX 800 IP65
Fixtury DMXcat for BarFX 800 IP65
Fixtury MyDMX for BarFX 800 IP65

Fixtures for visualizers available

Fixtury Capture for BarFX 800 IP65

Documents available

DMX Charts EN for BarFX 800 IP65
DMX Charts EN

To download fixtures from our database, enter your e-mail address. We will send files to the e-mail address you provided. By entering the address, you accept regulamin.

Close Send

Dedicated accessories

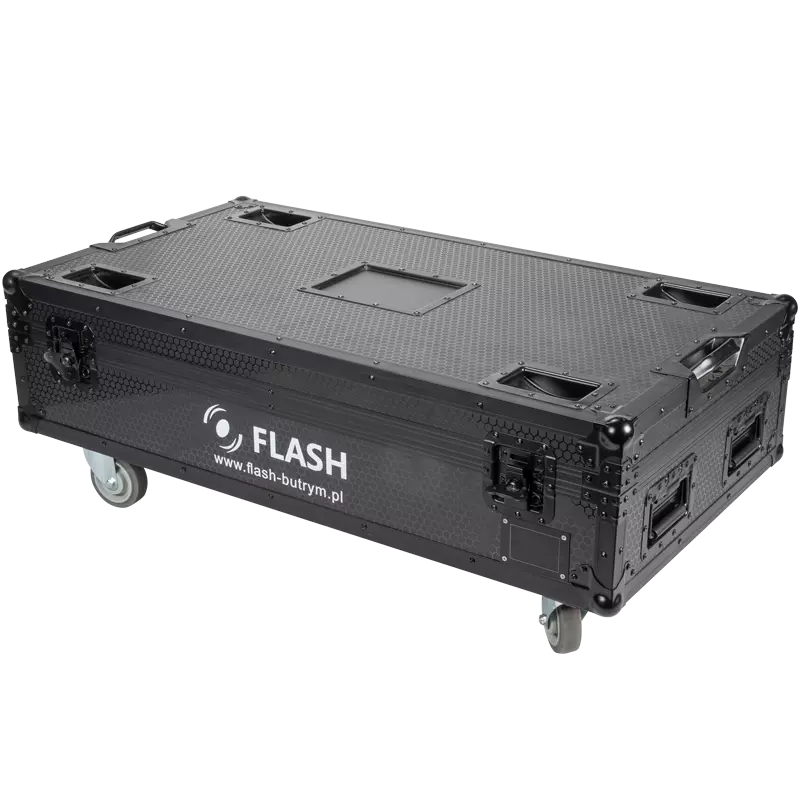

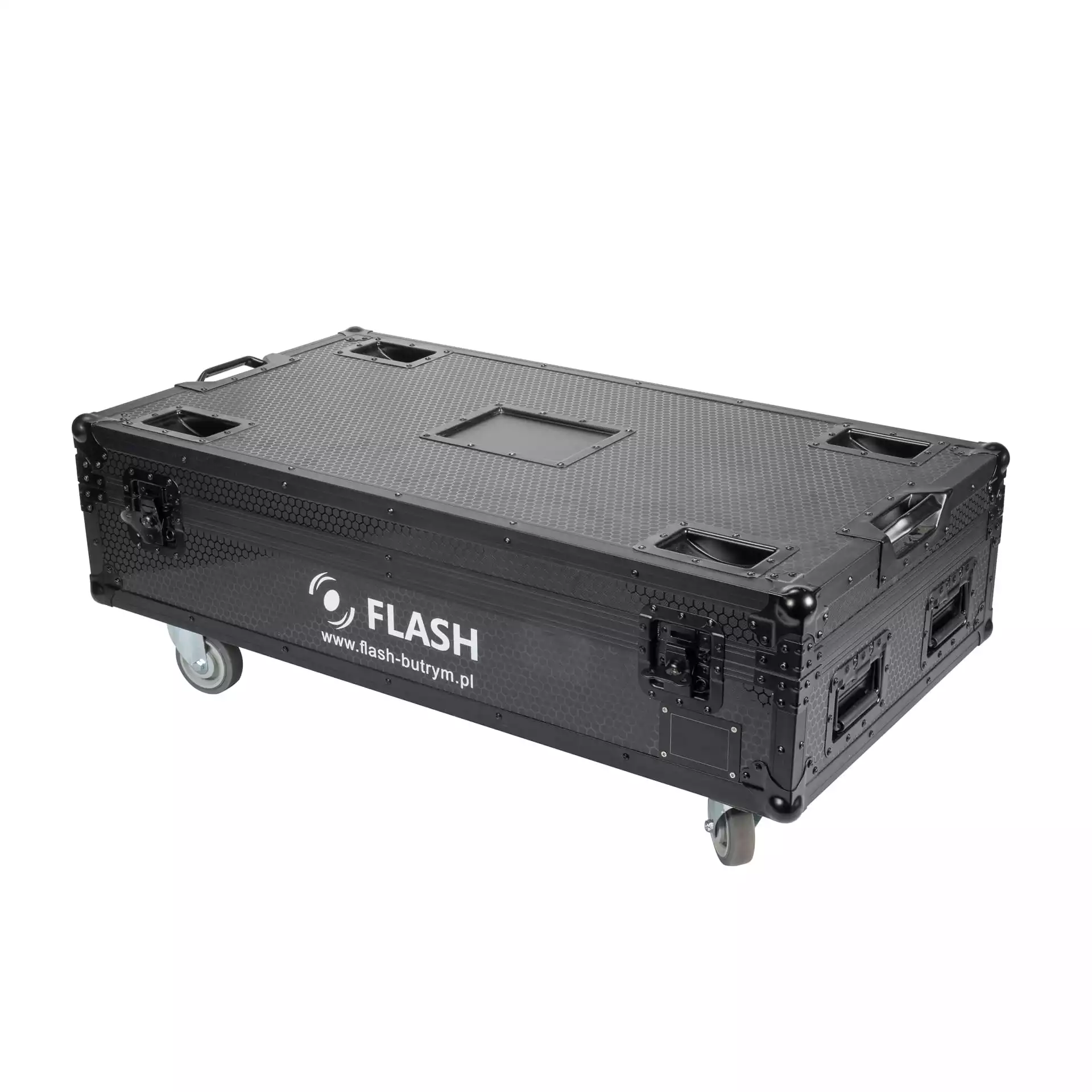

  • CASE FOR 4x ART BarFX 800 IP65
