WASH-BE LED 740 PRO
Main information:
» Product from category: Moving Devices / Moving Heads WASH
» Product series: EVENT
Product codes:
» Product code: F7100568
EVENT
Check series

Log in, check the price Ask for an offer
Check out rentalPoint offers Check distributors
See in gallery: Production of Soundlight Stage Concert under the Tower Concert tours
  • AUTO CONTROL
    AUTO CONTROL
  • AC
    AC
  • ABS
    ABS
  • MOTORIZED ZOOM
    MOTORIZED ZOOM
  • XLR 5-pin
    XLR 5-pin
  • XLR 3-pin
    XLR 3-pin
  • TrueCon
    TrueCon
  • SOUND CONTROL
    SOUND CONTROL
  • RDM
    RDM
  • MASTER-SLAVE
    MASTER-SLAVE
  • VARIABLE BEAM ANGLE
    VARIABLE BEAM ANGLE
  • IP20
    IP20
  • DMX512
    DMX512
  • BLACK
    BLACK
  • STEP CTO
    STEP CTO
  • CTO SMOOTH
    CTO SMOOTH
  • ACTIVE COOLING
    ACTIVE COOLING
  • AUTO CONTROL
    AUTO CONTROL
  • AC
    AC
  • ABS
    ABS
  • MOTORIZED ZOOM
    MOTORIZED ZOOM
  • XLR 5-pin
    XLR 5-pin
  • XLR 3-pin
    XLR 3-pin
  • TrueCon
    TrueCon
  • SOUND CONTROL
    SOUND CONTROL
  • RDM
    RDM
  • MASTER-SLAVE
    MASTER-SLAVE
  • VARIABLE BEAM ANGLE
    VARIABLE BEAM ANGLE
  • IP20
    IP20
  • DMX512
    DMX512
  • BLACK
    BLACK
  • STEP CTO
    STEP CTO
  • CTO SMOOTH
    CTO SMOOTH
  • ACTIVE COOLING
    ACTIVE COOLING
  • AUTO CONTROL
    AUTO CONTROL
  • AC
    AC
  • ABS
    ABS
  • MOTORIZED ZOOM
    MOTORIZED ZOOM
  • XLR 5-pin
    XLR 5-pin
  • XLR 3-pin
    XLR 3-pin
  • TrueCon
    TrueCon
  • SOUND CONTROL
    SOUND CONTROL
  • RDM
    RDM
  • MASTER-SLAVE
    MASTER-SLAVE
  • VARIABLE BEAM ANGLE
    VARIABLE BEAM ANGLE
  • IP20
    IP20
  • DMX512
    DMX512
  • BLACK
    BLACK
  • STEP CTO
    STEP CTO
  • CTO SMOOTH
    CTO SMOOTH
  • ACTIVE COOLING
    ACTIVE COOLING
  • AUTO CONTROL
    AUTO CONTROL
  • AC
    AC
  • ABS
    ABS
  • MOTORIZED ZOOM
    MOTORIZED ZOOM
  • XLR 5-pin
    XLR 5-pin
  • XLR 3-pin
    XLR 3-pin
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
  • WASH-BE LED 740 PRO
flash
fixtures:
  • SSL2
  • Freestyler
  • GDTF
  • grandMA2
  • SSL2
  • Freestyler
  • GDTF
  • grandMA2
  • SSL2
  • Freestyler
  • GDTF
  • grandMA2
  • SSL2
  • Freestyler
  • GDTF
  • grandMA2
  • SSL2
  • Freestyler
  • GDTF
  • grandMA2
  • SSL2
  • Freestyler
  • GDTF
  • grandMA2
  • SSL2
  • Freestyler
  • GDTF
  • grandMA2

To download fixtures from our database, enter your e-mail address. We will send the files to the e-mail address you provided. By entering the address, you accept statute.

Download now

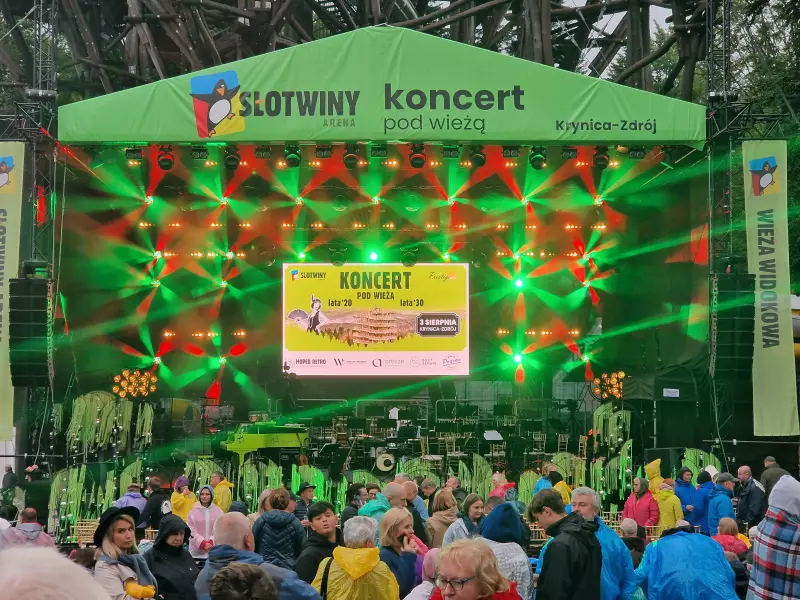

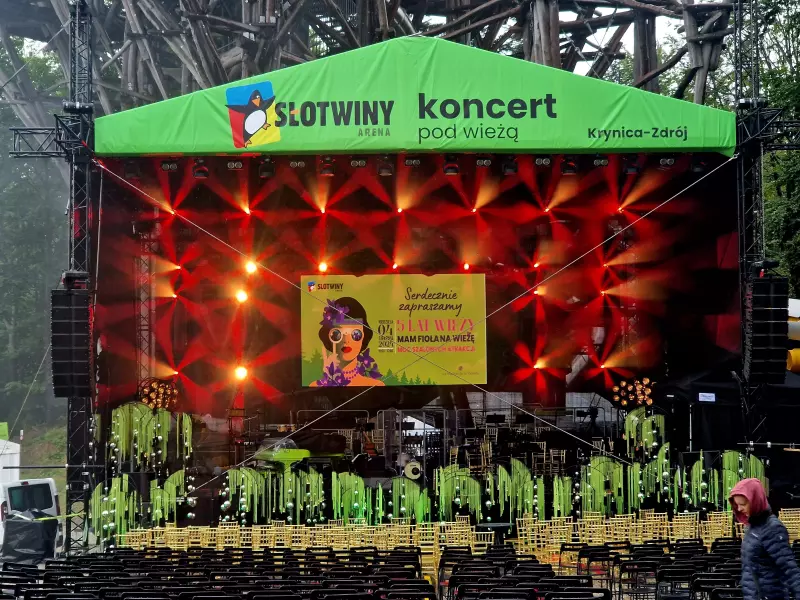

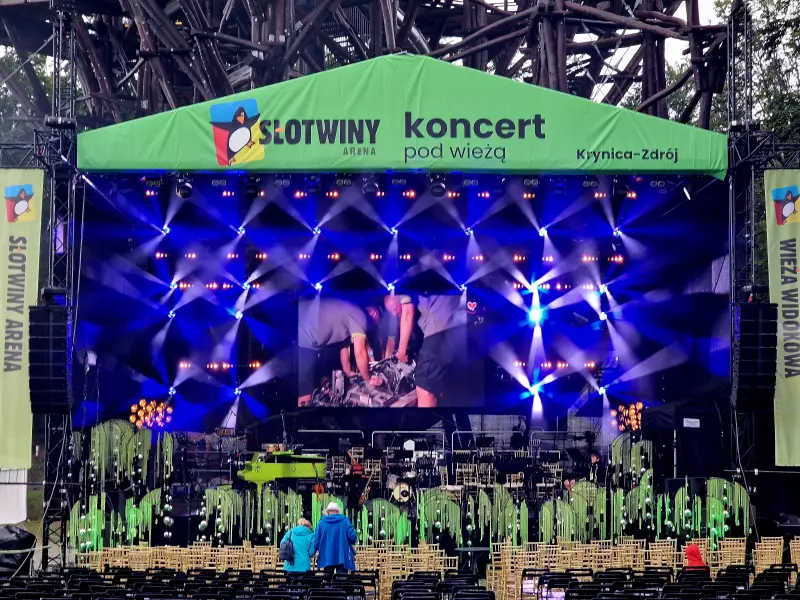

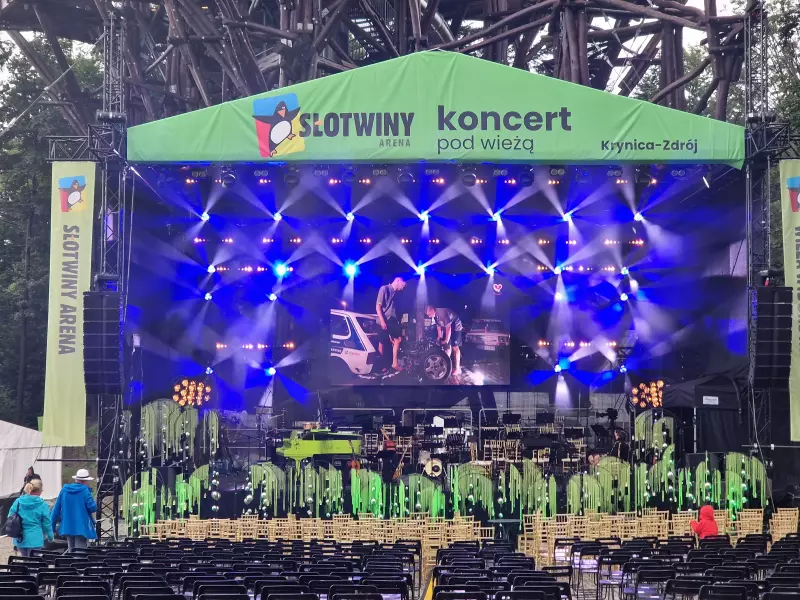

  • Production of Soundlight Stage Concert under the Tower Production of Soundlight Stage Concert under the Tower
  • Production of Soundlight Stage Concert under the Tower Production of Soundlight Stage Concert under the Tower

Product description

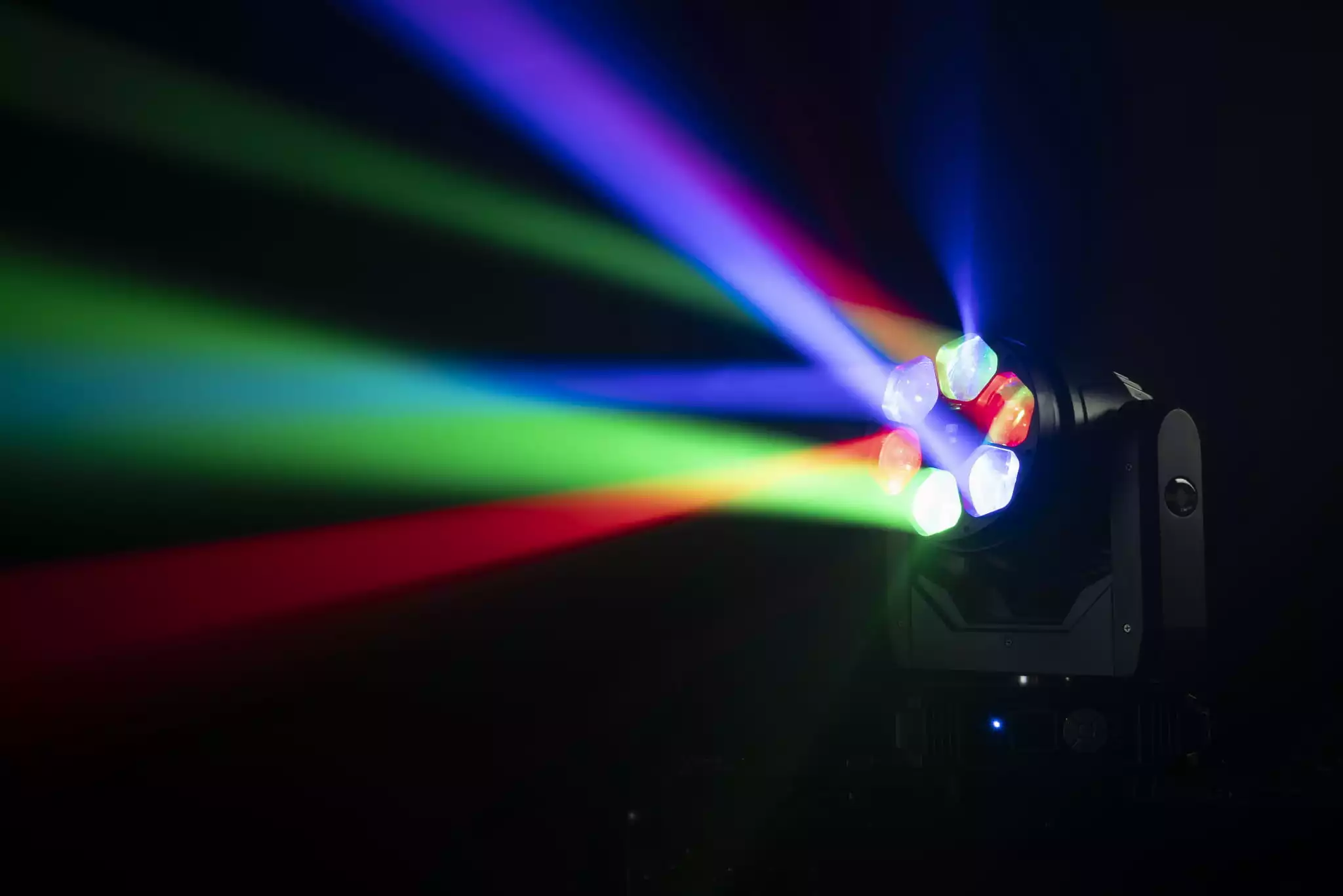

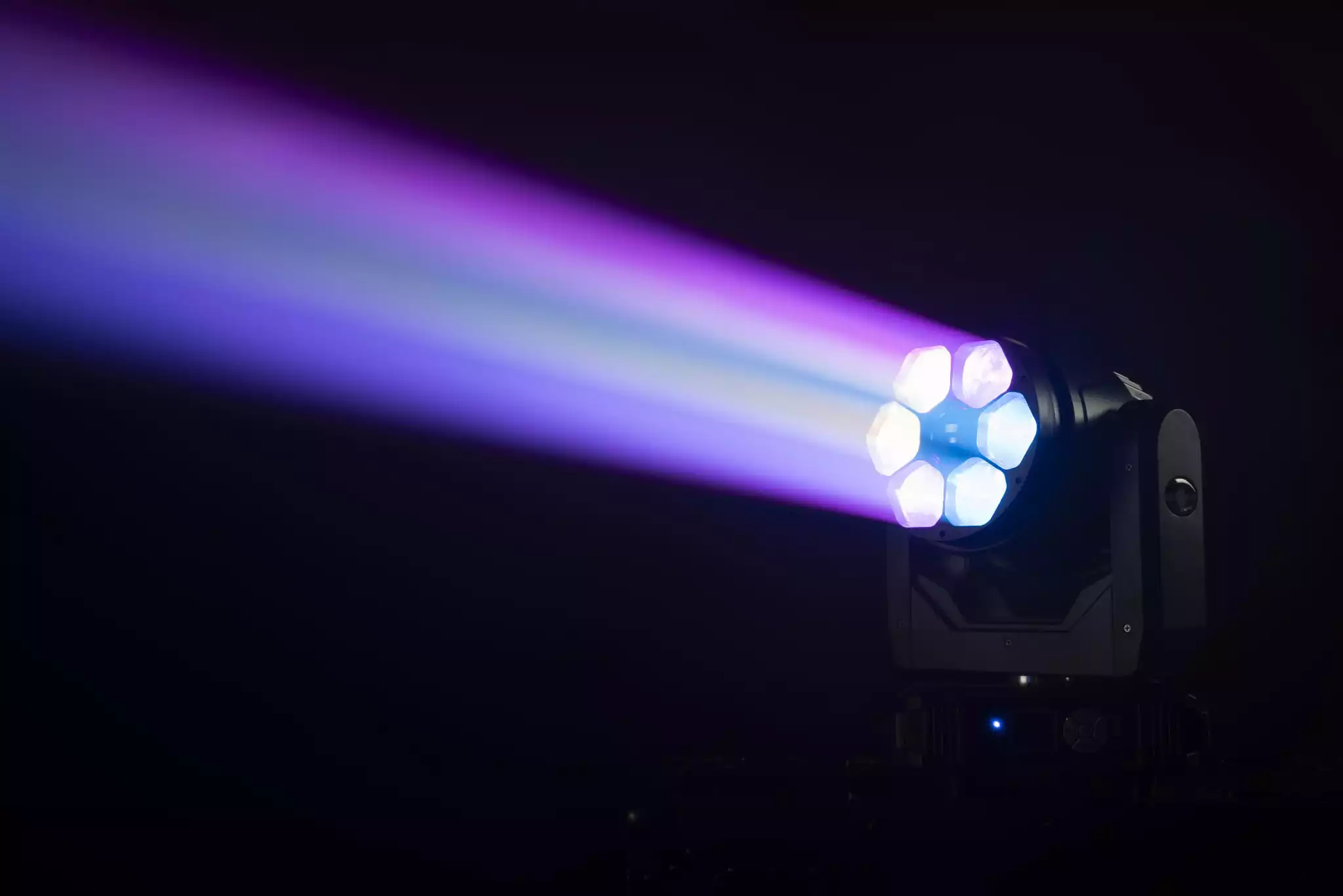

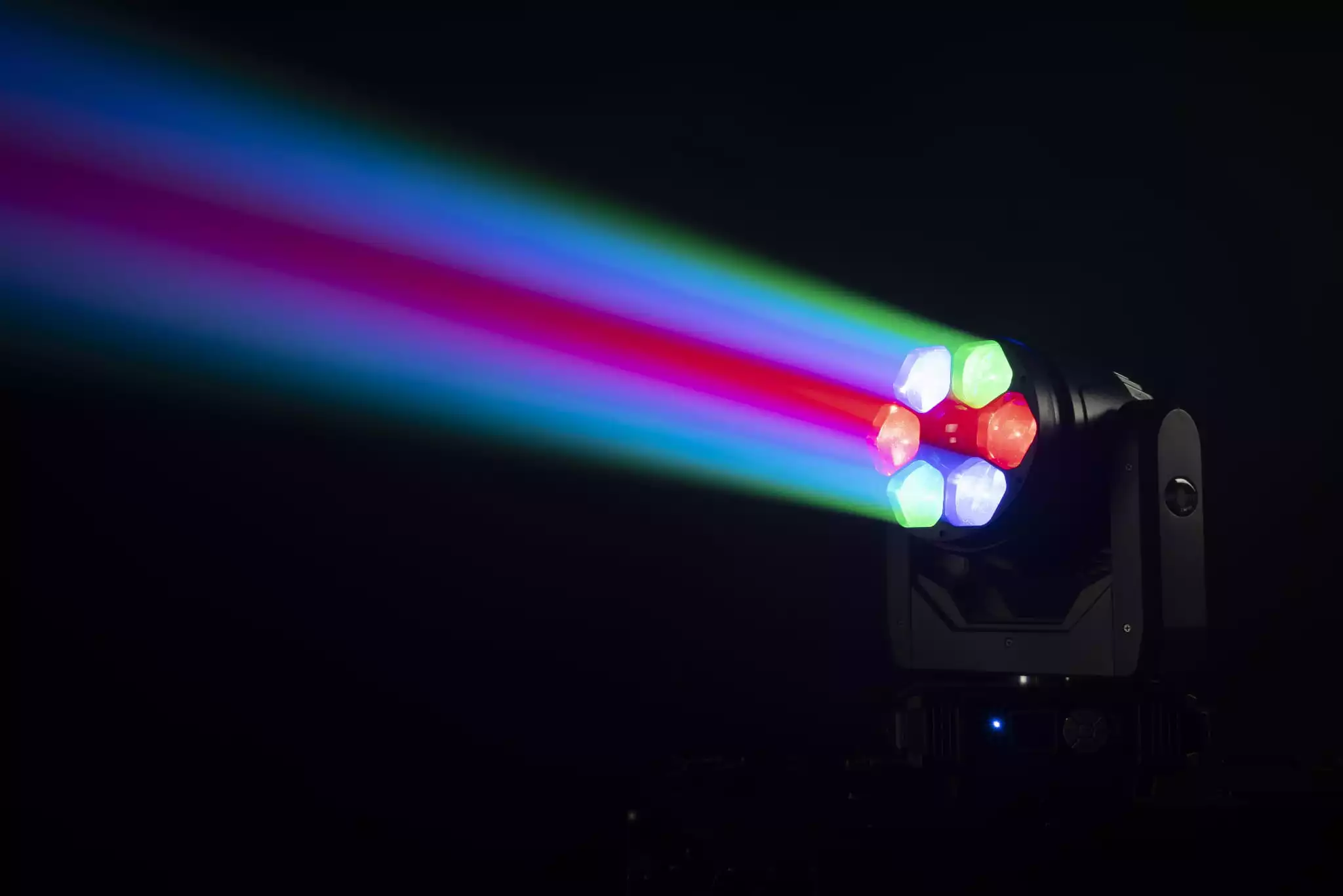

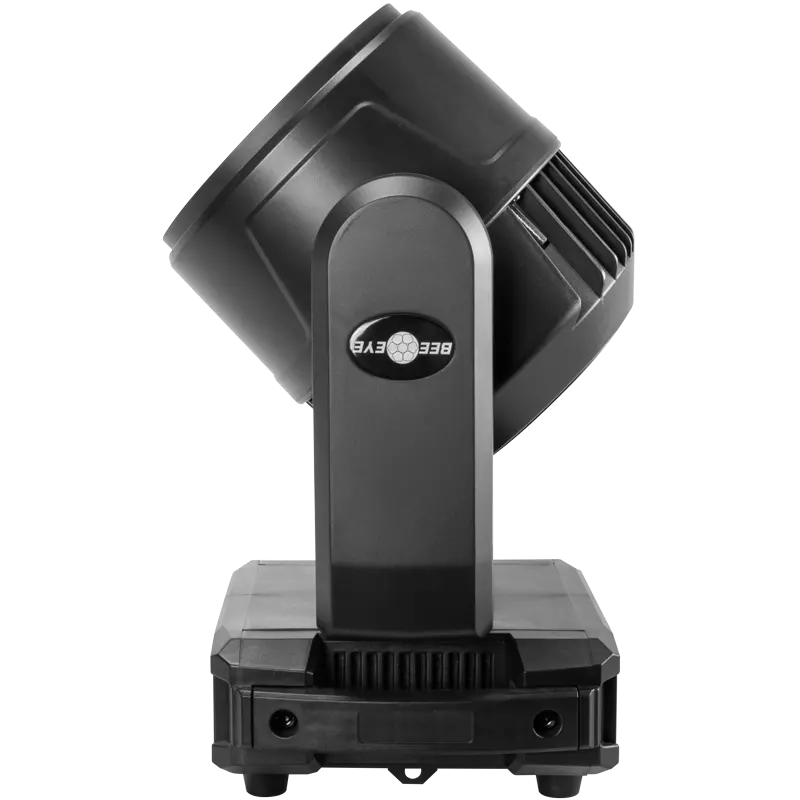

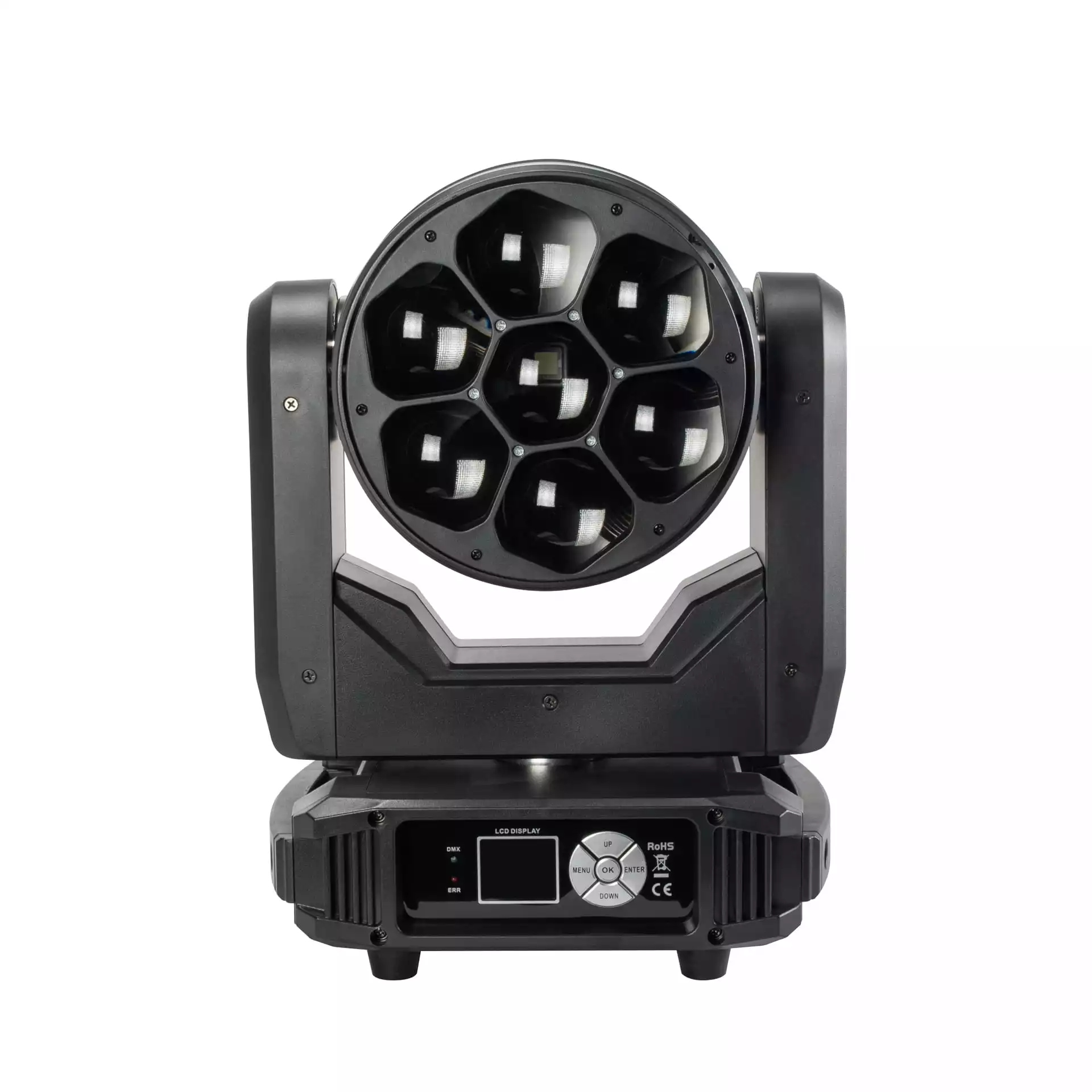

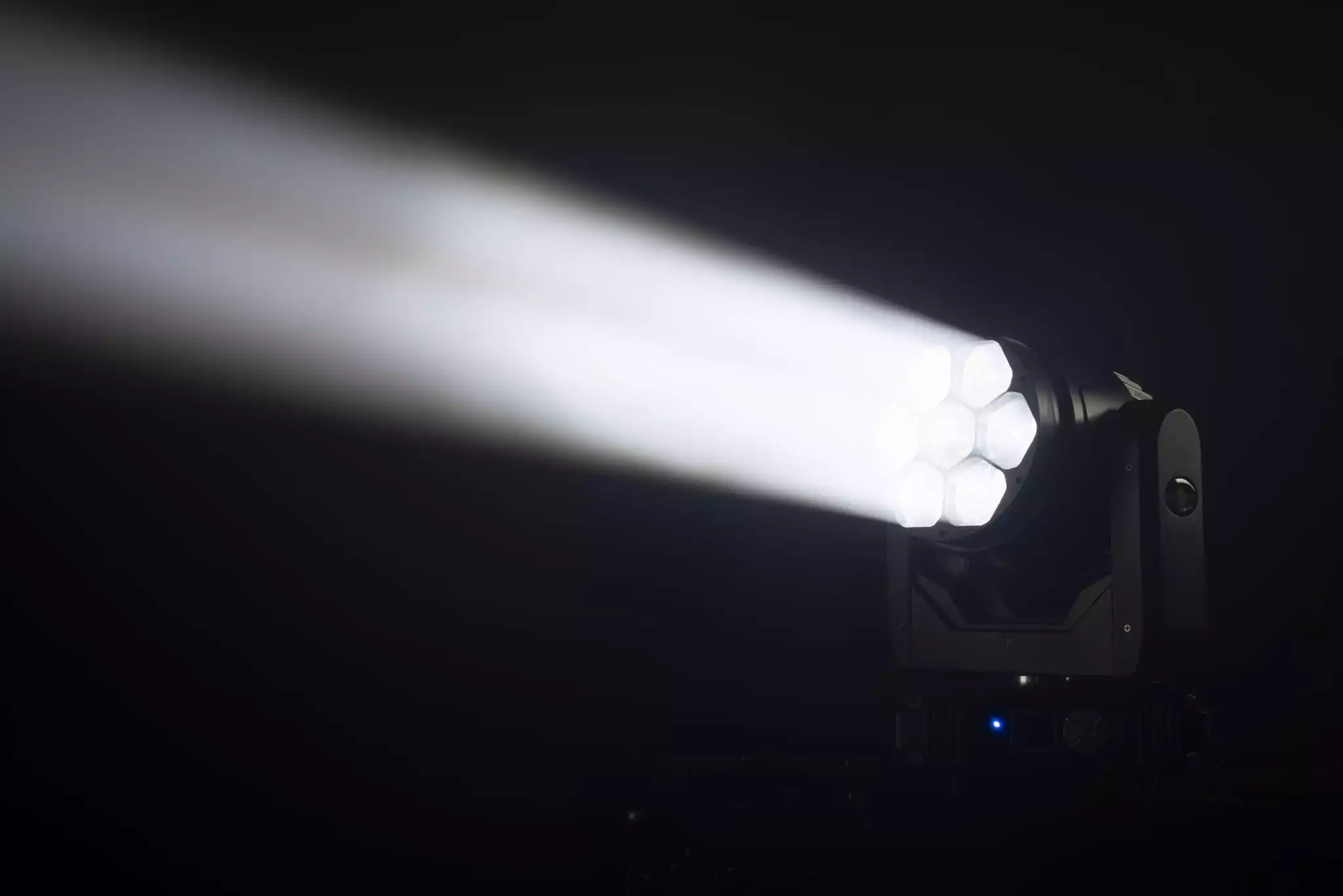

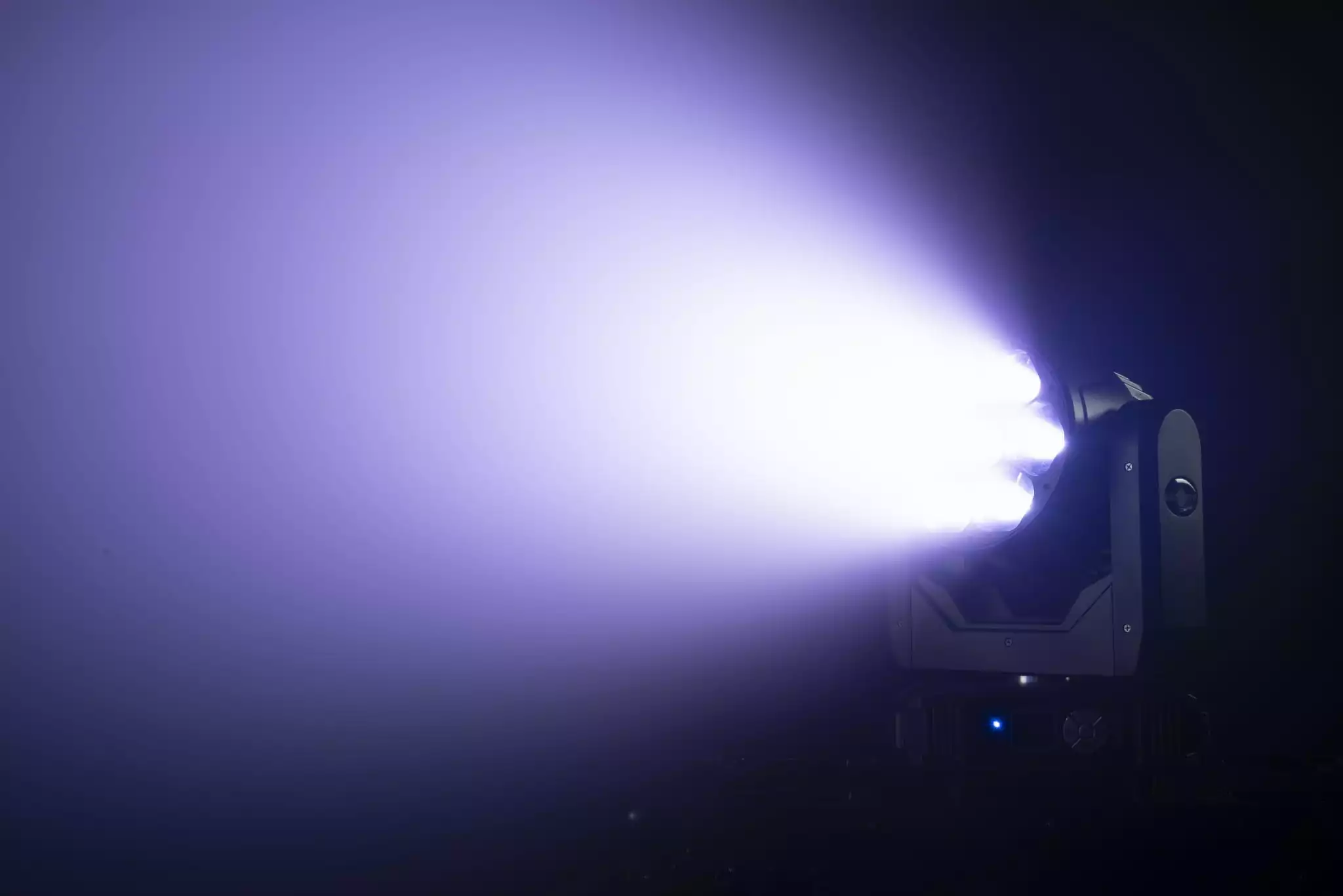

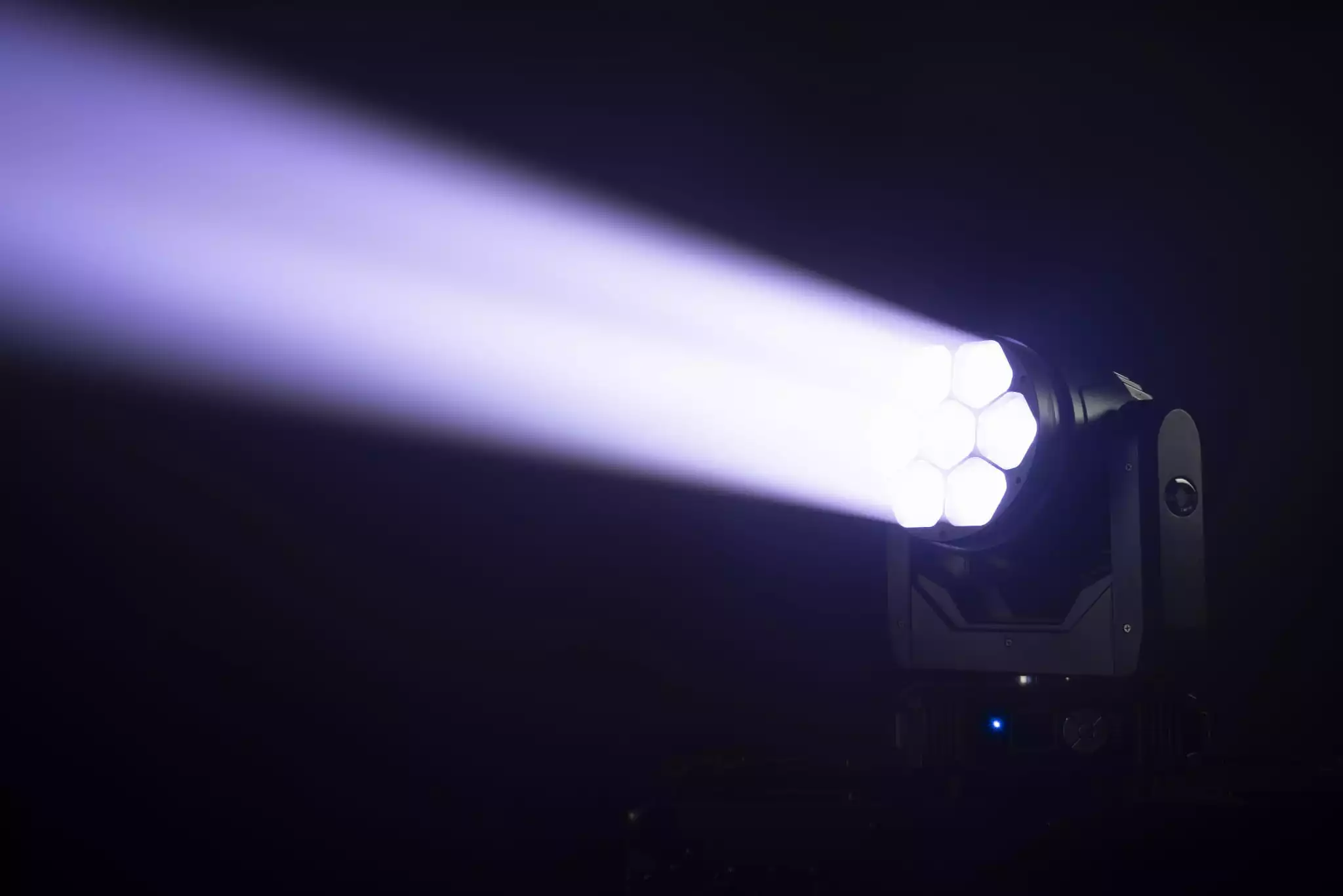

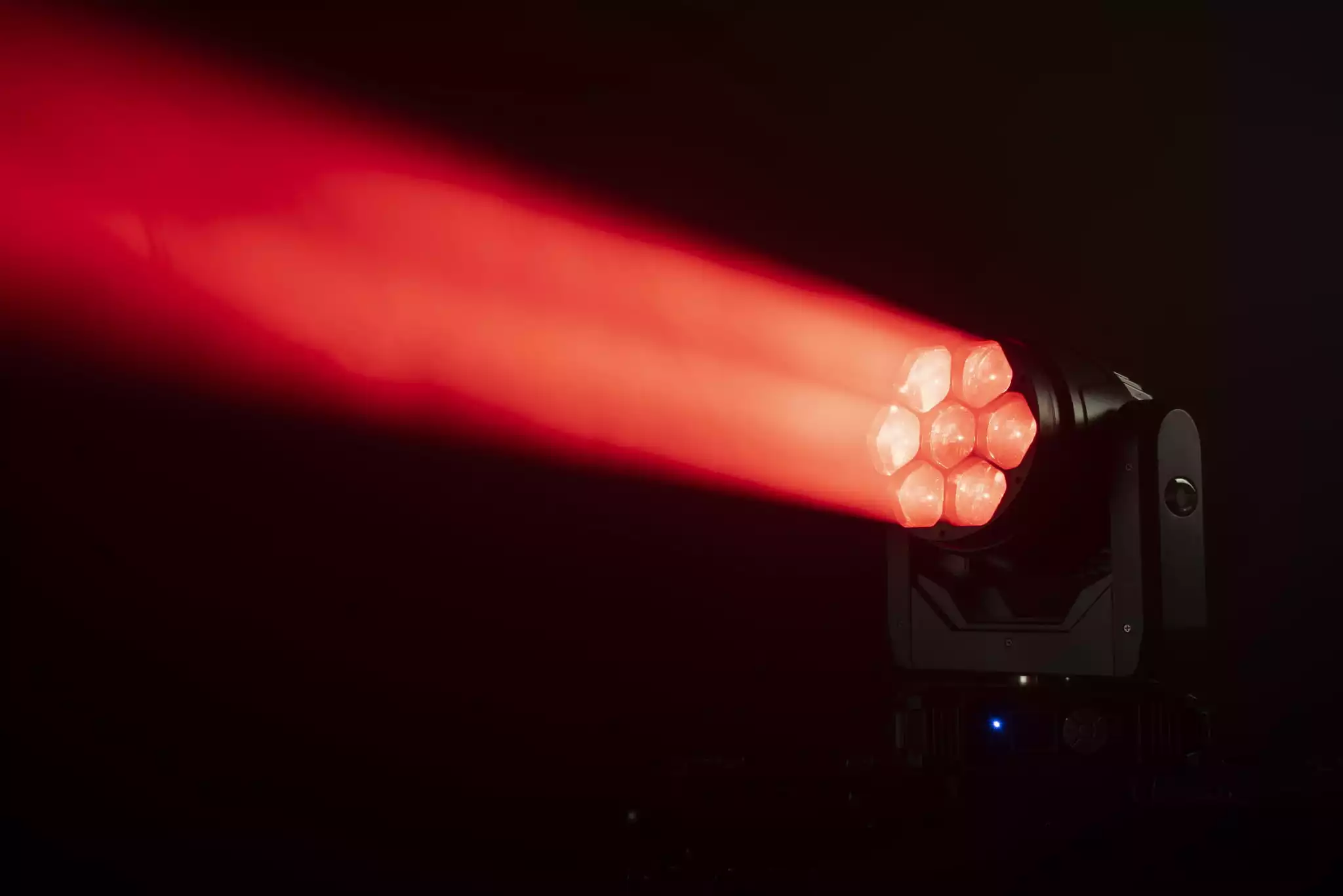

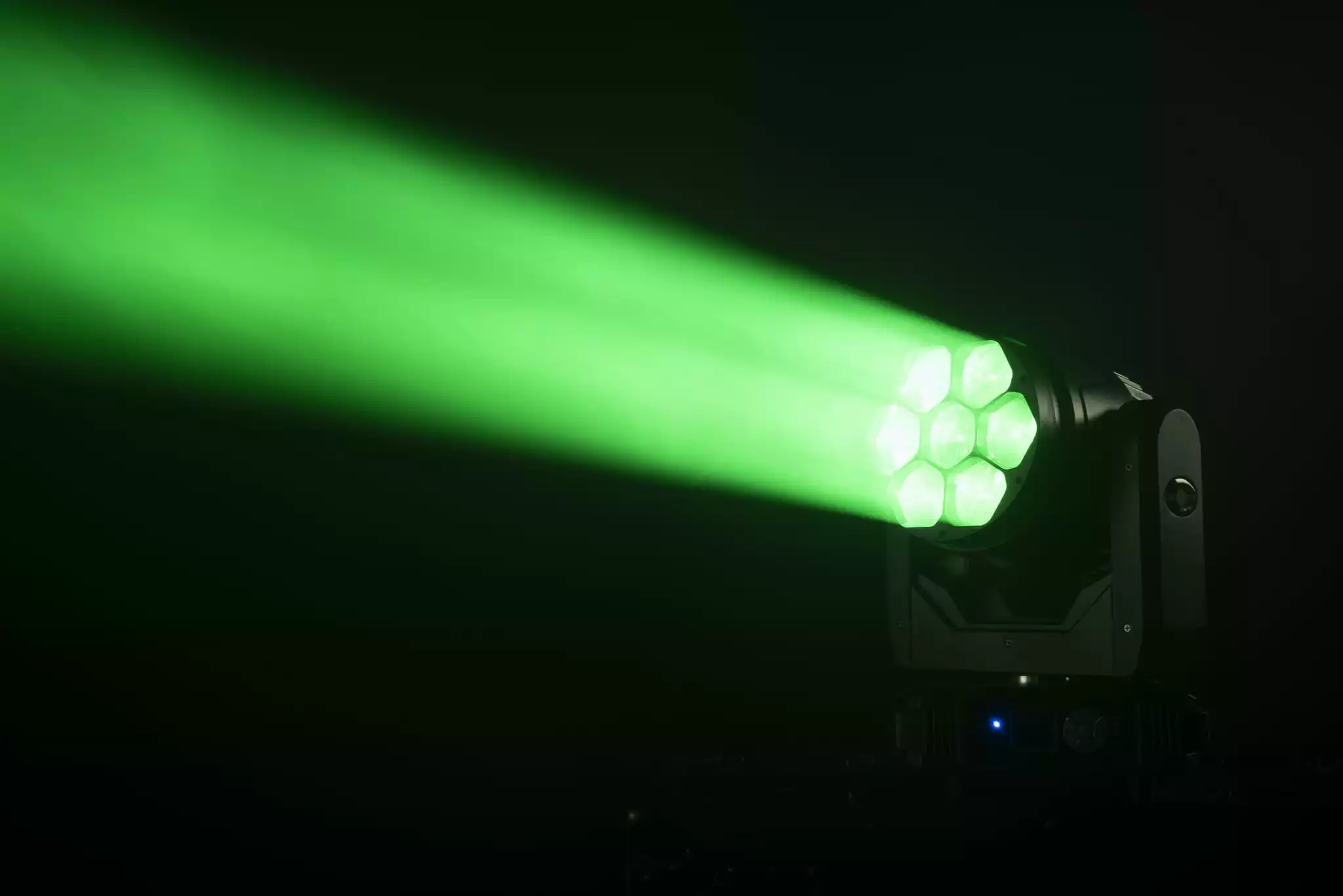

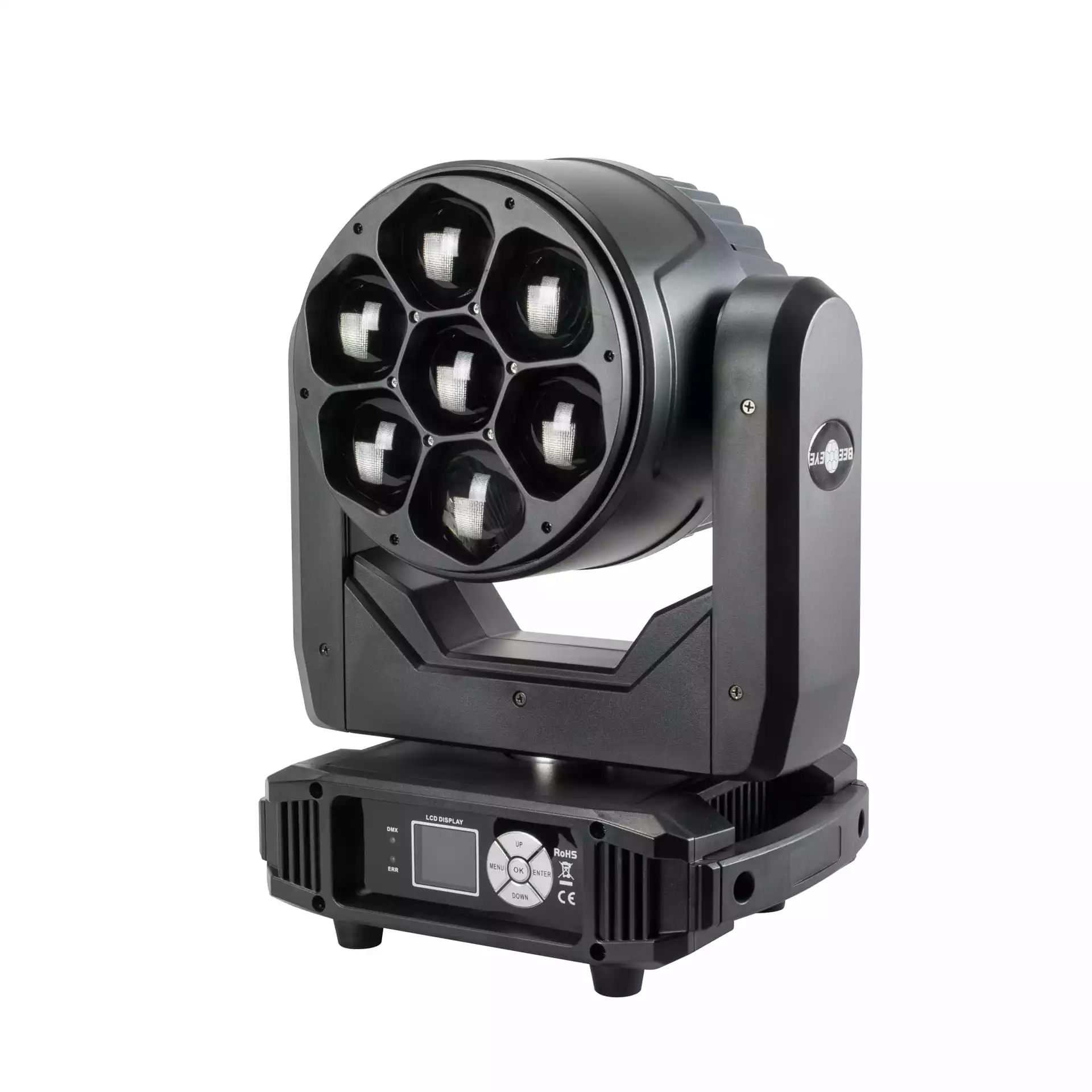

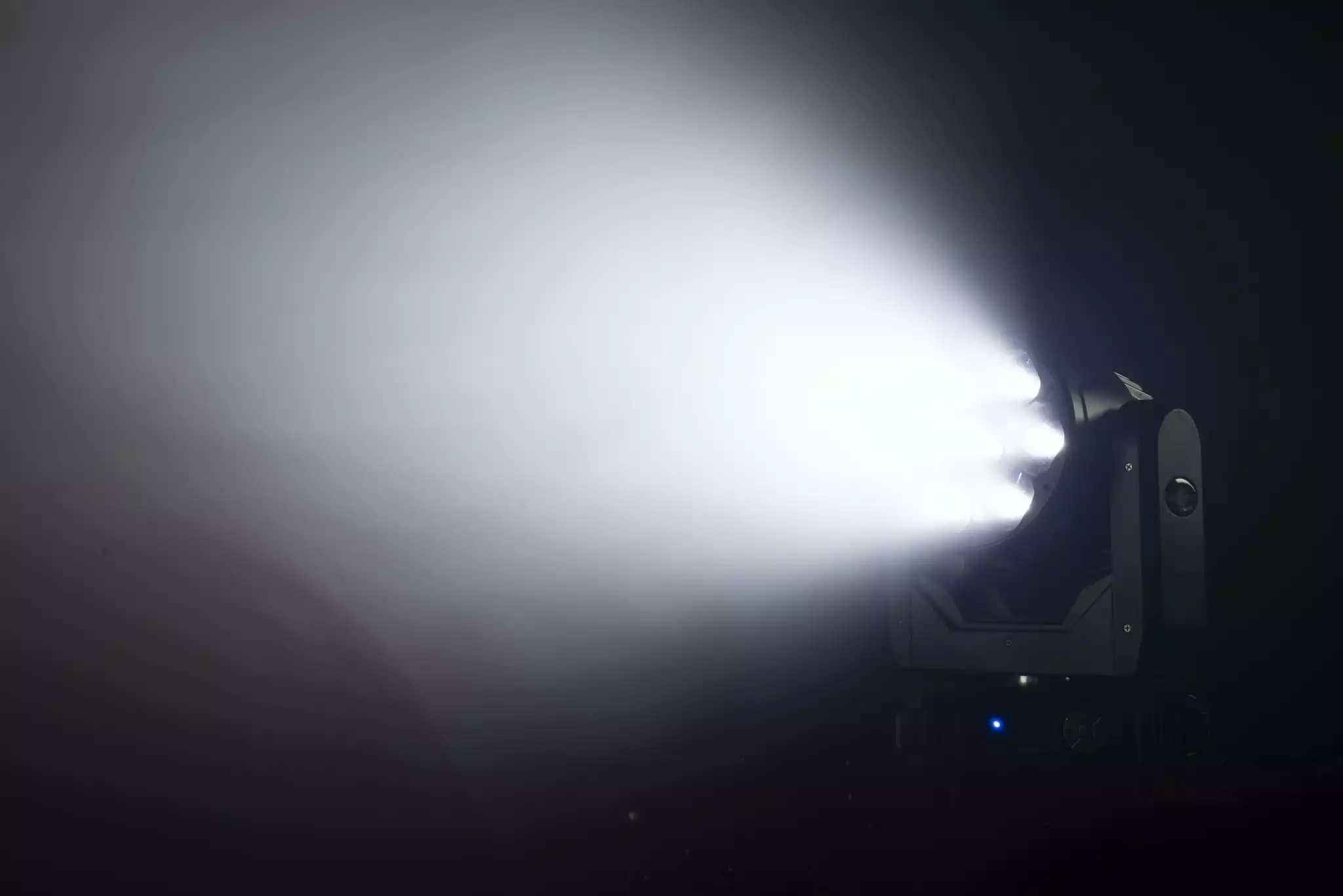

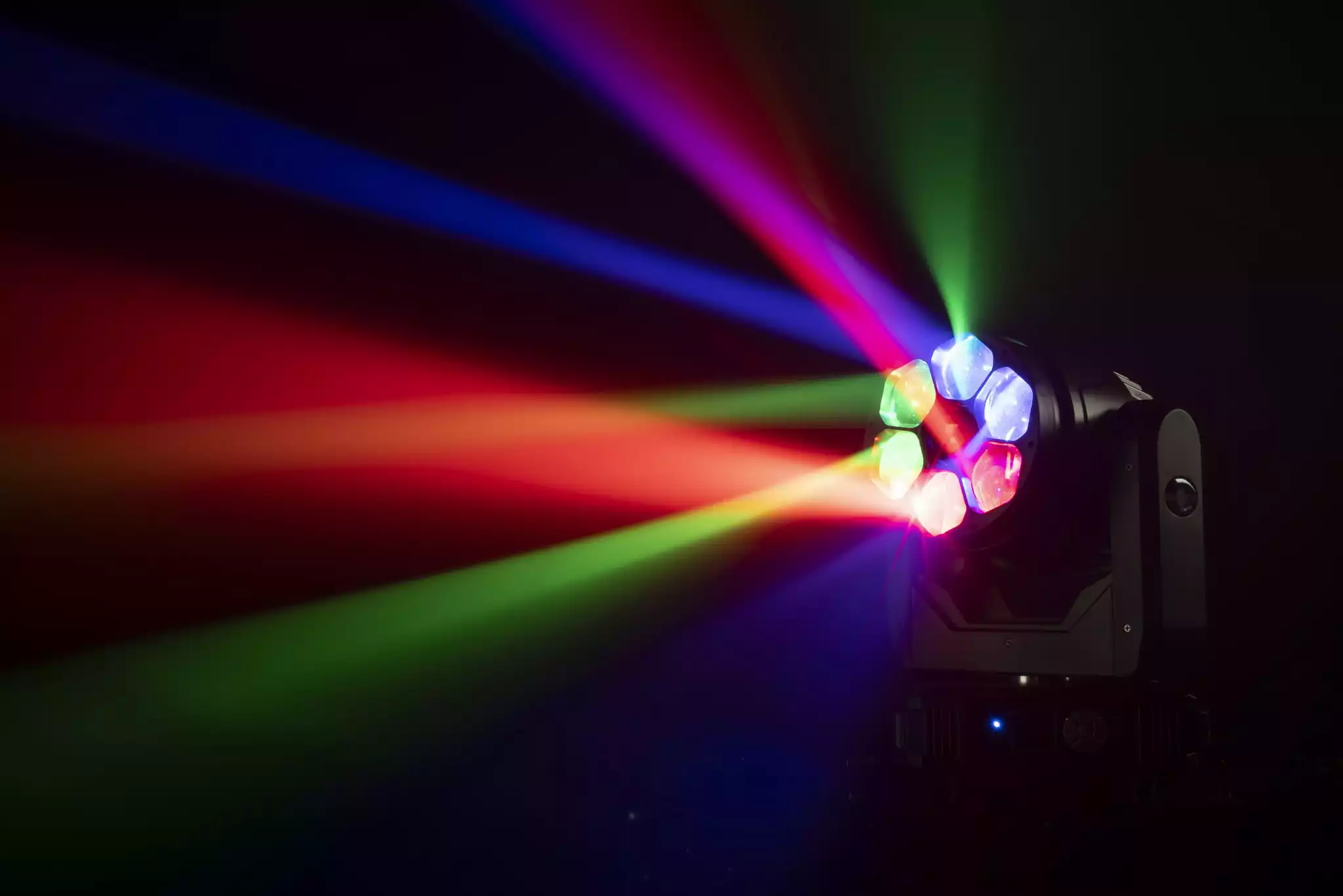

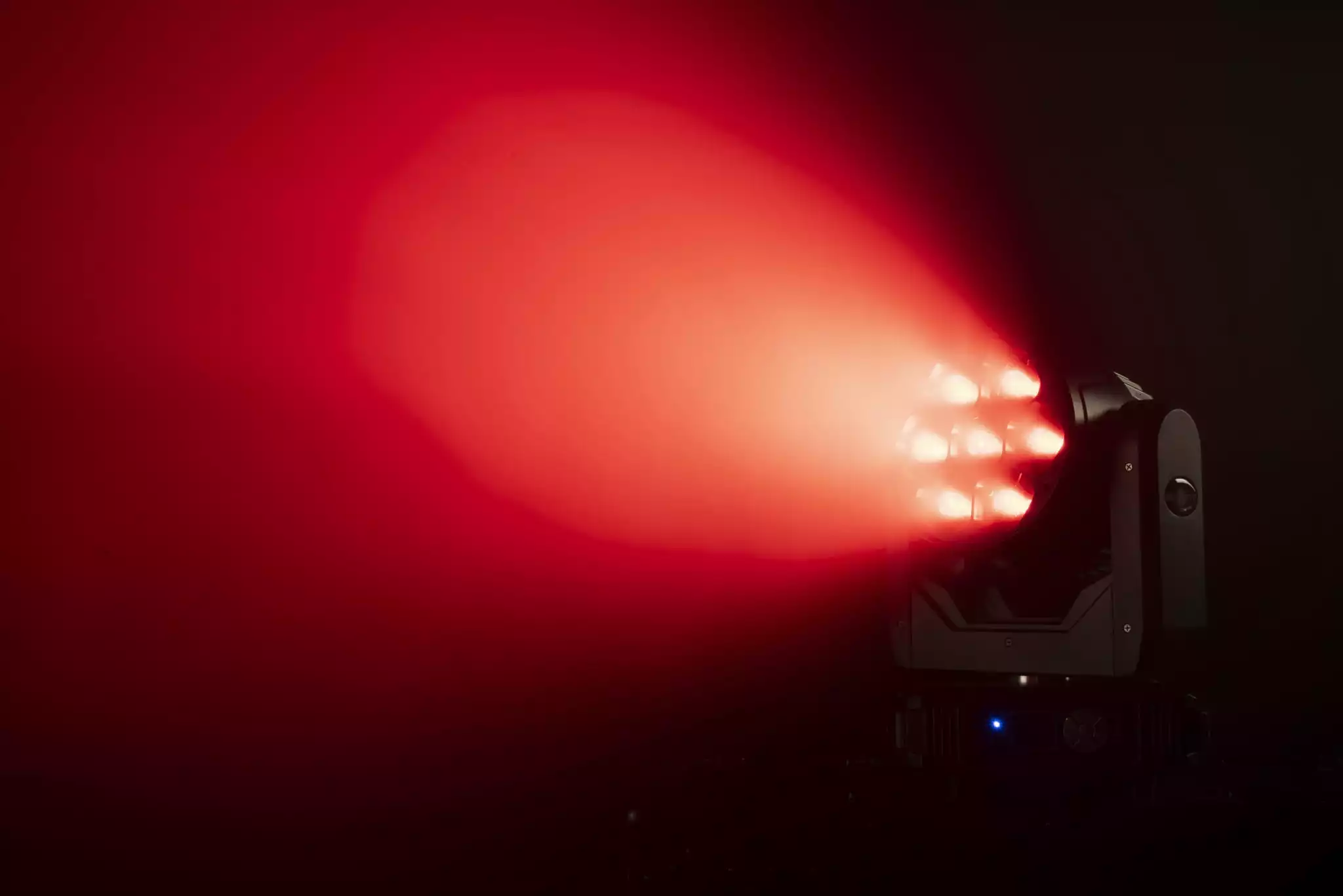

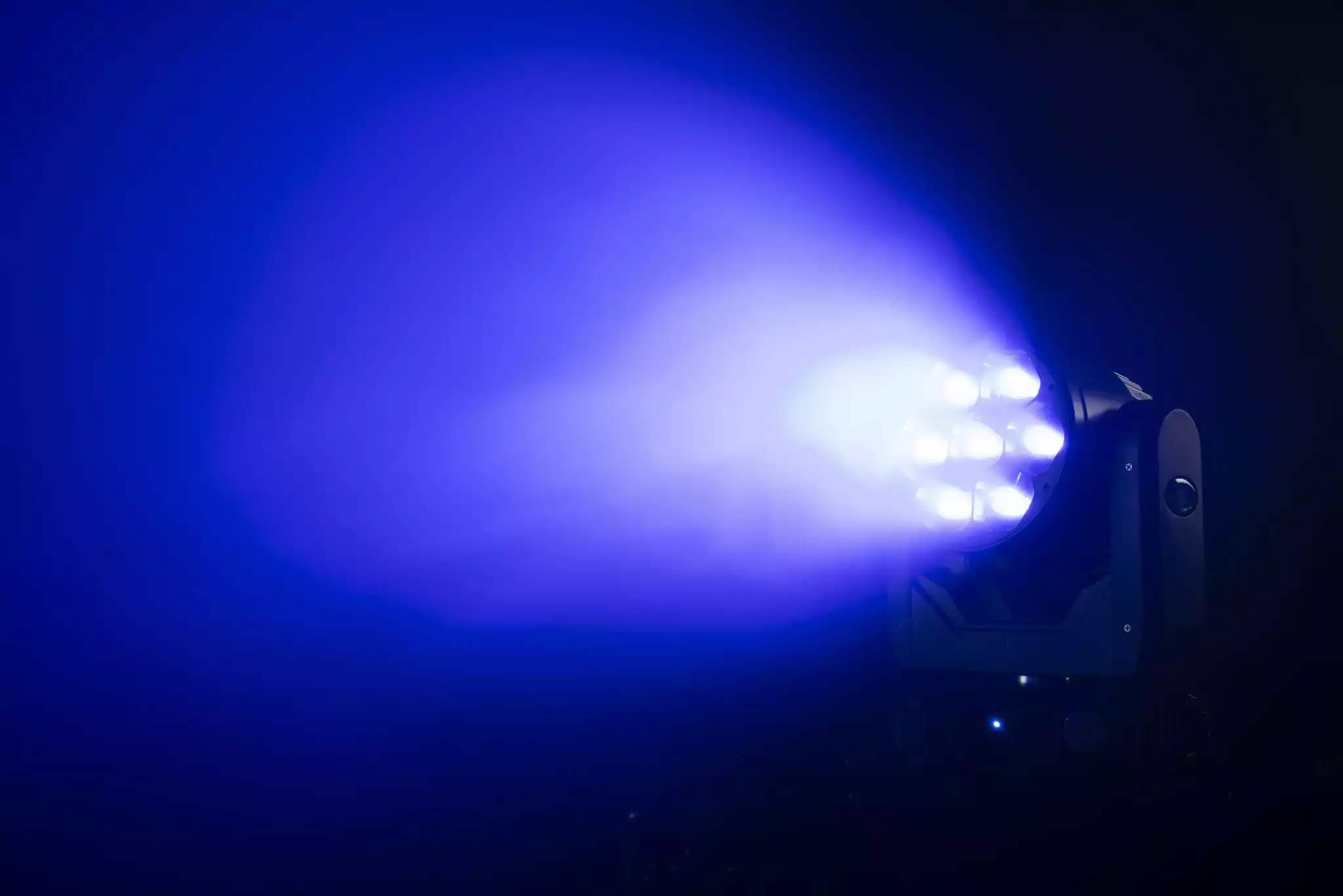

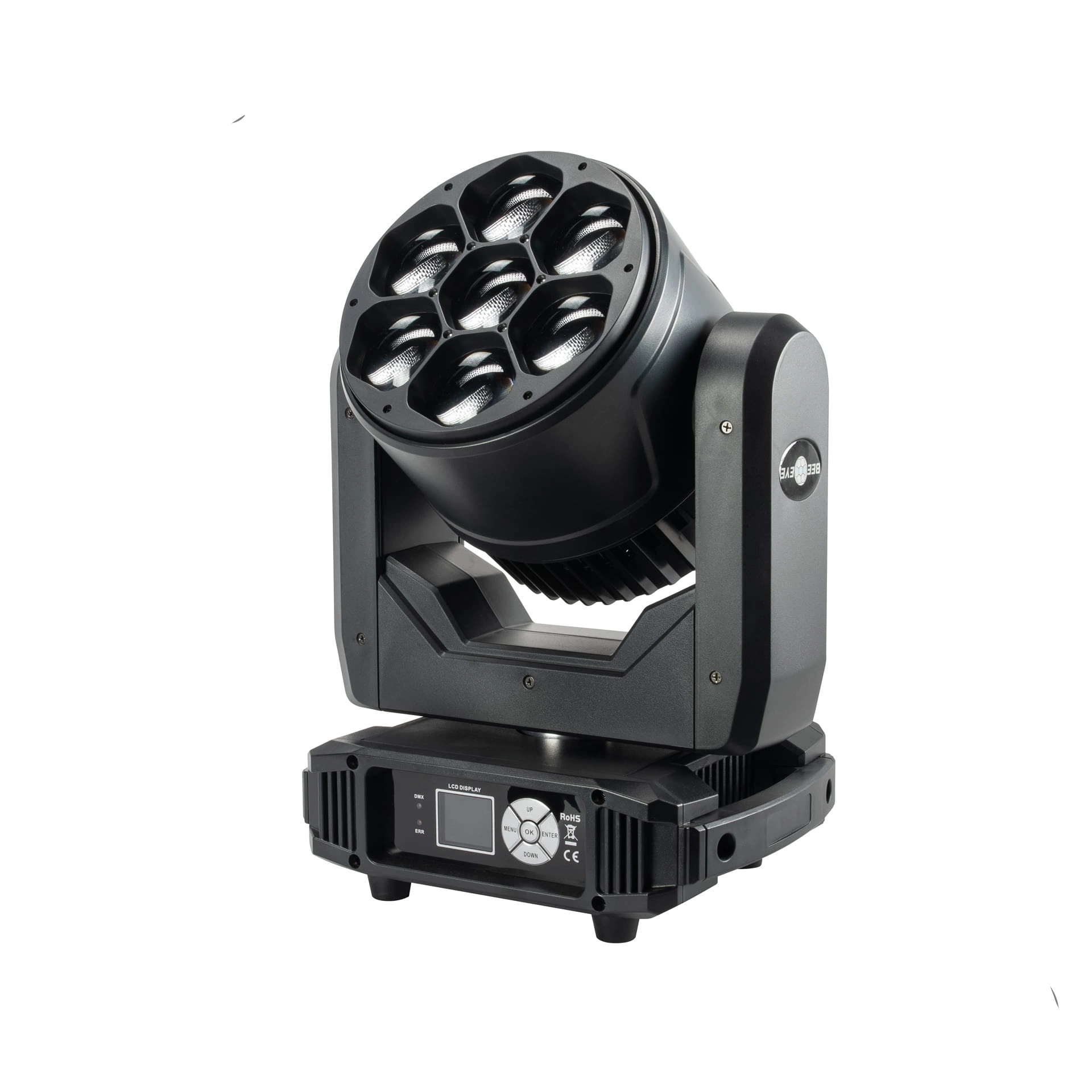

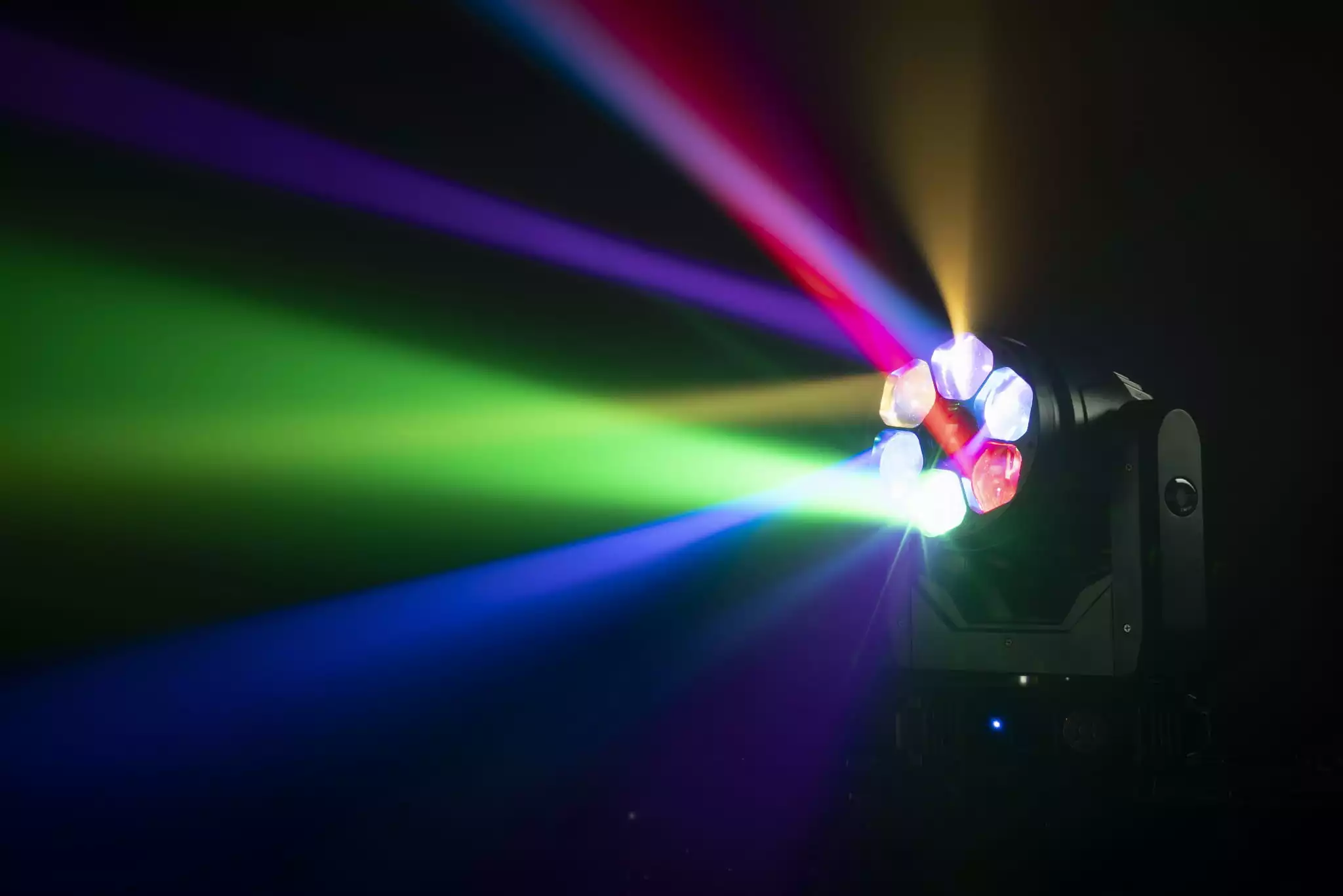

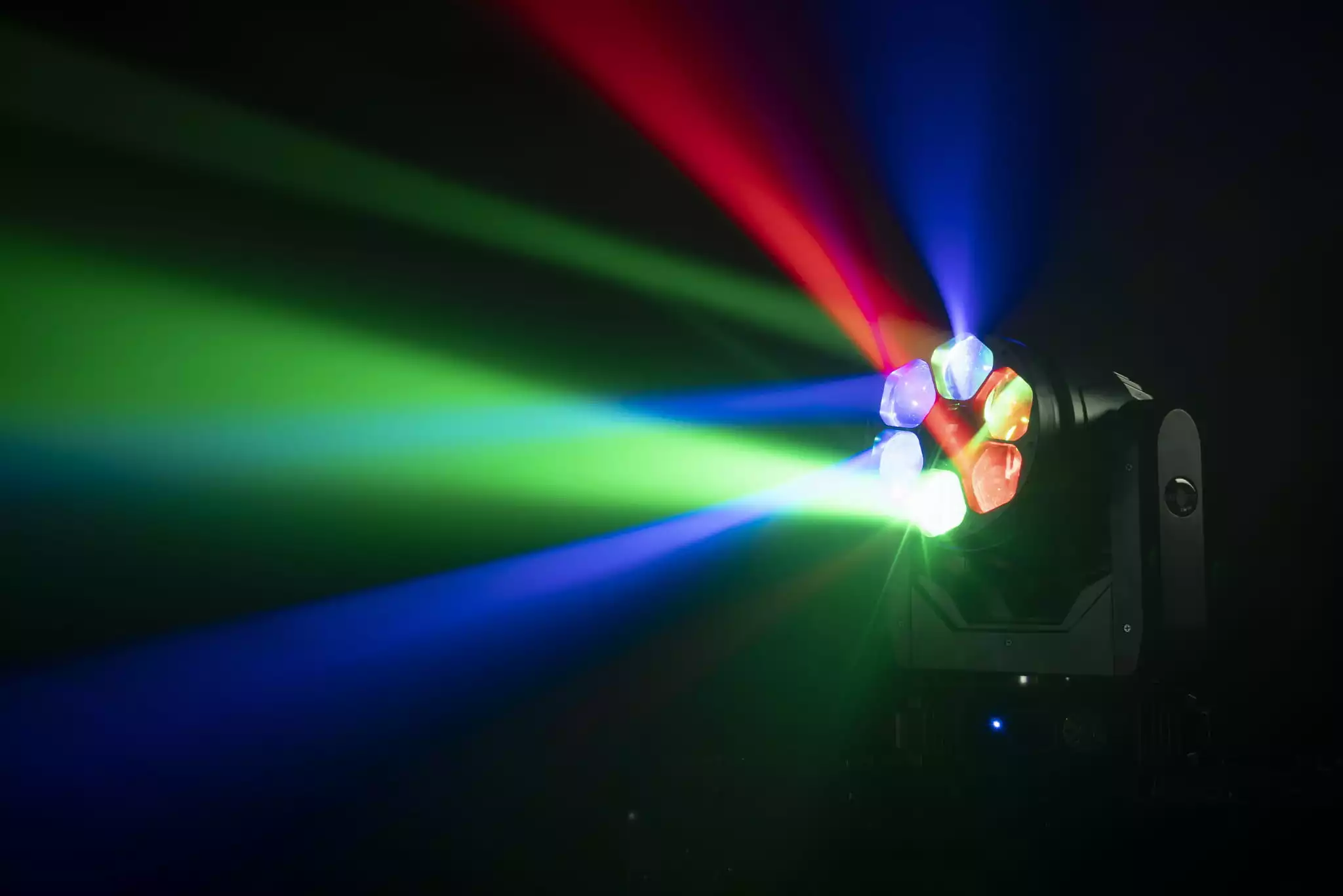

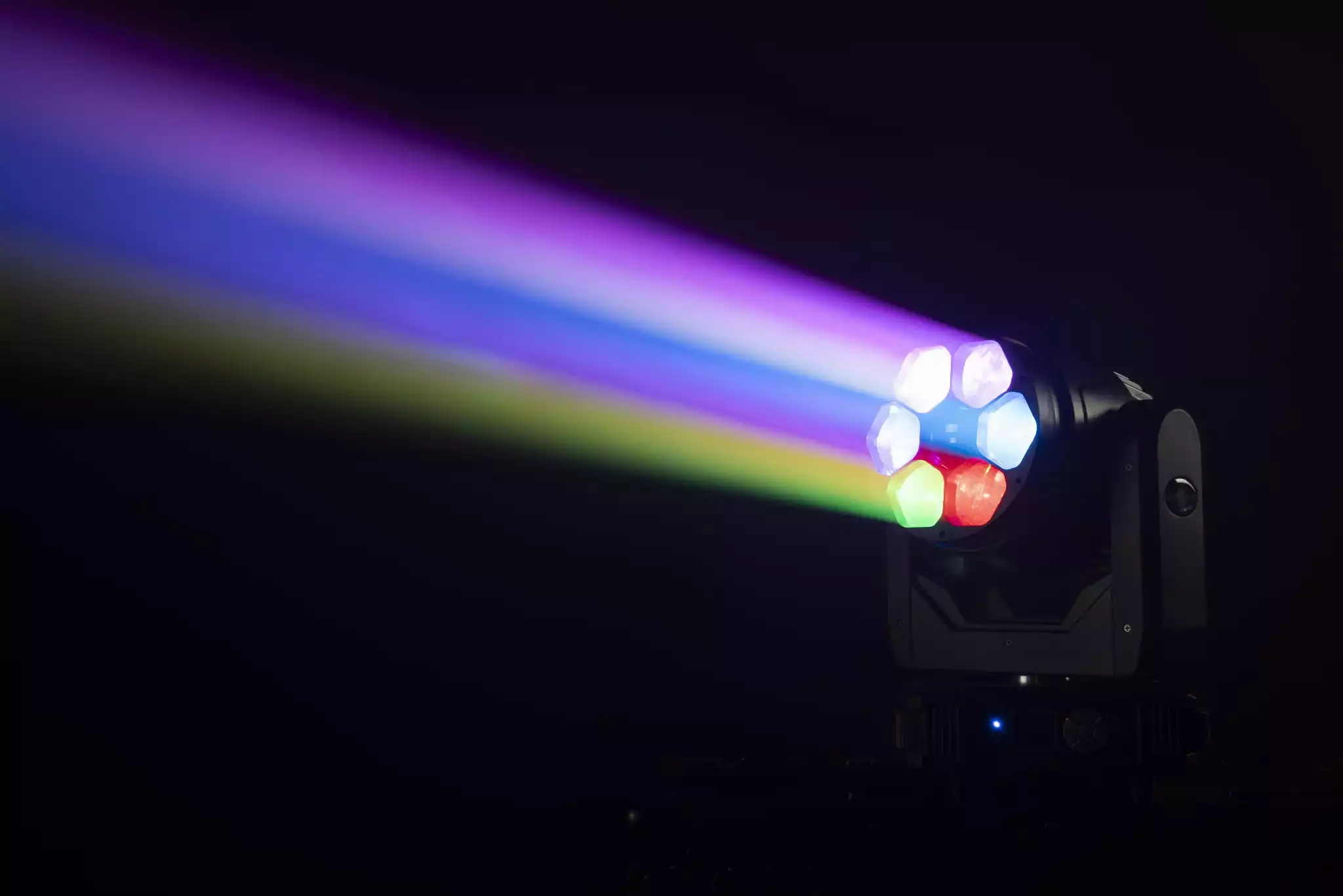

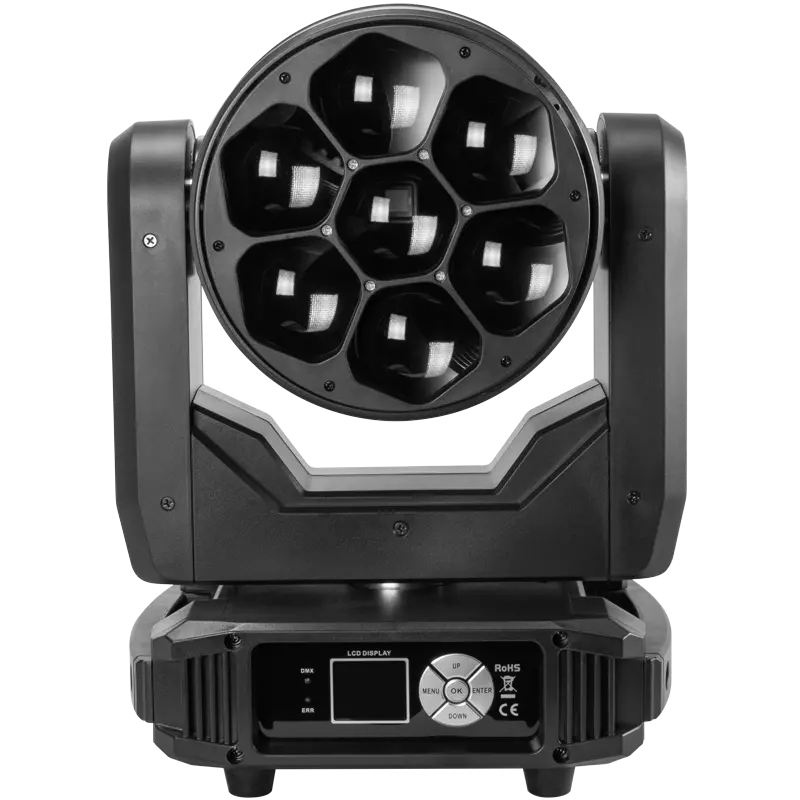

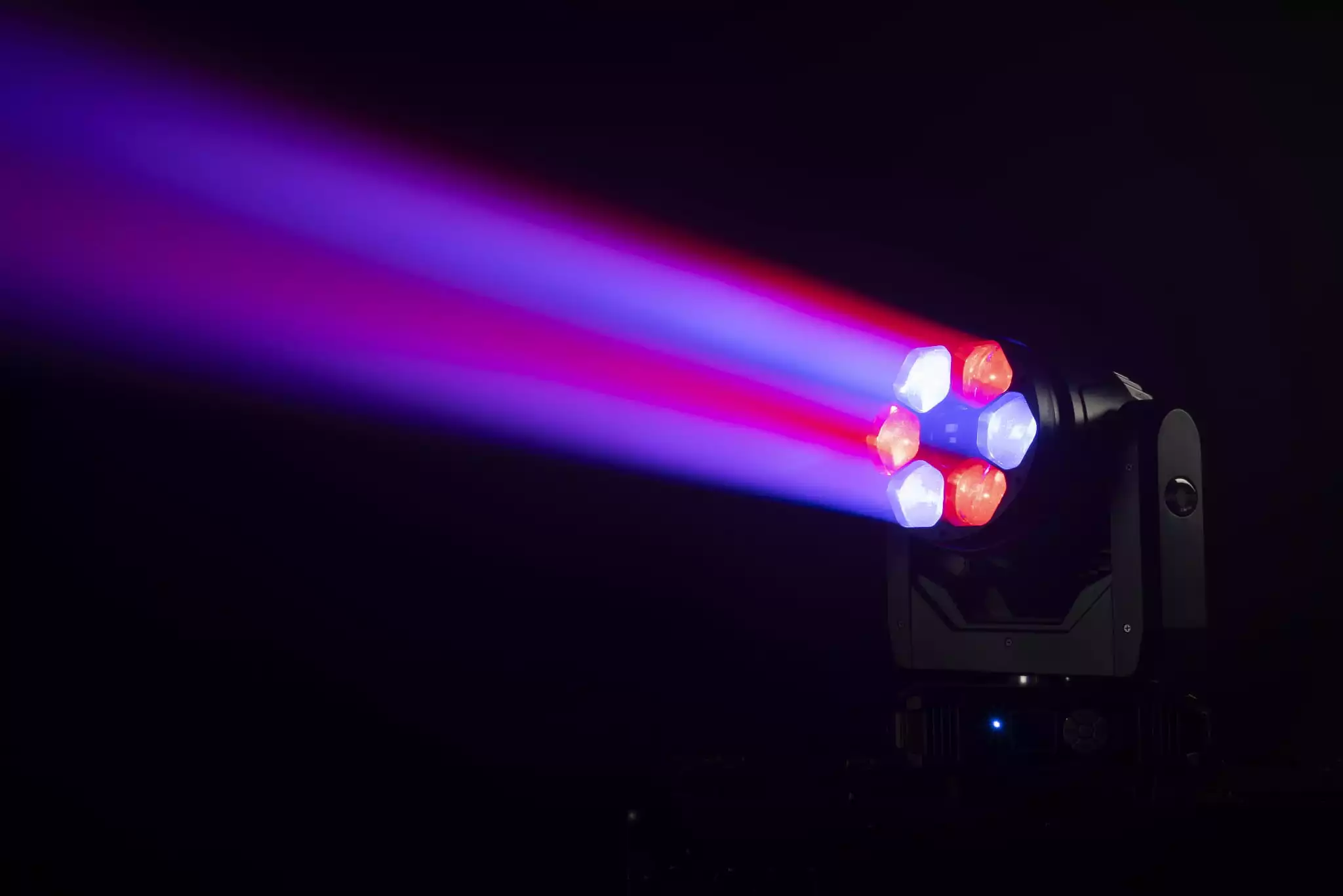

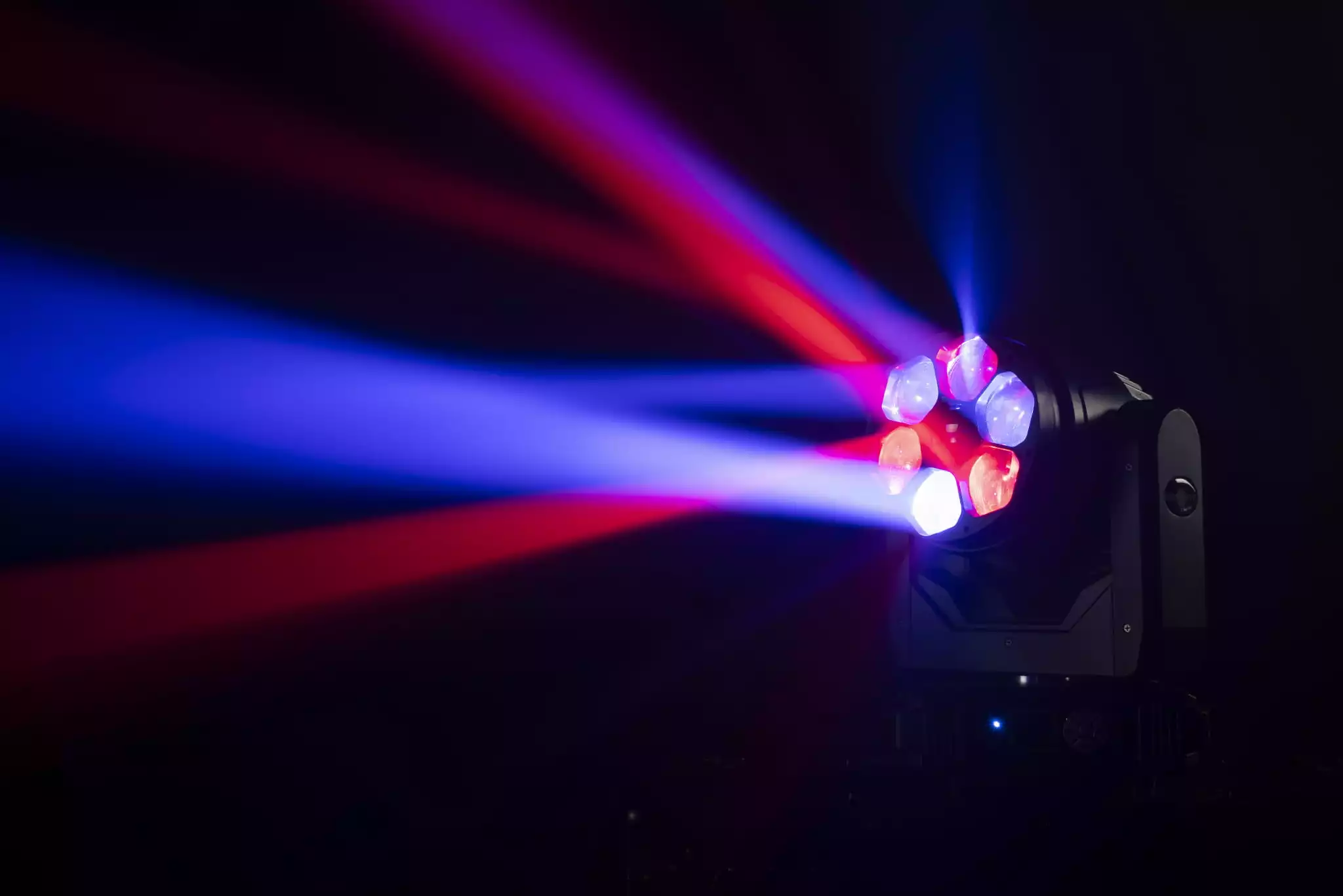

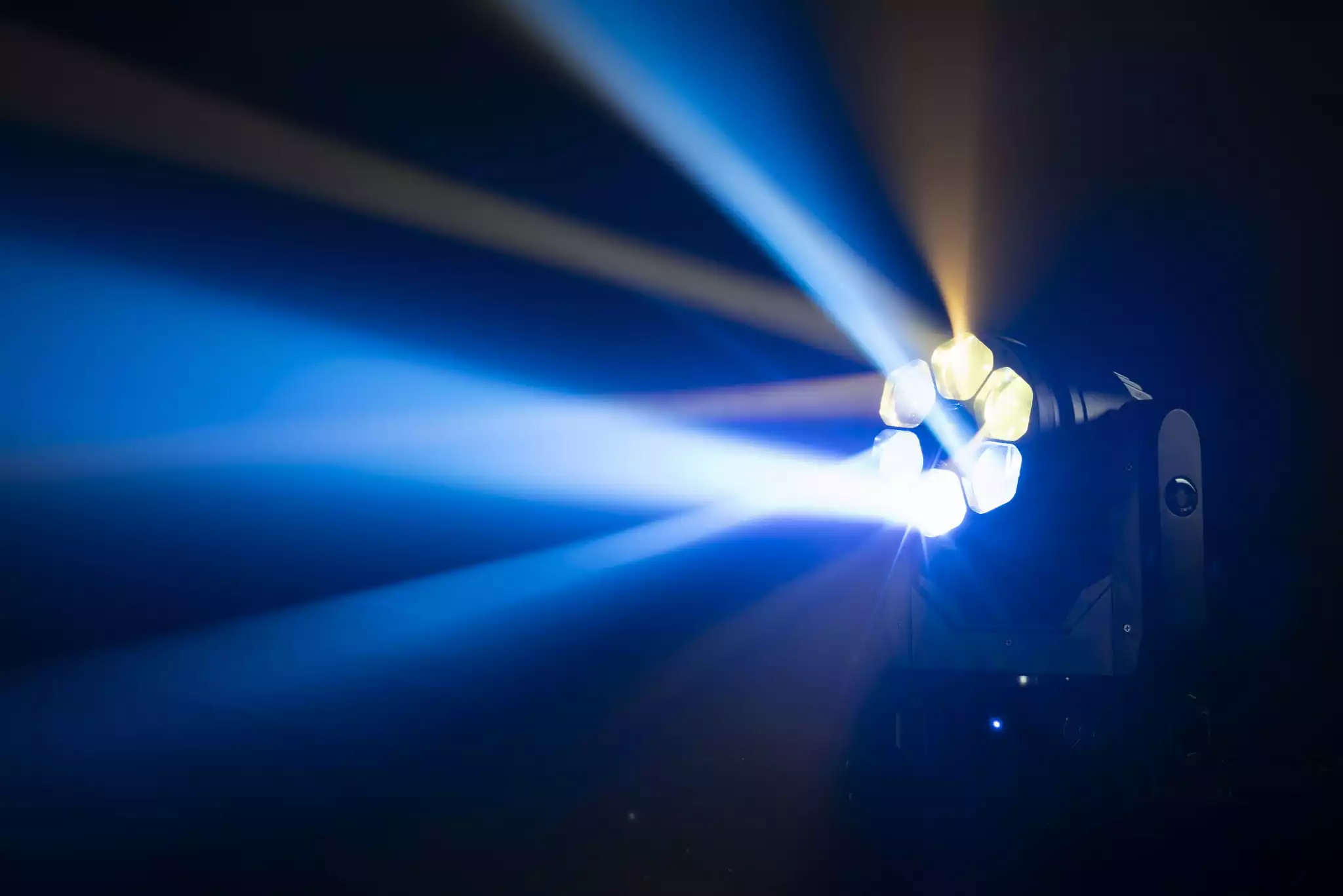

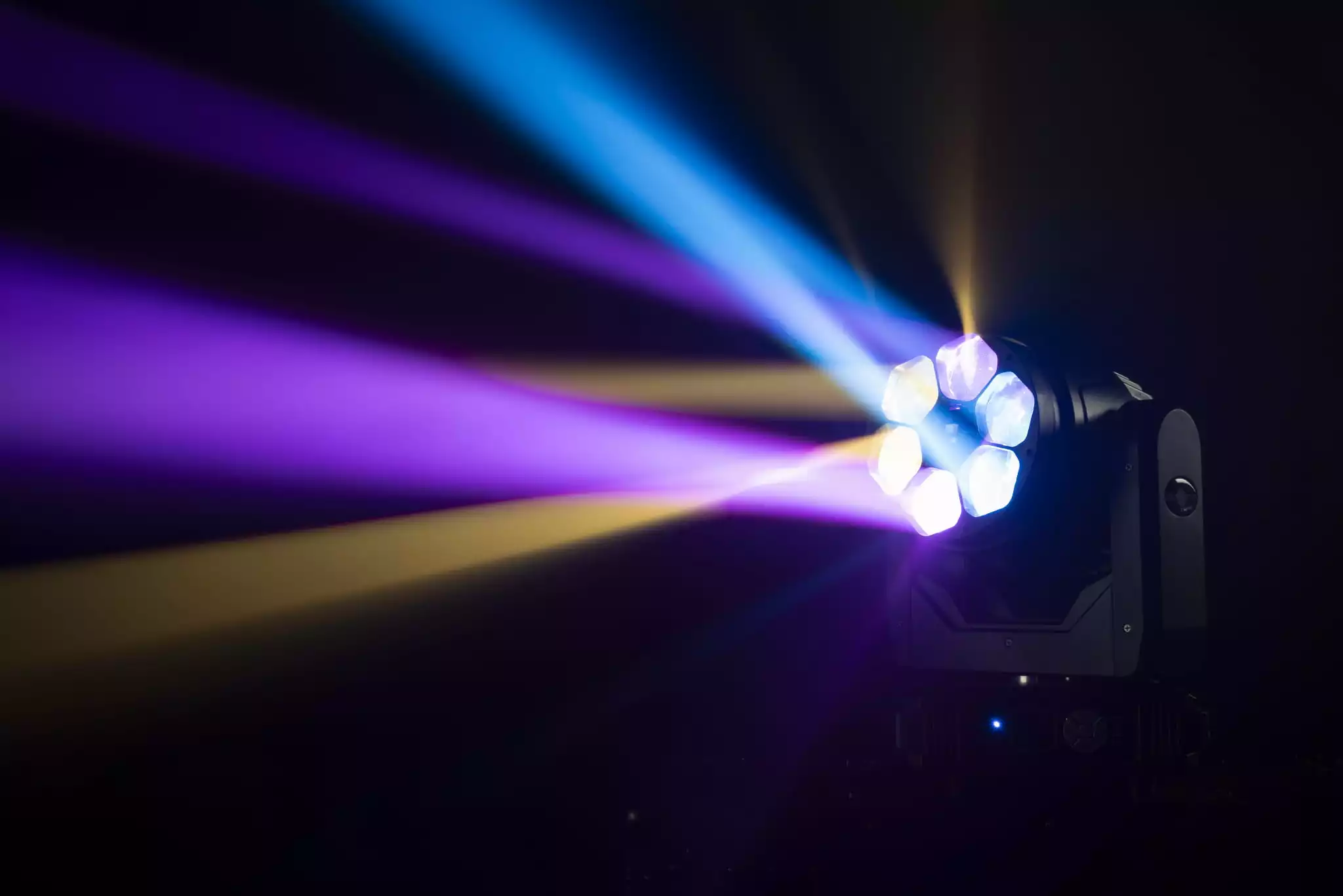

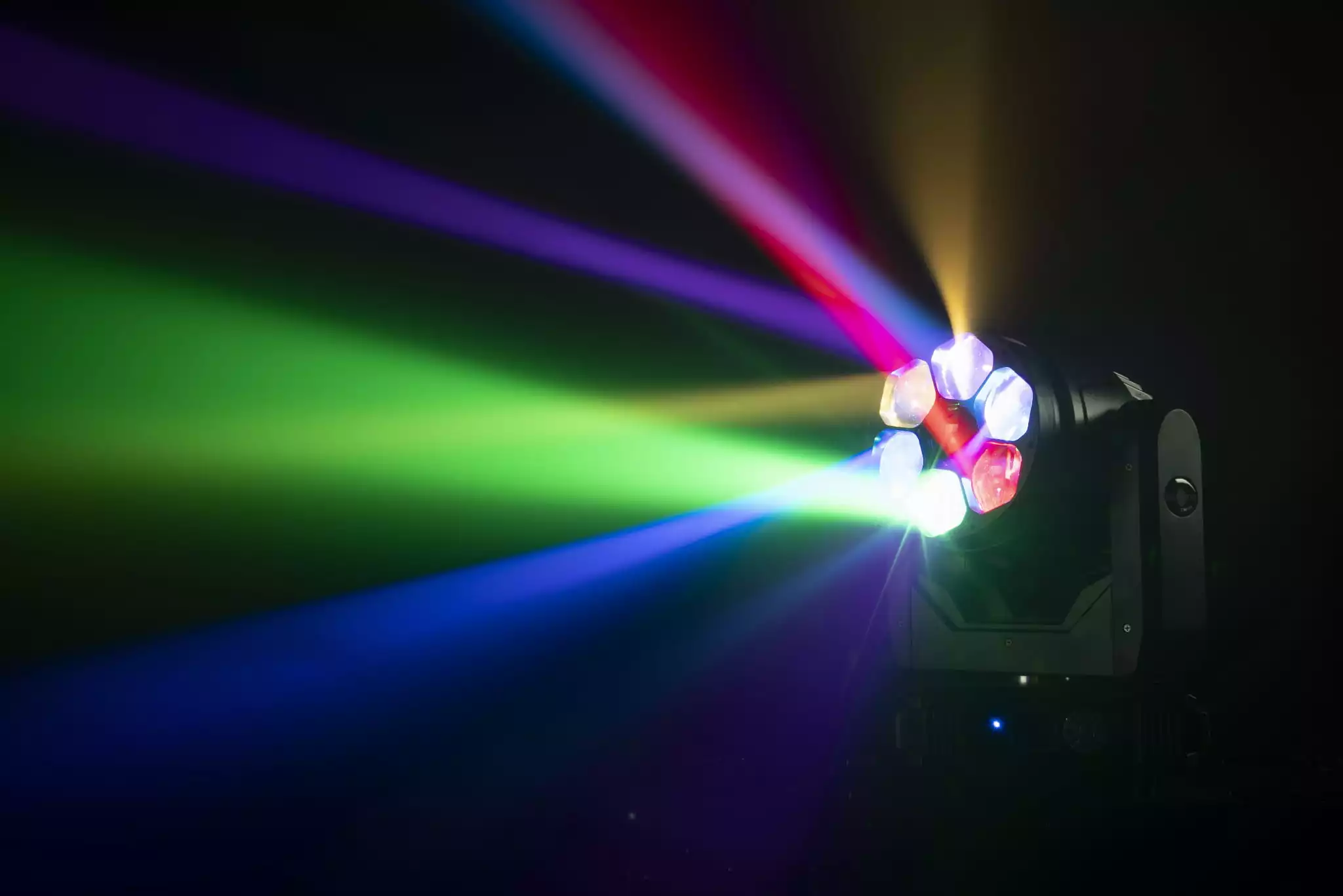

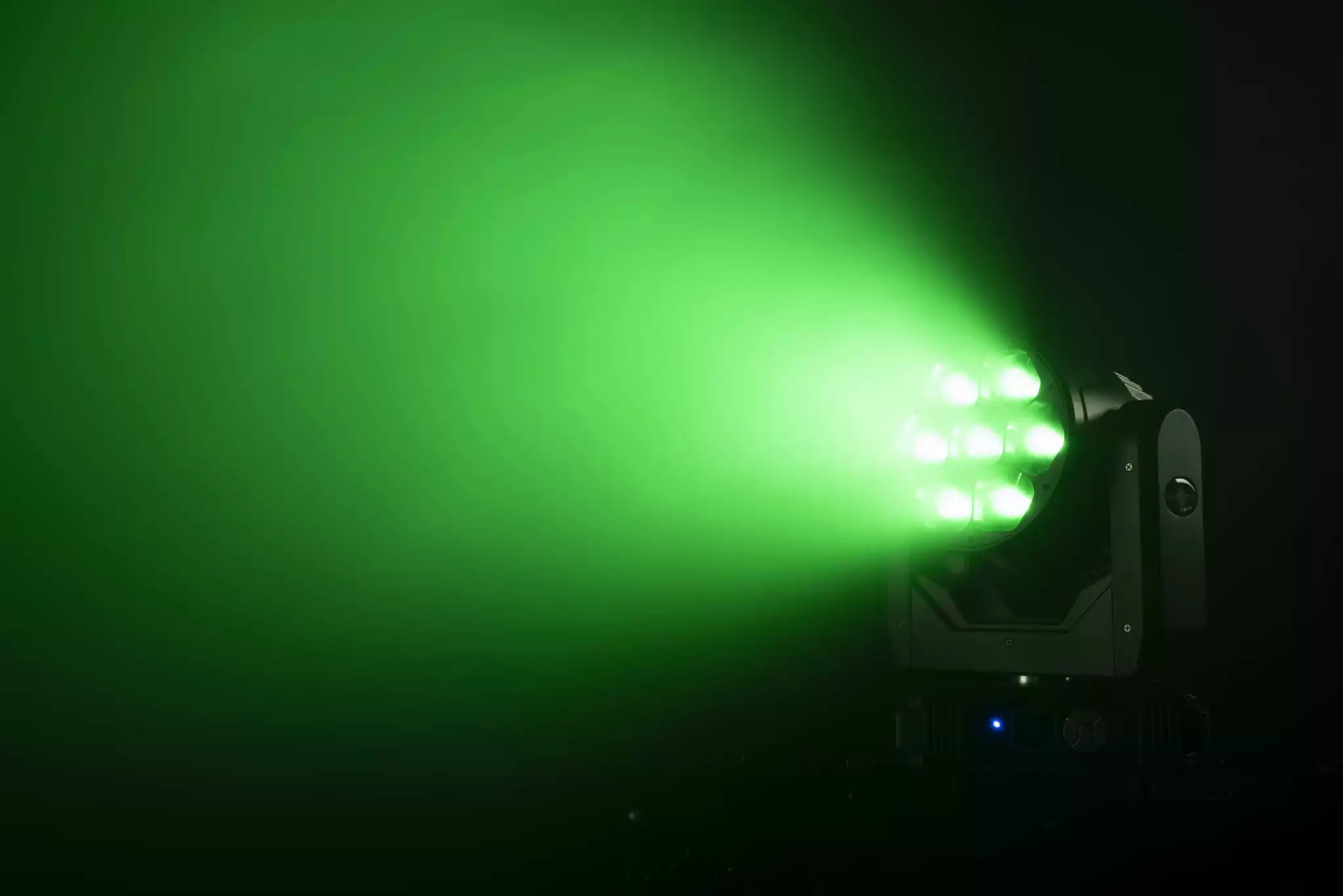

WASH-BE LED 740 PRO is a movable wash device, with high power thanks to the use of 7x40W RGBW diodes, ensuring smooth mixing of CTO colors. Many operating modes (DMX512, RDM, Master-Slave, Sound Control, Auto Control), Macro color, kaleidoscope effect, shape, motorized ZOOM, compact ABS housing, with active cooling, make this device a useful tool for professionals.
In addition, quick response in the range of movement PAN - 540° TILT 270° ensures excellent results, and additional functions enable the device to work as a Beam, focusing the emitted light stream.

When purchasing 4 devices, you receive a dedicated Case, enabling safe storage and transport of devices and accessories.

Specification WASH-BE LED 740 PRO

Power Source (AC)
Supply voltage 100-240V
Power consumption 350W
Power frequency 50-60Hz
Light source
Type LED (RGBW)
Quantity 7
Power (W) 40
Number of control sections 7
Color Rendering Index (CRI) 65
Color Mixing System
RGBW 8 bit
Dimming
Dimming 16 bit
ZOOM
ZOOM Motorized (16 bit)
Beam angle
Beam angle Range (3,5-55 ⁰)
CTO
CTO smooth
Strobe - frequency
Frequency 1-20Hz
Pulsating Yes
Random Yes
DMX control
Number of modes 3
Number of channels 23-51
Movement
Range PAN 540 ⁰
Range TILT 270 ⁰
Regulation 16 bit
Modes of operation
DMX512 Yes
RDM Yes
Sound control Yes
Auto control Yes
Master-slave Yes
User Interface
Physical buttons Yes
Color display Yes

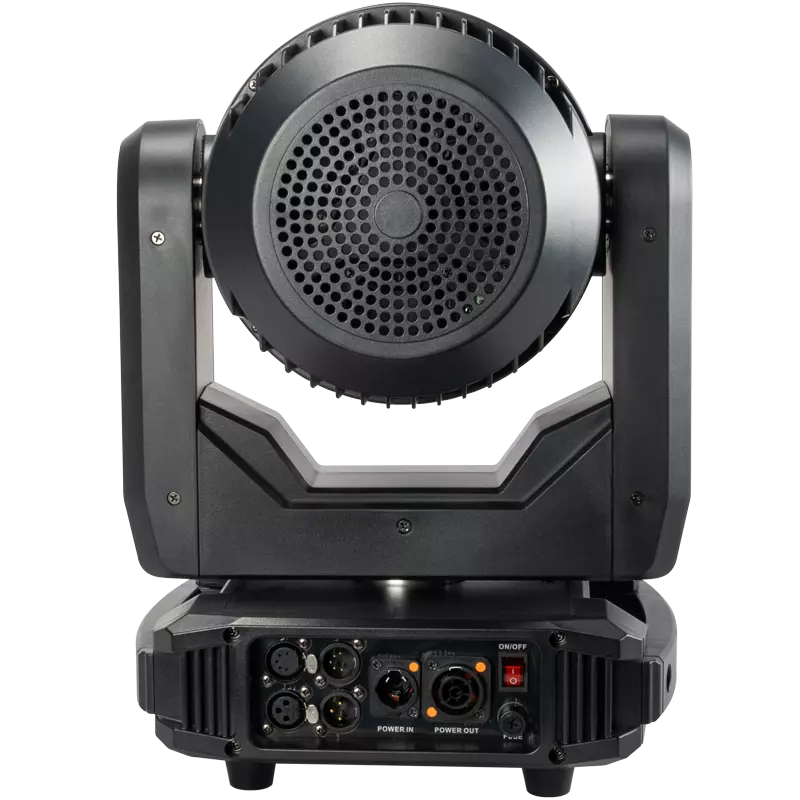

Connectors
AC IN TrueCon IP65
AC OUT TrueCon IP65
DMX IN 3-pin DMX
DMX IN 5-pin DMX
DMX OUT 3-pin DMX
DMX OUT 5-pin DMX
Physical parameters
IP protection level IP20
Housing type ABS
Fixing Mounting hole
Fixing Security point
Blockade (Pan) No
Blockade (Tilt) No
Housing color Black
Cooling Active
Length [cm] 31
Width [cm] 23
Height [cm] 40
Weight [kg] 10
Contents of the package
Manual Yes

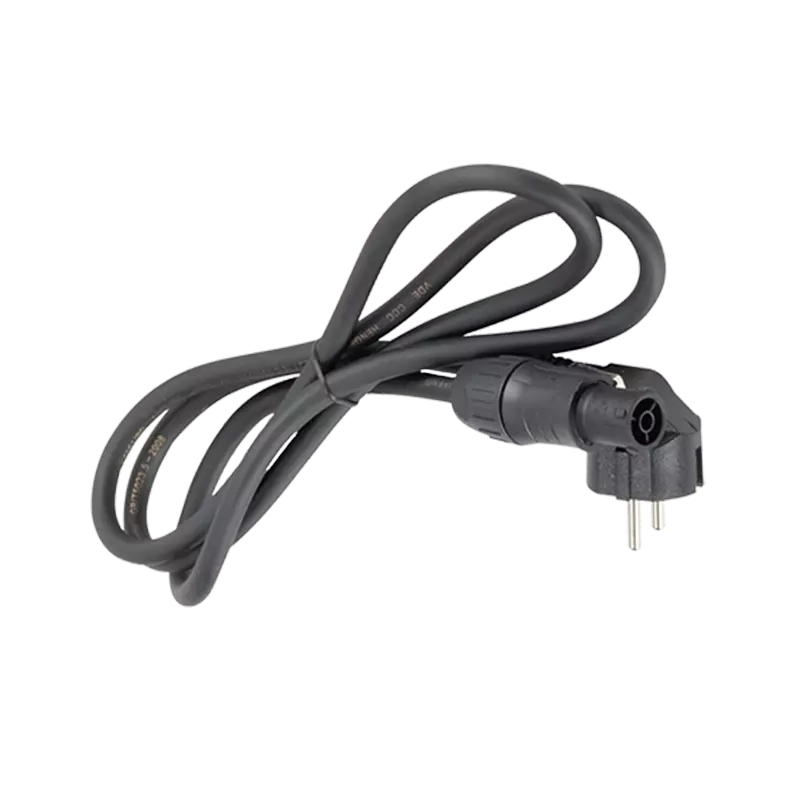

Wiring TrueCON
Device WASH-BE LED 740 PRO
Package dimensions and weight
Package length [cm] 80
Package width [cm] 57
Package height [cm] 61
Weight with packaging [kg] 67
Type of packaging F0901992 CASE FOR 4x WASH-BE LED 740 PRO
