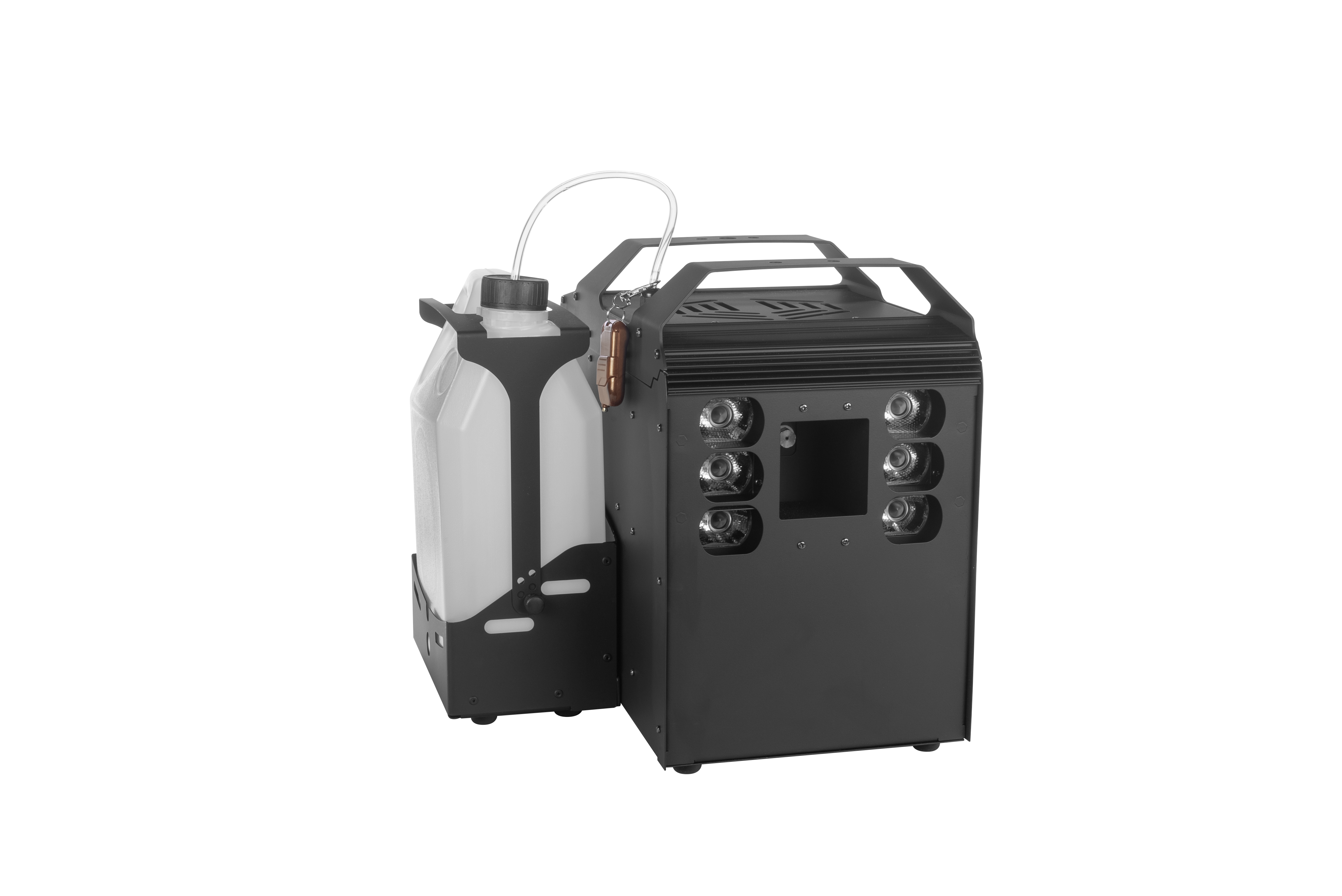

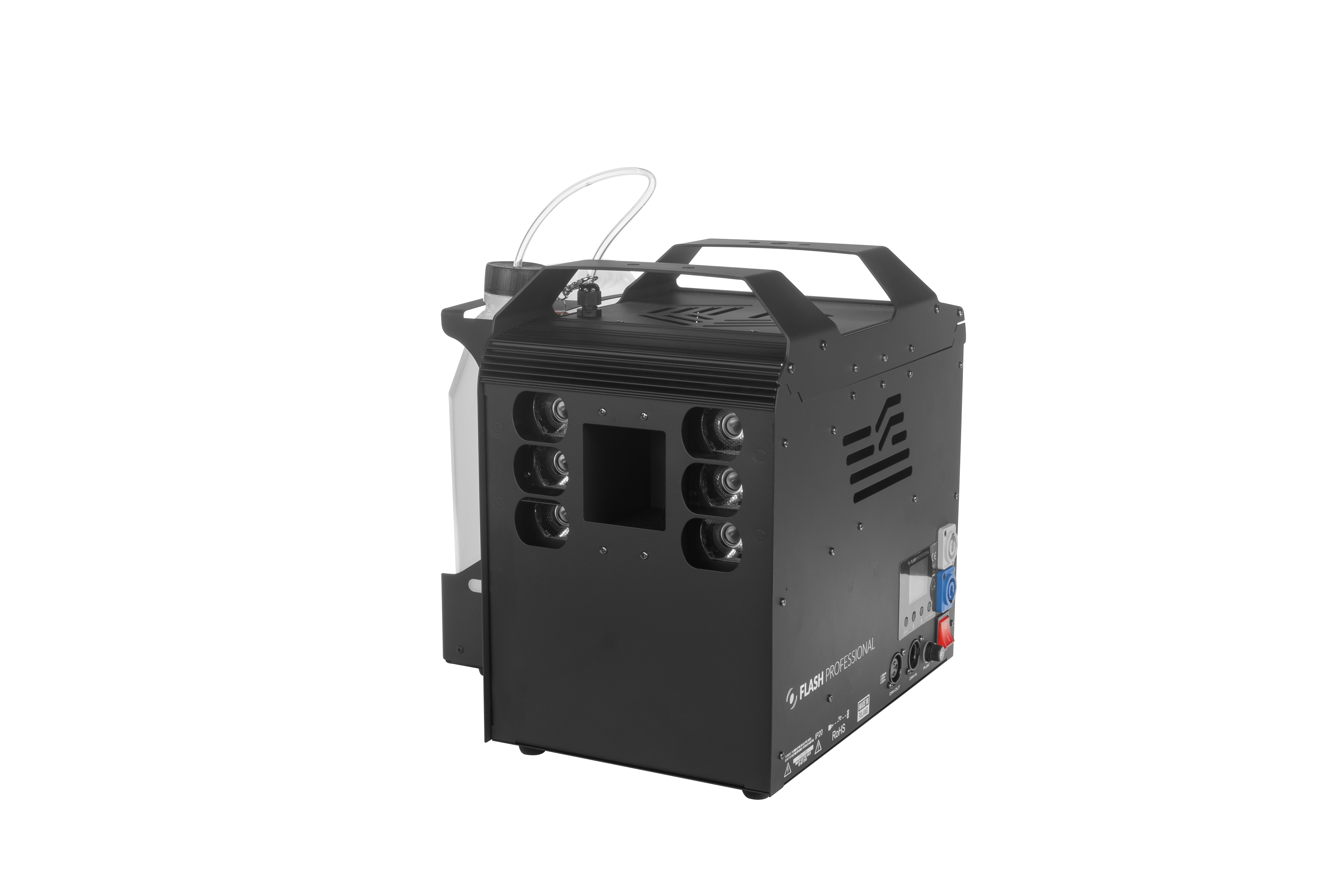

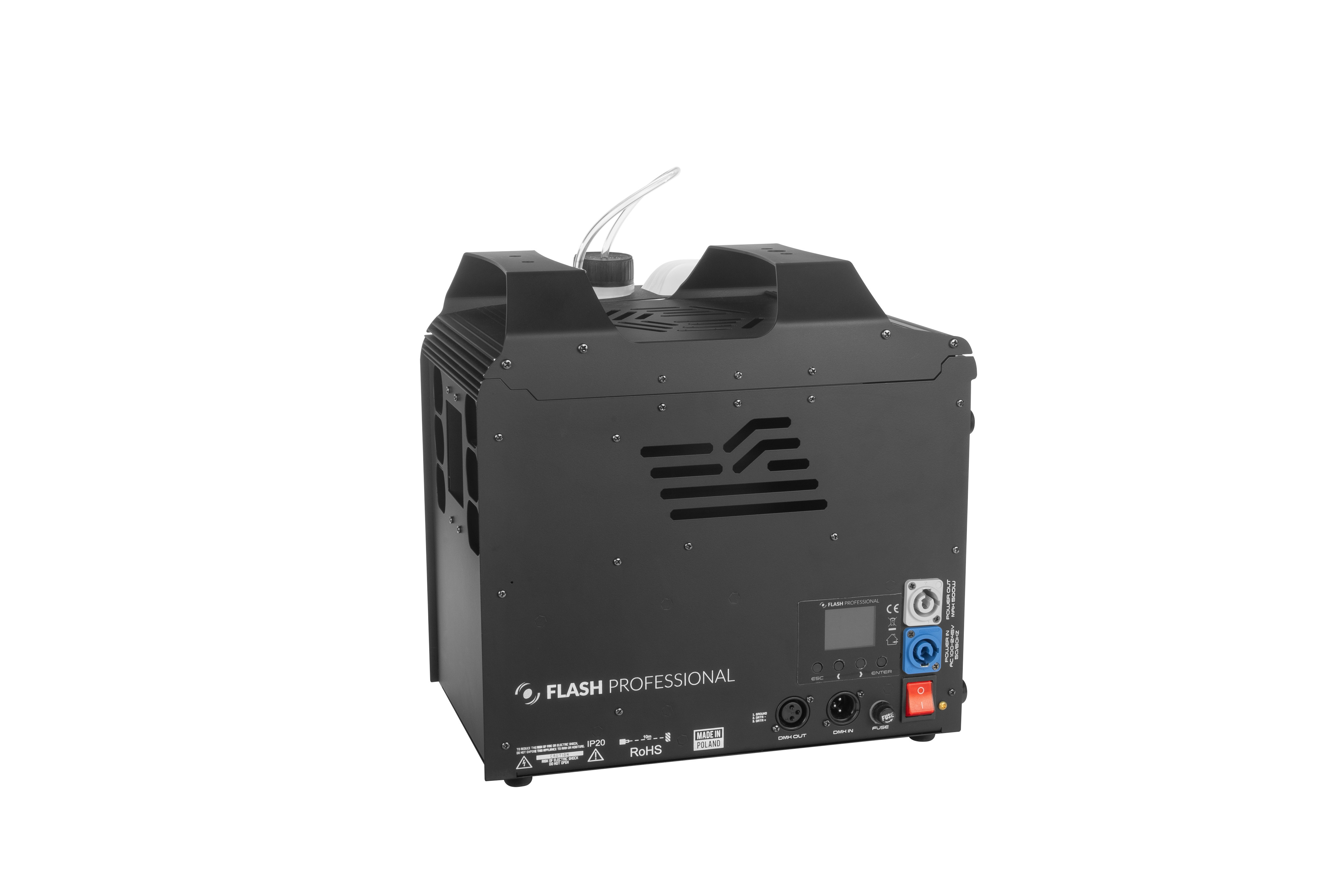

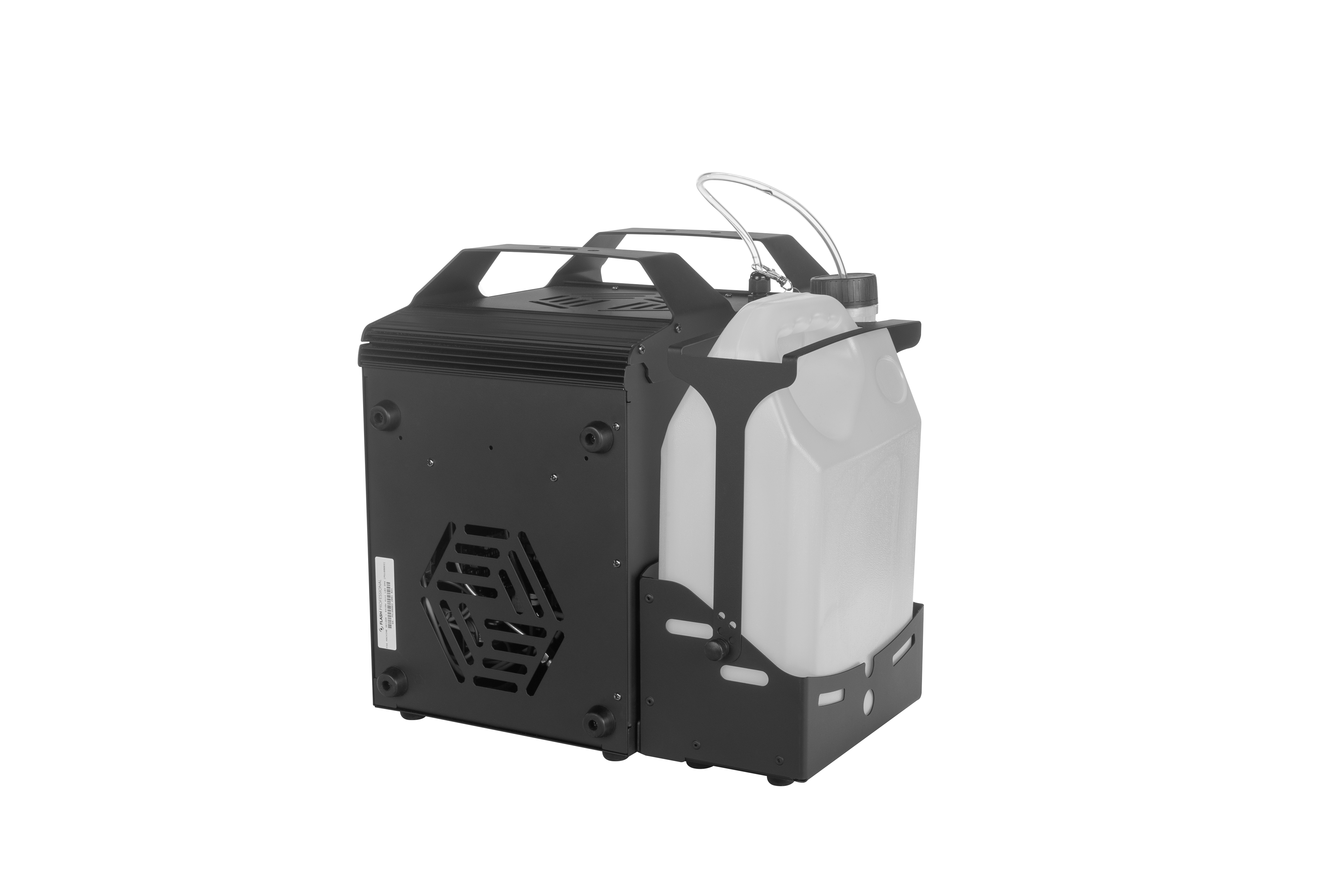

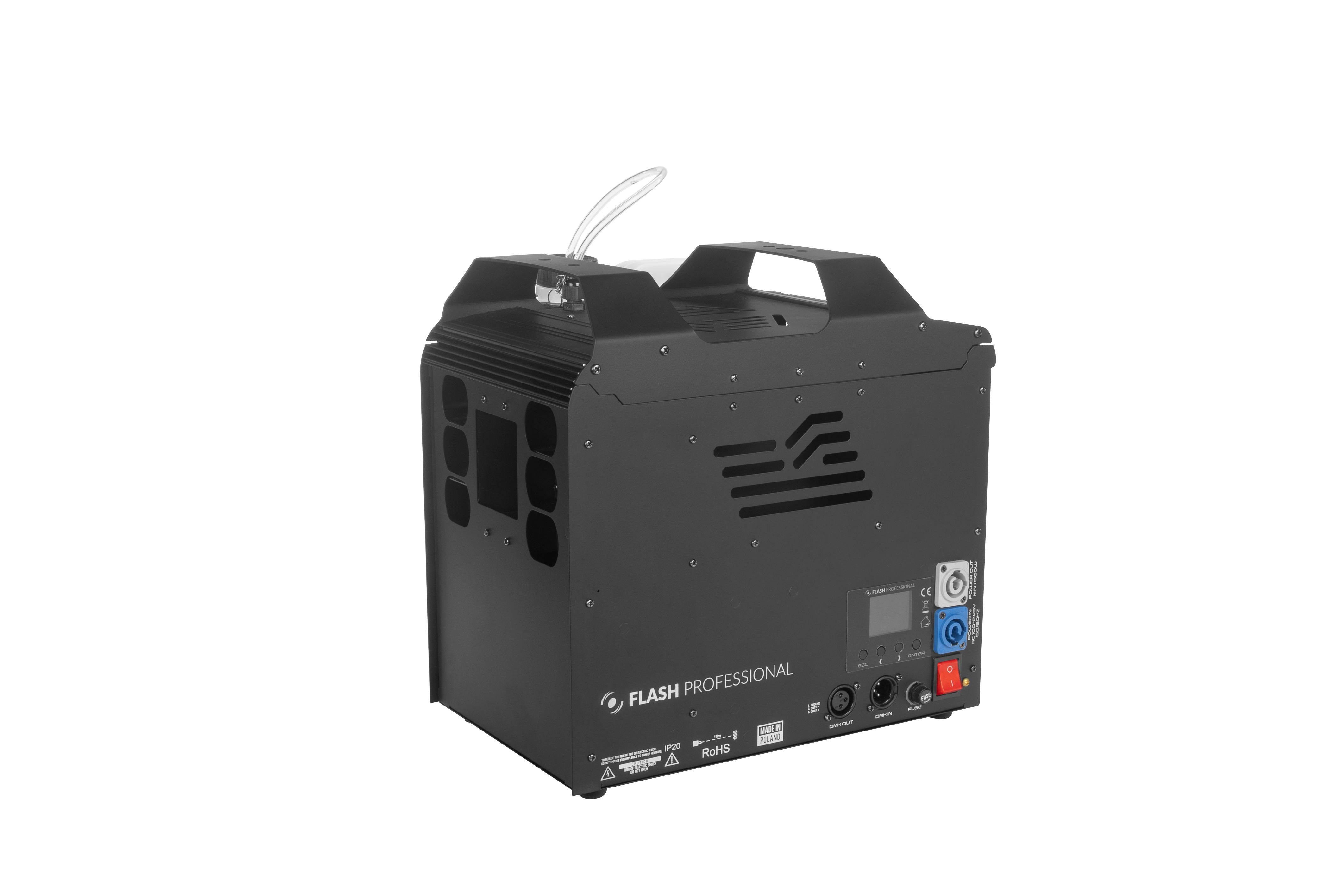

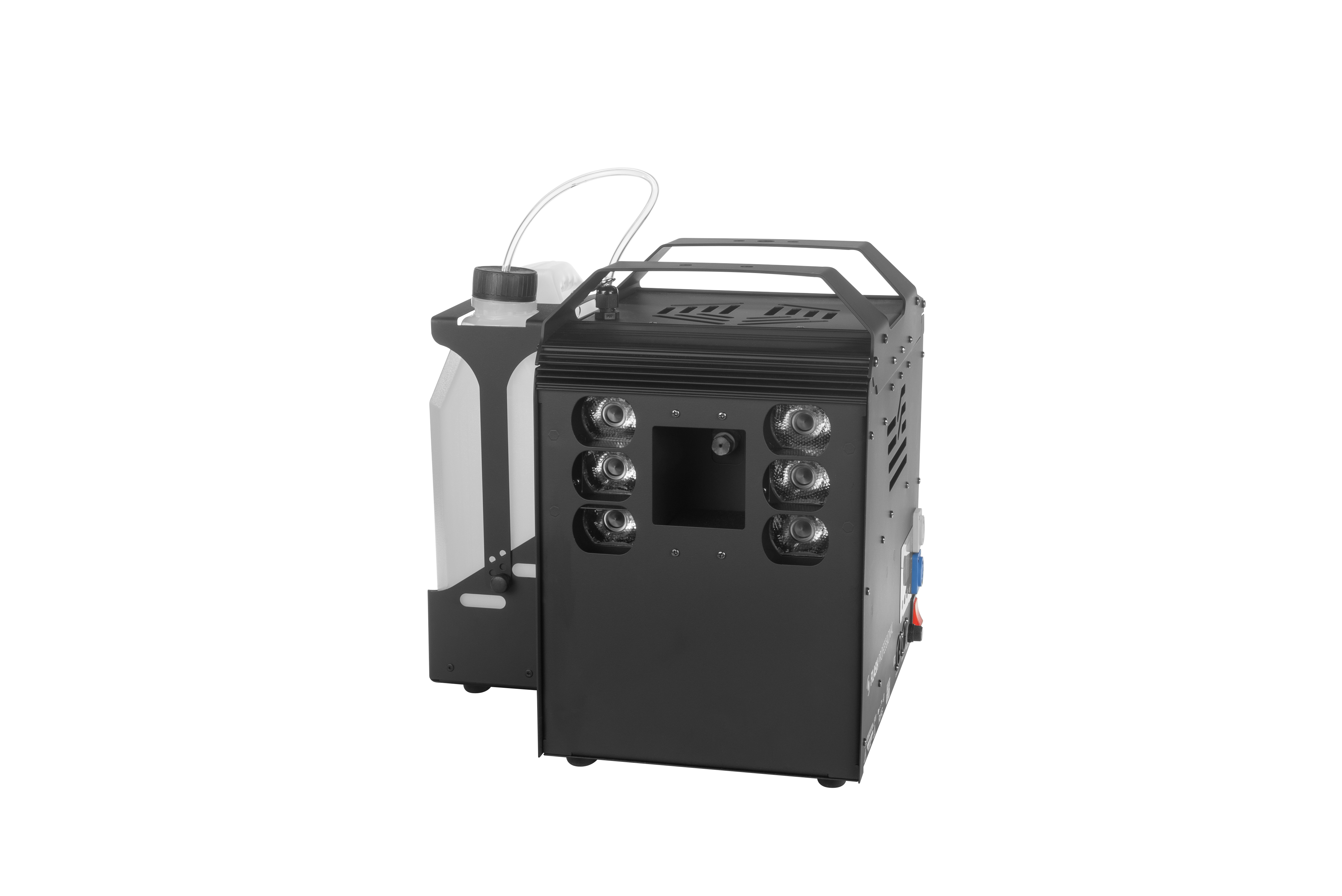

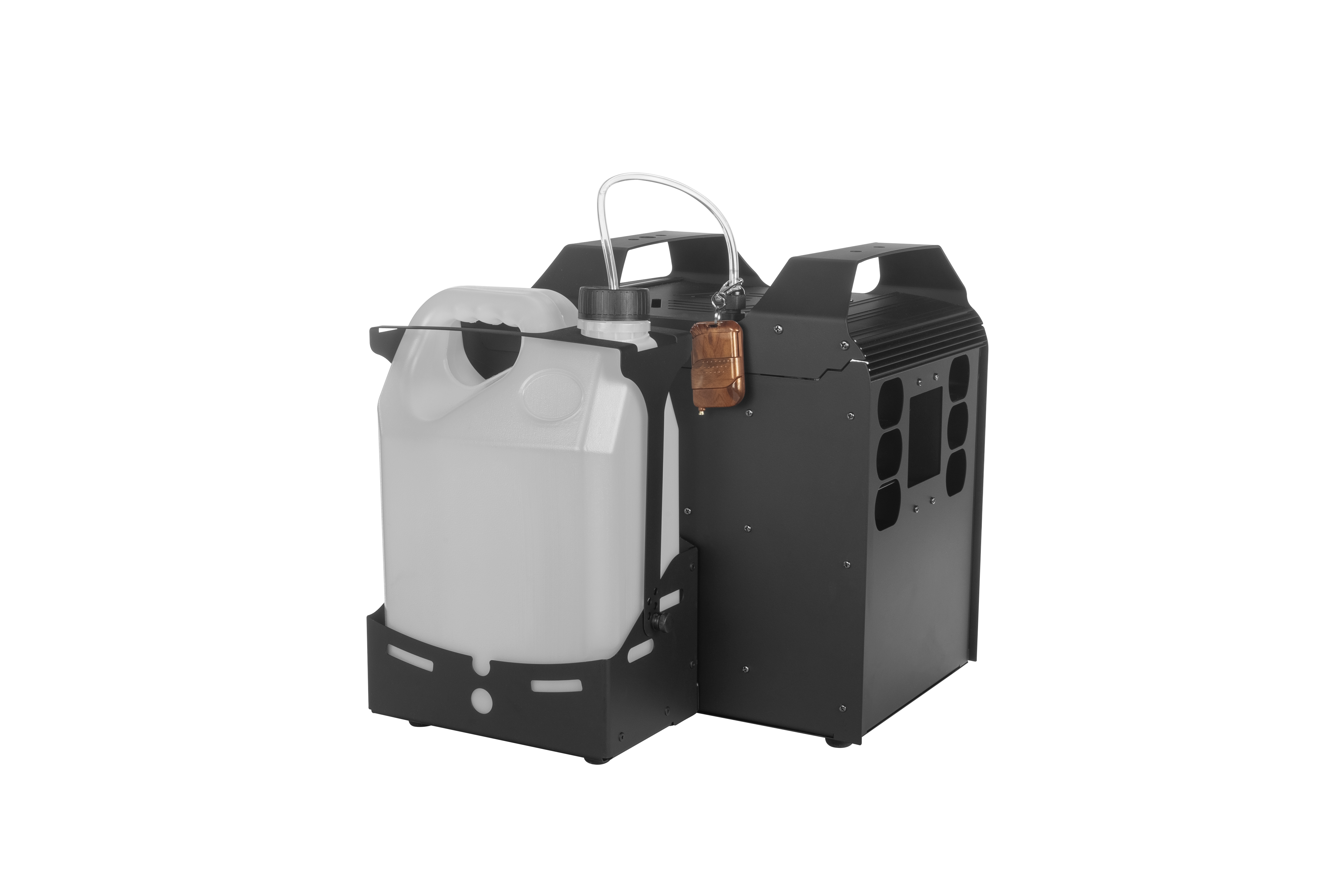

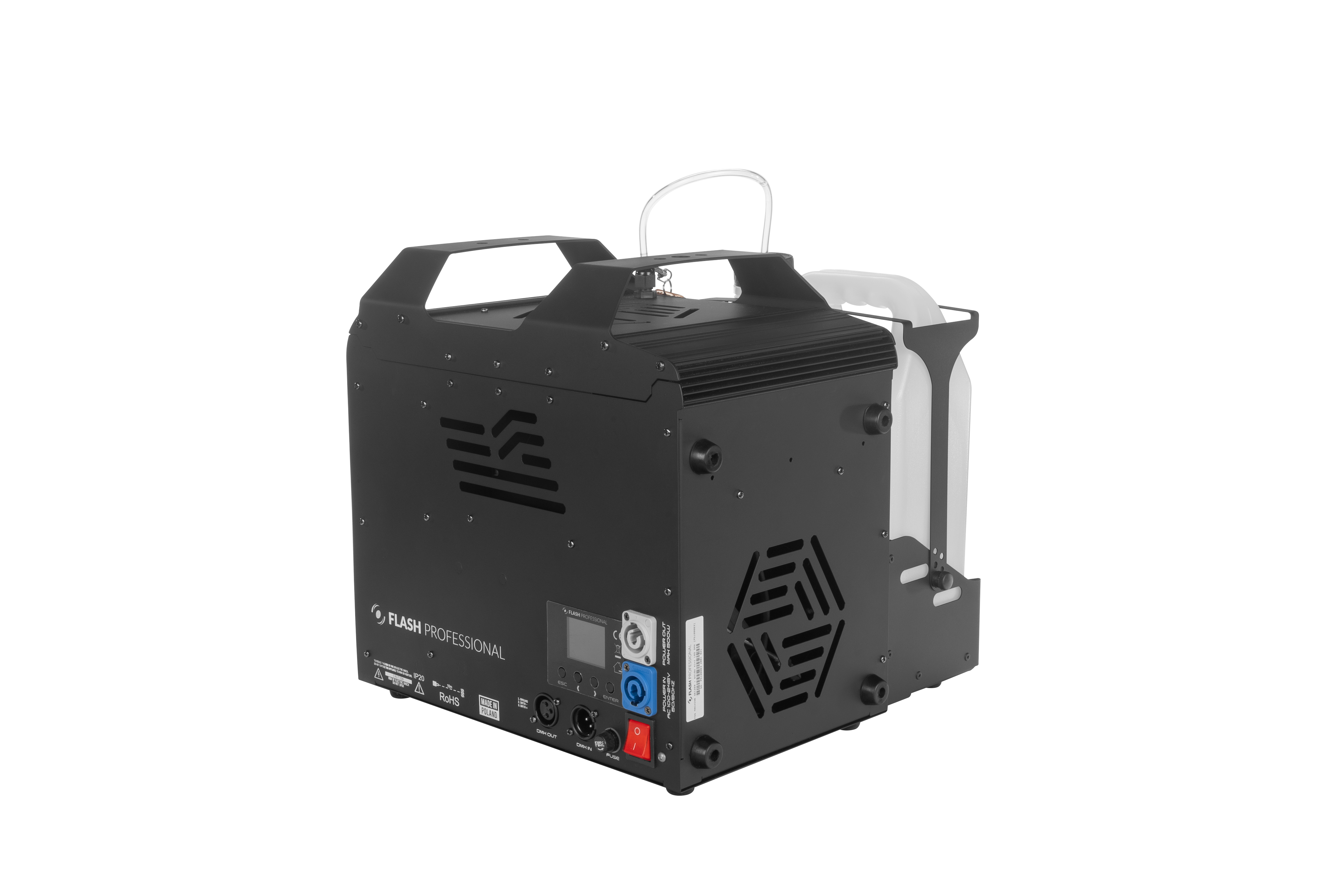

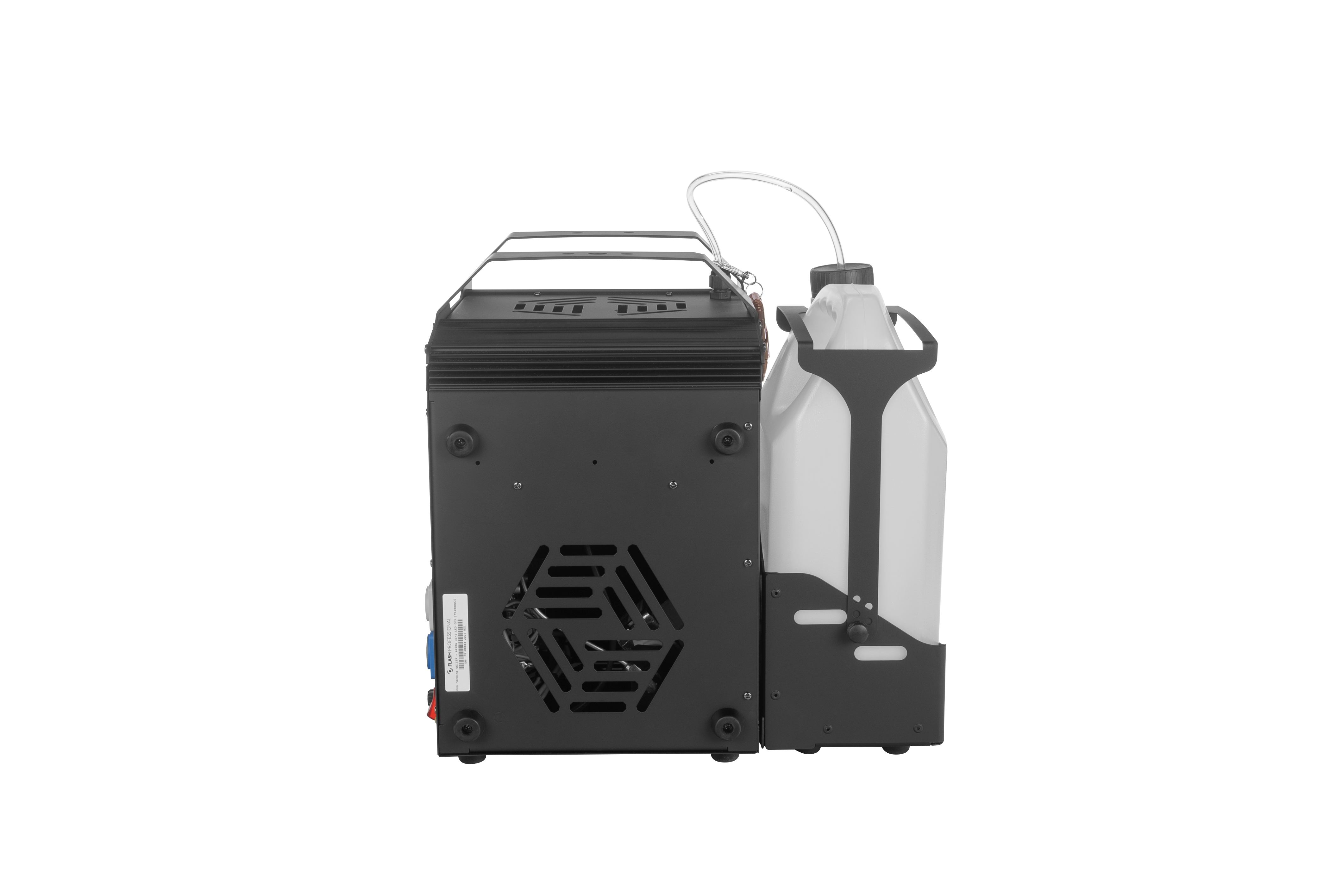

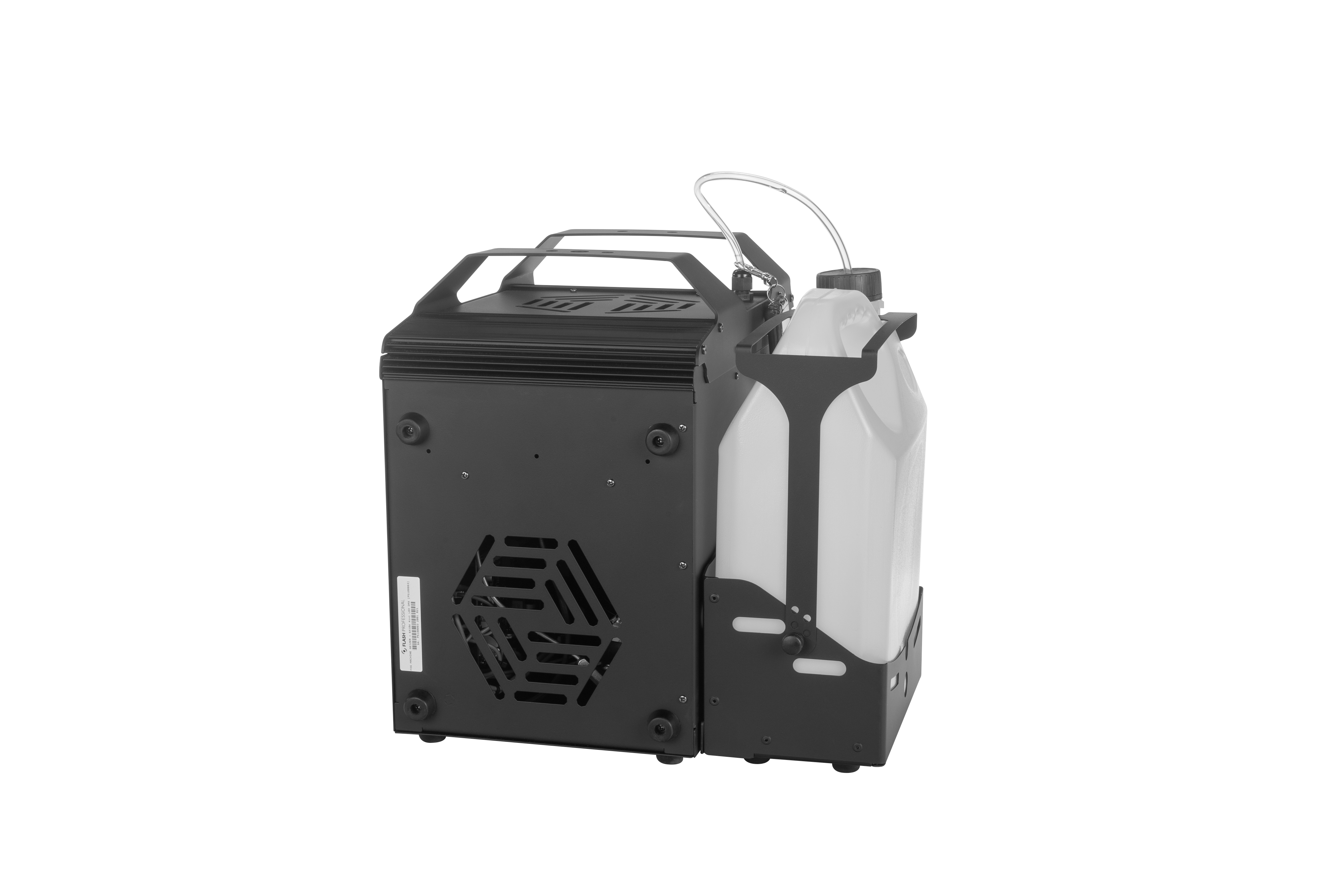

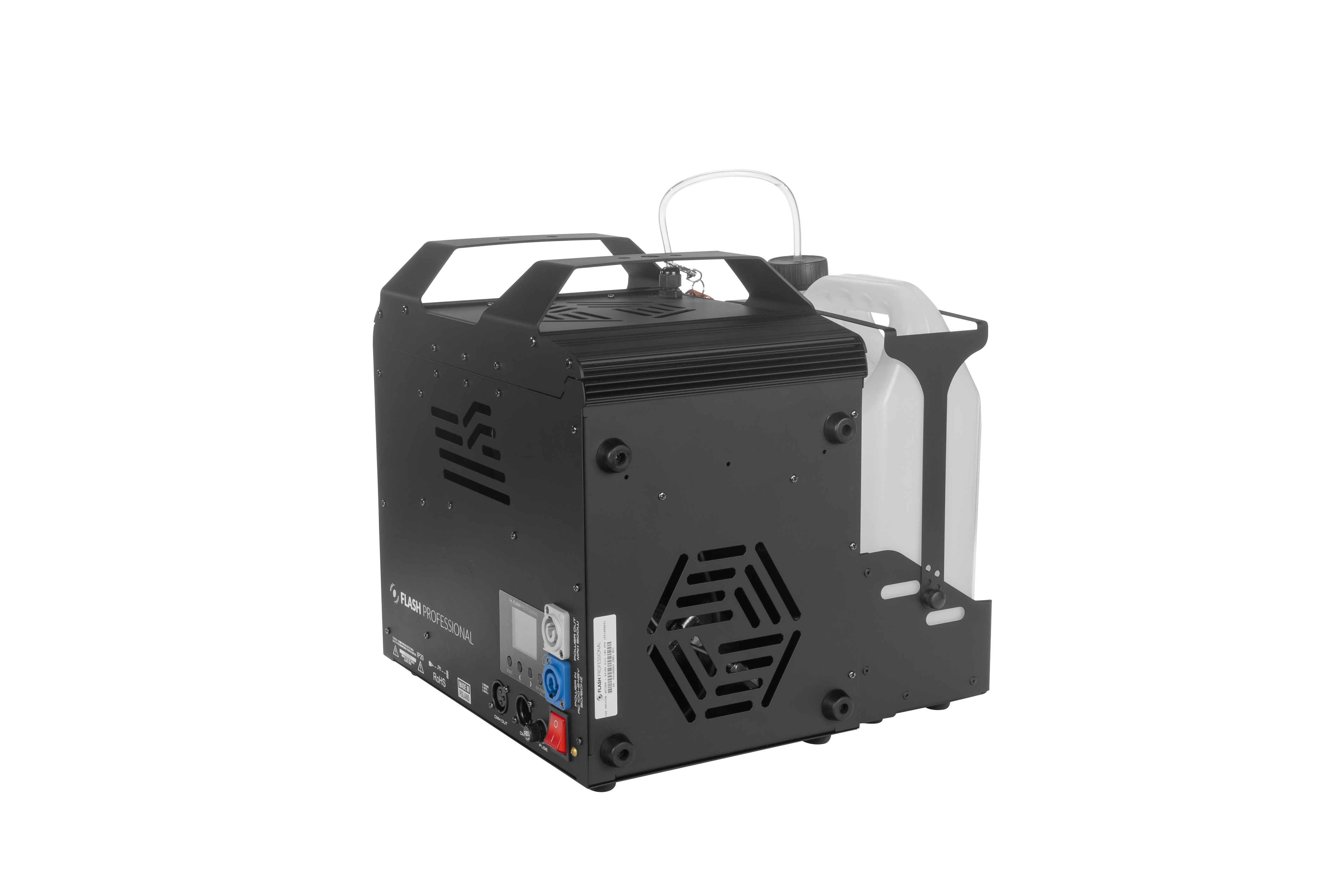

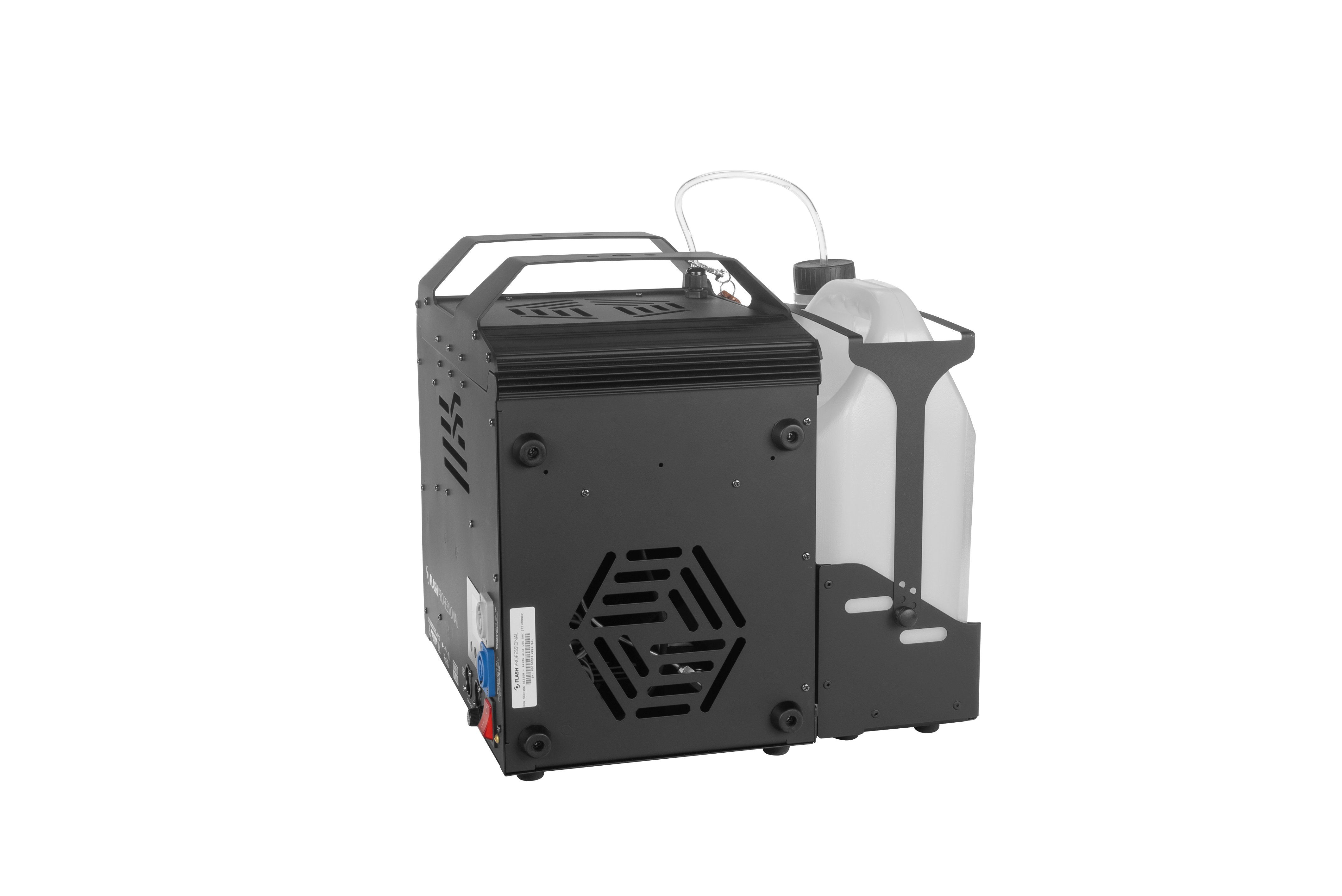

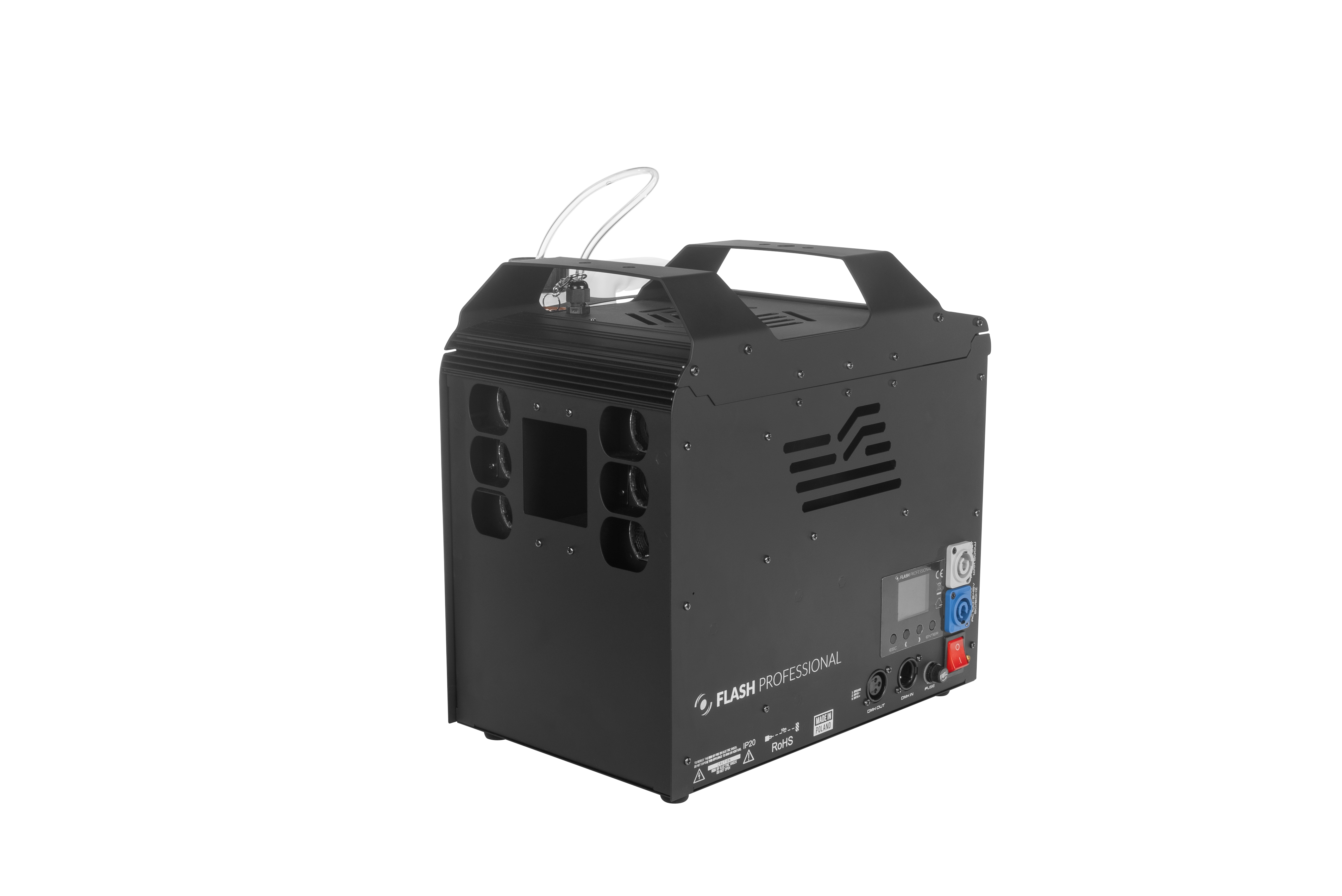

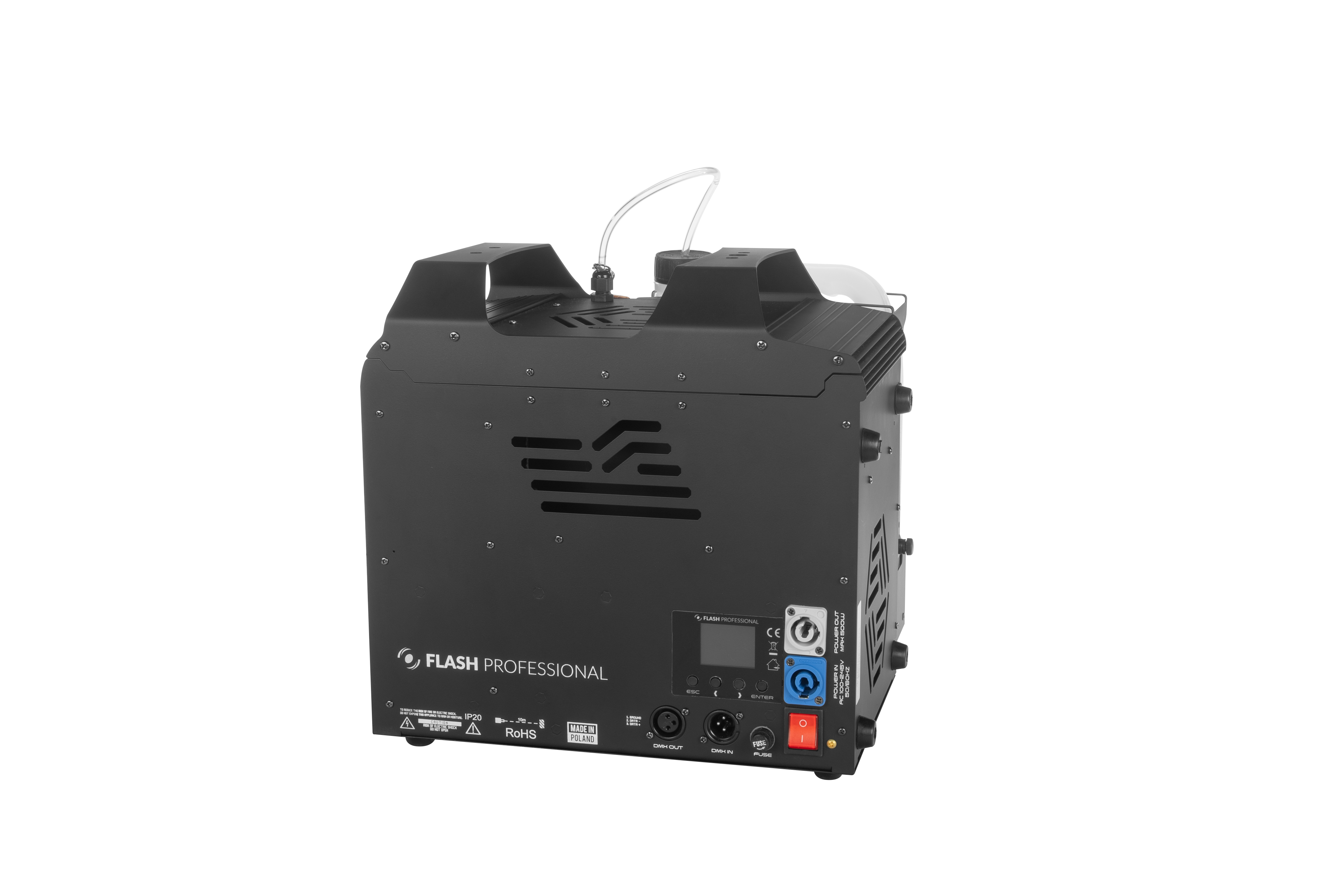

FOG MACHINE 1500 +LED610 RC
Main informations:
» Product from category: Generators / Smoke Machines
» Product series: flashPRO
Product codes:
» Product code: P5100003
flashPRO
Check series

Log in, check the price Ask for an offer
Check out rentalPoint offers Check distributors
See in gallery: flashPRO Innovative Stage Lighting Concert tours
  • XLR IP65 3-pin
    XLR IP65 3-pin
  • PowerCON
    PowerCON
  • IR CONTROL
    IR CONTROL
  • AC
    AC
  • XLR IP65 3-pin
    XLR IP65 3-pin
  • PowerCON
    PowerCON
  • IR CONTROL
    IR CONTROL
  • AC
    AC
  • XLR IP65 3-pin
    XLR IP65 3-pin
  • PowerCON
    PowerCON
  • IR CONTROL
    IR CONTROL
  • AC
    AC
  • XLR IP65 3-pin
    XLR IP65 3-pin
  • PowerCON
    PowerCON
  • IR CONTROL
    IR CONTROL
  • AC
    AC
  • XLR IP65 3-pin
    XLR IP65 3-pin
  • PowerCON
    PowerCON
  • IR CONTROL
    IR CONTROL
  • AC
    AC
  • XLR IP65 3-pin
    XLR IP65 3-pin
  • PowerCON
    PowerCON
  • IR CONTROL
    IR CONTROL
  • AC
    AC
  • XLR IP65 3-pin
    XLR IP65 3-pin
  • PowerCON
    PowerCON
  • IR CONTROL
    IR CONTROL
  • AC
    AC
  • XLR IP65 3-pin
    XLR IP65 3-pin
  • PowerCON
    PowerCON
  • IR CONTROL
    IR CONTROL
  • AC
    AC
  • XLR IP65 3-pin
    XLR IP65 3-pin
  • PowerCON
    PowerCON
  • IR CONTROL
    IR CONTROL
  • AC
    AC
  • XLR IP65 3-pin
    XLR IP65 3-pin
  • PowerCON
    PowerCON
  • IR CONTROL
    IR CONTROL
  • AC
    AC
  • XLR IP65 3-pin
    XLR IP65 3-pin
  • PowerCON
    PowerCON
  • IR CONTROL
    IR CONTROL
  • AC
    AC
flash
fixtures:
  • Chamsys
  • Vista
  • Avolites Titan
  • grandMA2
  • GDTF
  • dot2
  • SSL2
  • grandMA3
  • Chamsys
  • Vista
  • Avolites Titan
  • grandMA2
  • GDTF
  • dot2
  • SSL2
  • grandMA3
  • Chamsys
  • Vista
  • Avolites Titan
  • grandMA2
  • GDTF
  • dot2
  • SSL2
  • grandMA3
  • Chamsys
  • Vista
  • Avolites Titan
  • grandMA2
  • GDTF
  • dot2
  • SSL2
  • grandMA3

To download fixtures from our database, enter your e-mail address. We will send the files to the e-mail address you provided. By entering the address, you accept statute.

Download now

Product description

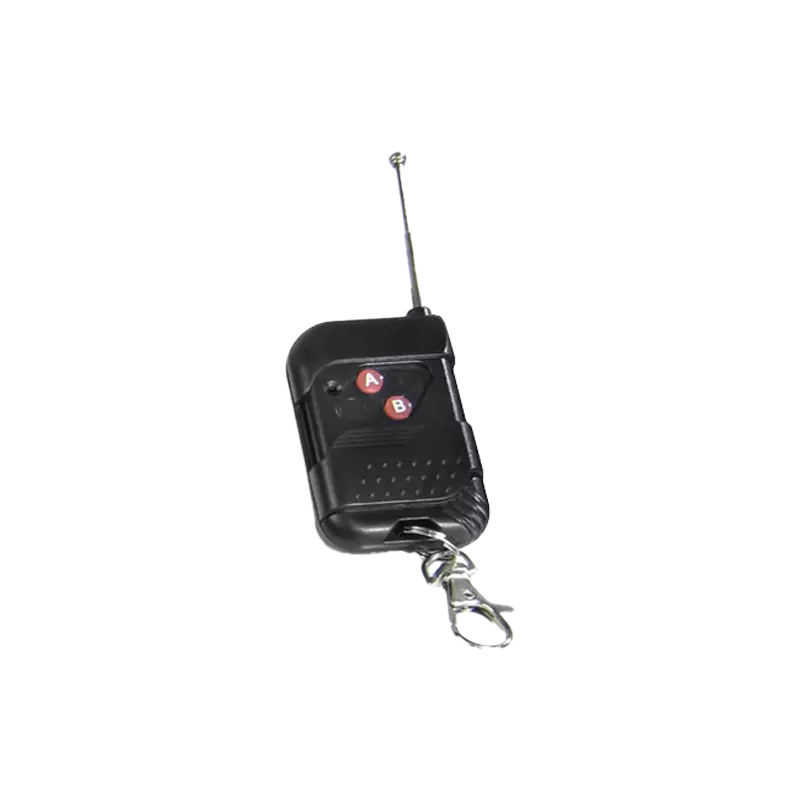

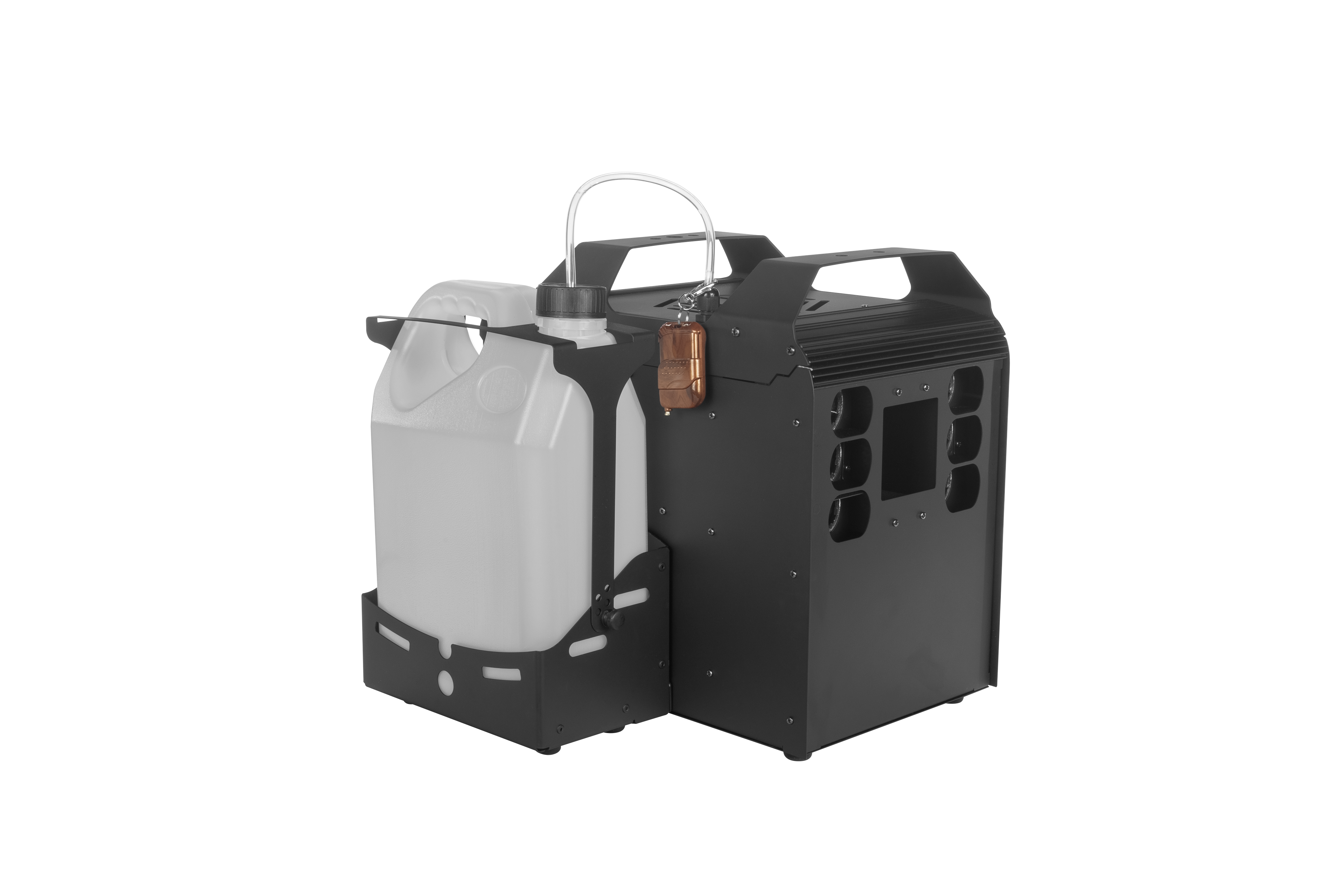

Professional smoke generator with wireless control and 6x10W RGBW LED backlight.

The powerful RGBW backlight installed in the device multiplies the effect of the smoke produced both vertically and horizontally.
Full readiness for work will be achieved after about 8 minutes.
Maximum volume of smoke produced under DMX control: 200 ml/min with maximum uniform operation up to 3 minutes.
Minimum amount of smoke under DMX control: 20 ml/min with continuous operation.
The device works great in closed rooms and during shows, concerts and events where high efficiency is expected.
The well-thought-out casing allows you to work in two positions, achieving the functionality of a standard smoke machine and a vertical geyser.
In addition, the machine has a mechanism that allows you to change the position of the liquid tank depending on the machine setting

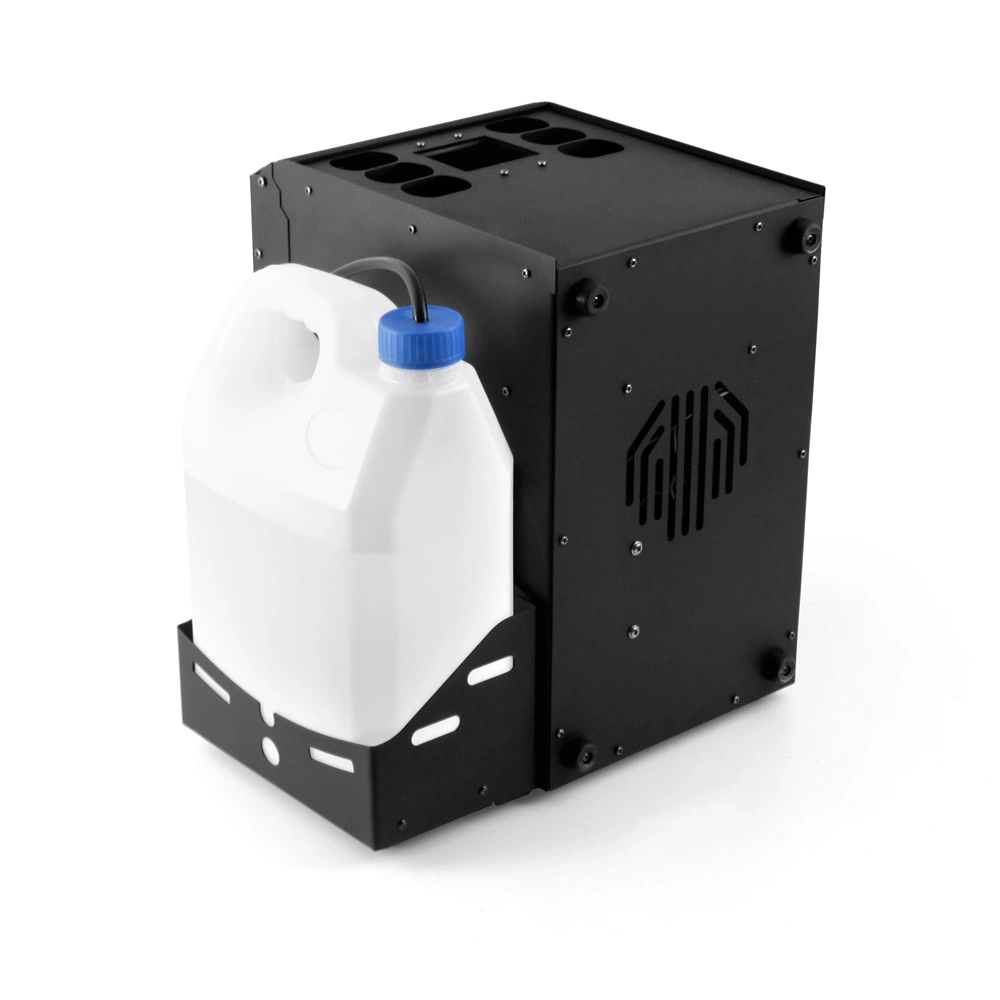

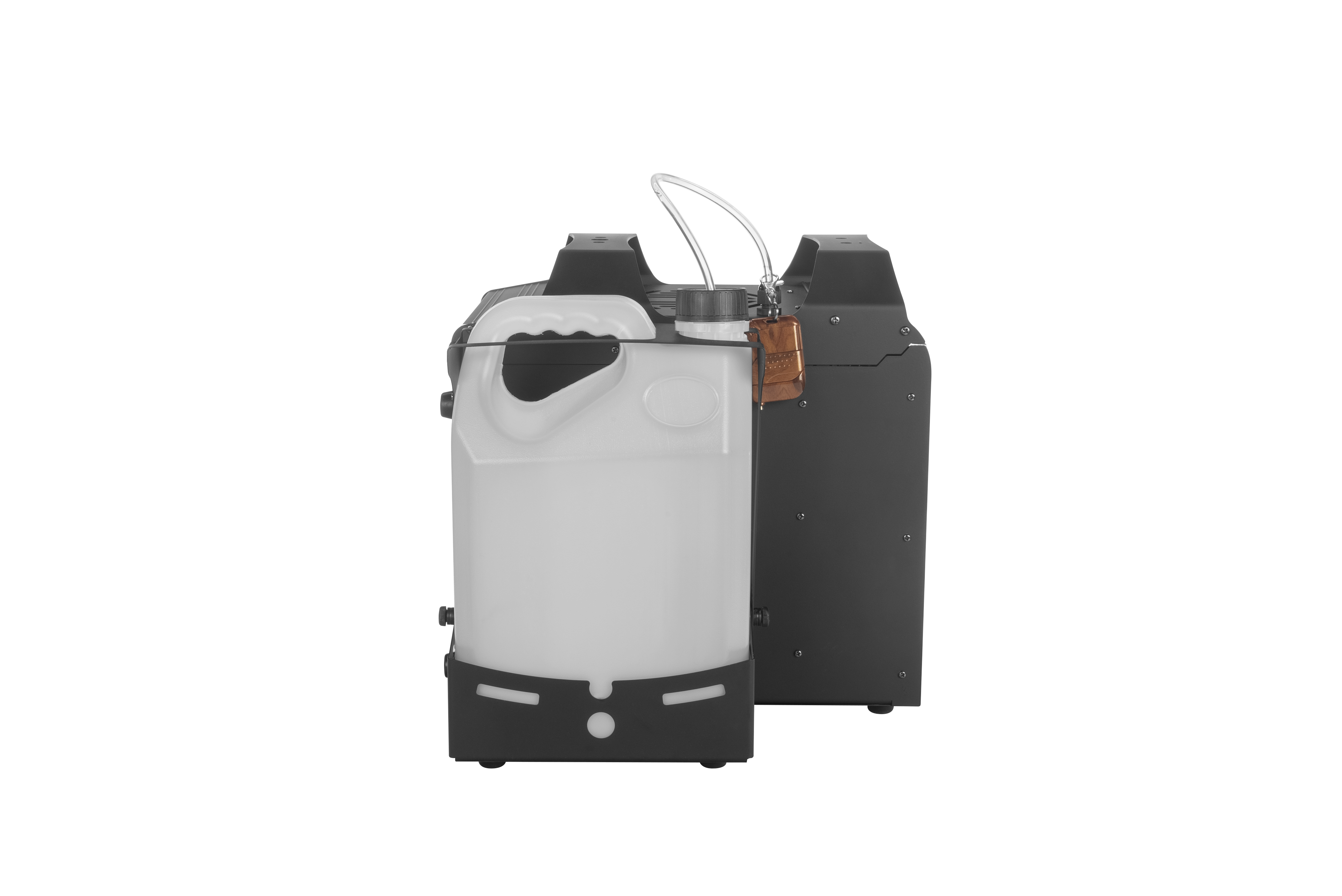

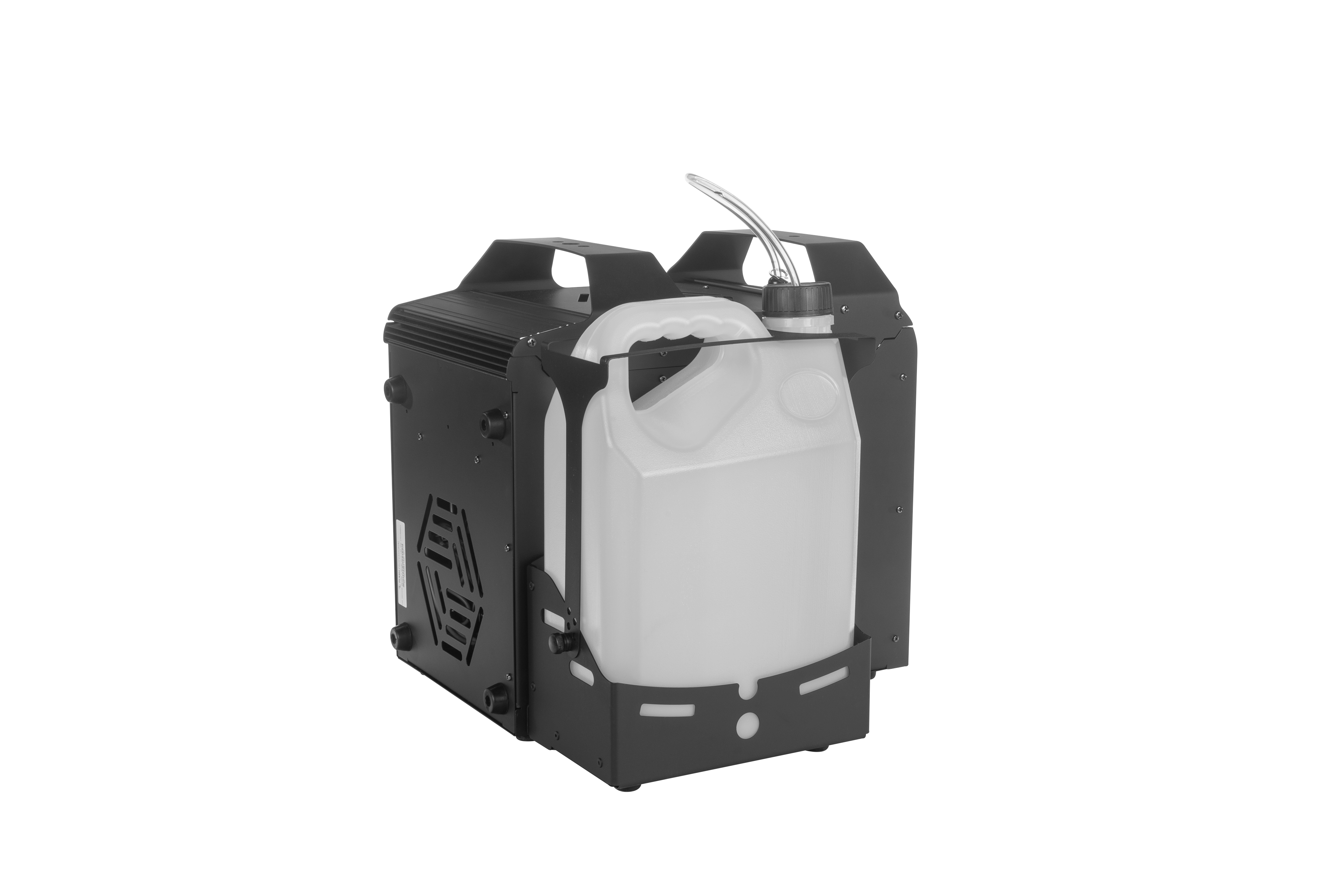

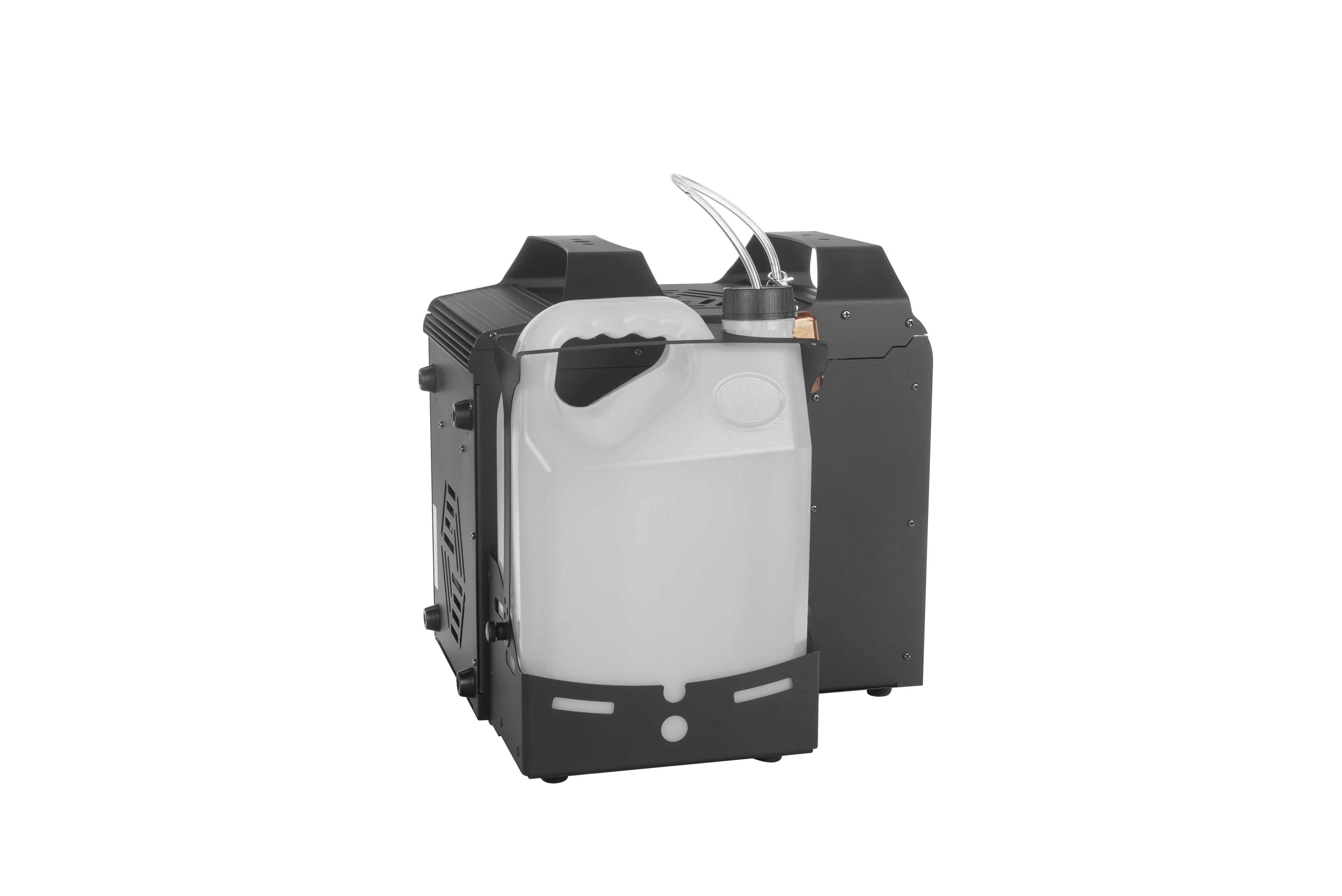

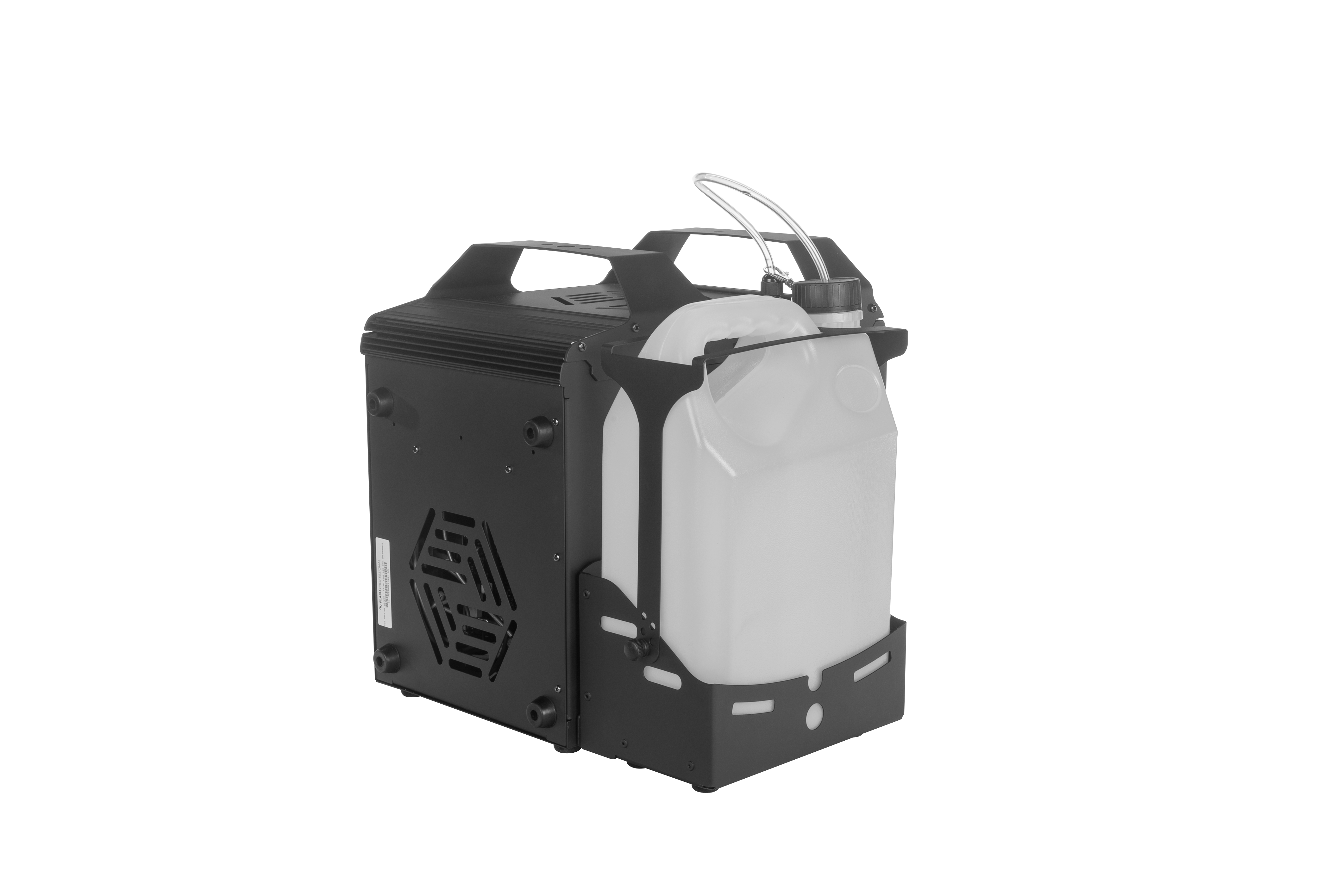

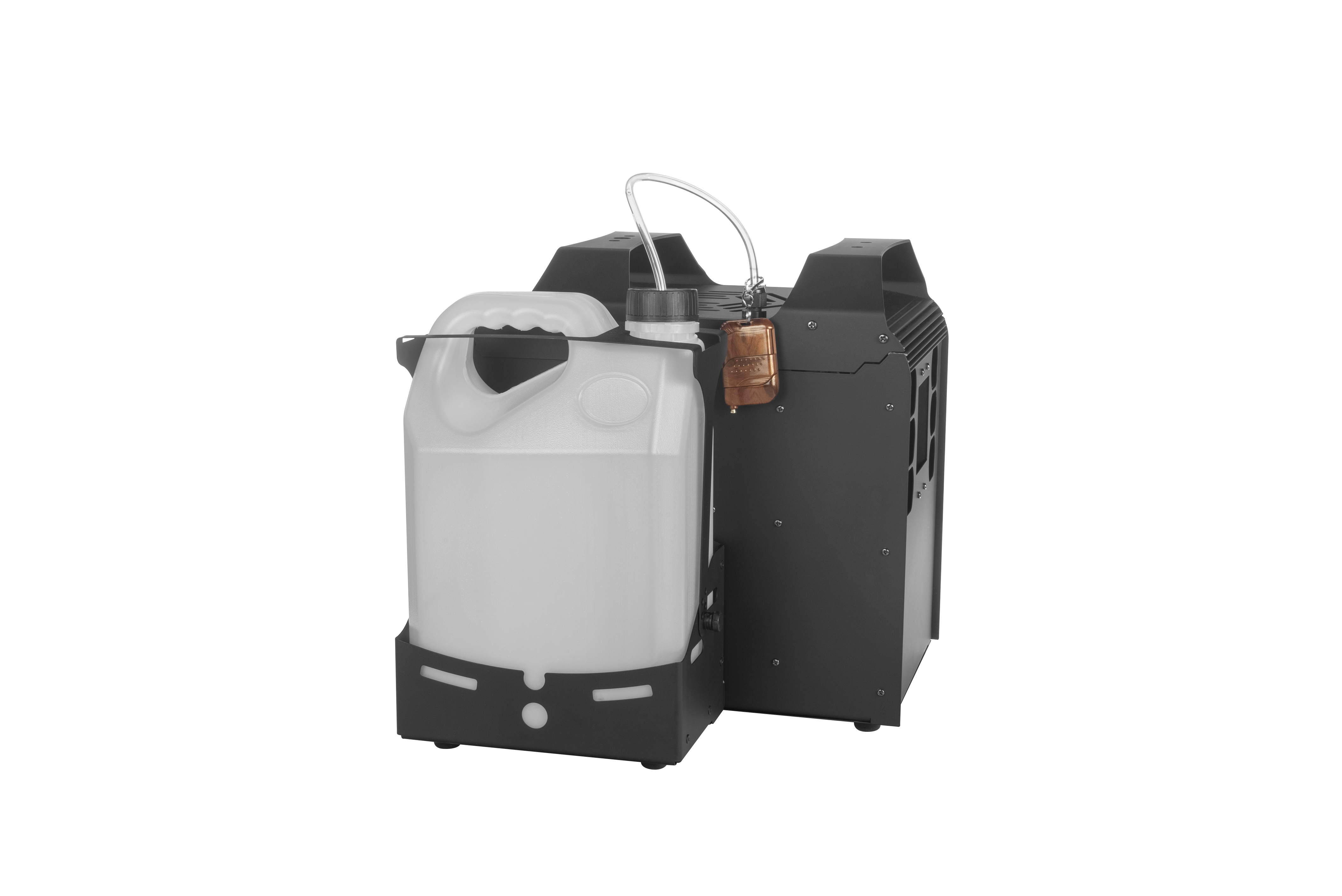

The liquid container holds 5 liters and can be separated, thus preventing the liquid from spilling out and damaging the machine's electronics during transport.

By using a dedicated, efficient and professional FLUID FOG GOLD 5L FlashPRO fluid, we will achieve a thick, odorless smoke effect.

The device in Auto mode, mode 21, Speed 99 ensures continuous operation for 30 minutes. To turn off the blowing, turn on the DMX mode on the Display. The DMX controller provides more possibilities and settings.

Specification FOG MACHINE 1500 +LED610 RC

Power Source (AC)
Supply voltage 230V
Power consumption 1500W
Power frequency 50-60Hz
Light source
Type LED (RGBW)
Quantity 6
Power (W) 10W
Color Mixing System
RGBW 8 bit - 16 bit
Dimming
Dimming 8 bit - 16 bit
Strobe - frequency
Frequency 1Hz-20Hz
DMX control
Number of modes 11
Number of channels 1-9
Modes of operation
DMX512 Yes
Auto control Yes
Master-slave Yes
Remote control Yes
User Interface
Physical buttons Yes
LCD display Yes

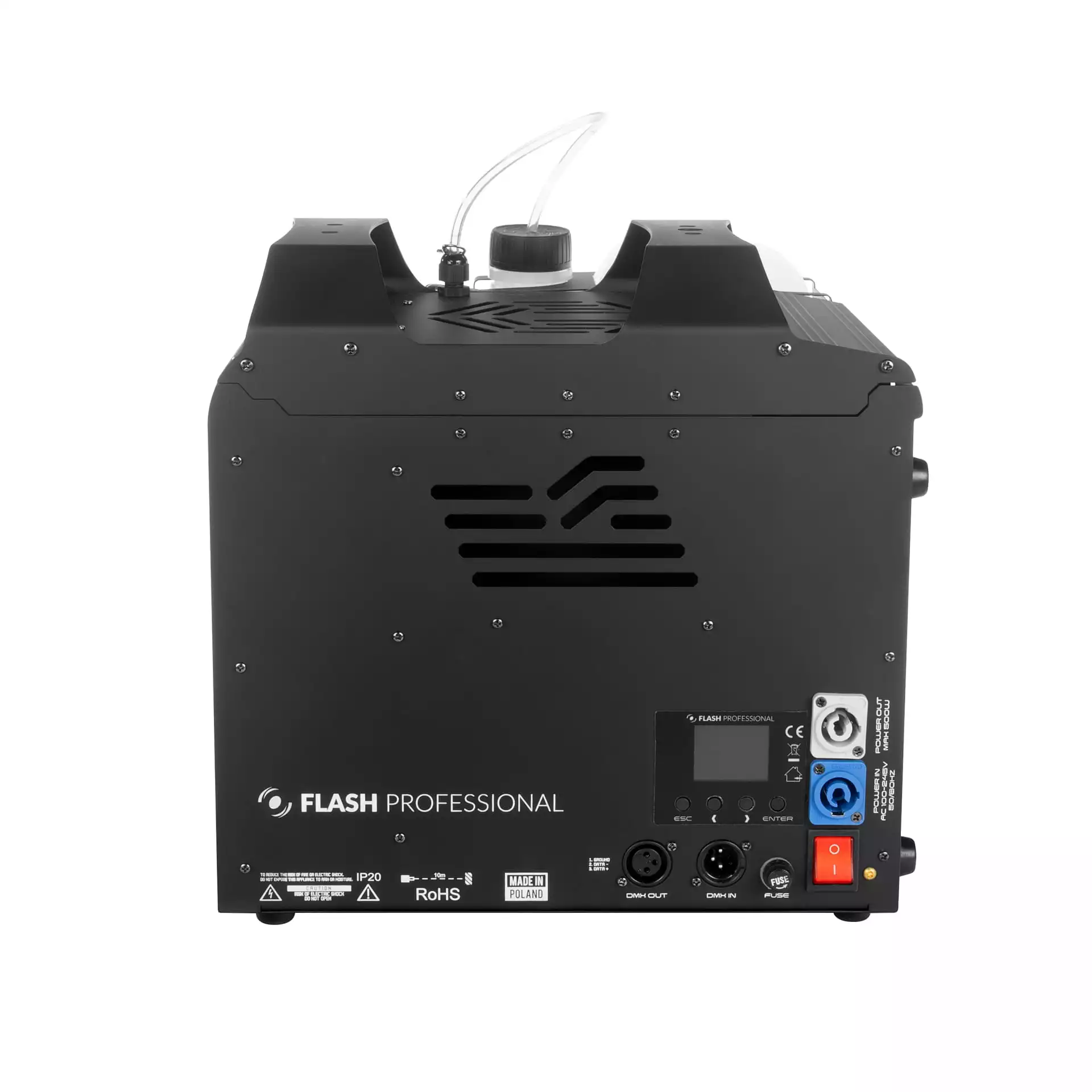

Connectors
AC IN PowerCON
AC OUT PowerCON
DMX IN 3-pin DMX
DMX OUT 3-pin DMX
Physical parameters
Warm-up Time +/- 8 (min)
Temperatura Otoczenia 0°C- 40°C
Tank Capacity 5 l
IP protection level IP20
Housing type Aluminium
Housing type ABS
Fixing Integrated
Fixing Mounting hole
Housing color Black
Housing color Any from the RAL palette
Cooling Active
Length [cm] 33,5
Width [cm] 34
Height [cm] 34
Weight [kg] 9,8
Contents of the package
A kind of package Cardboard
Manual Yes

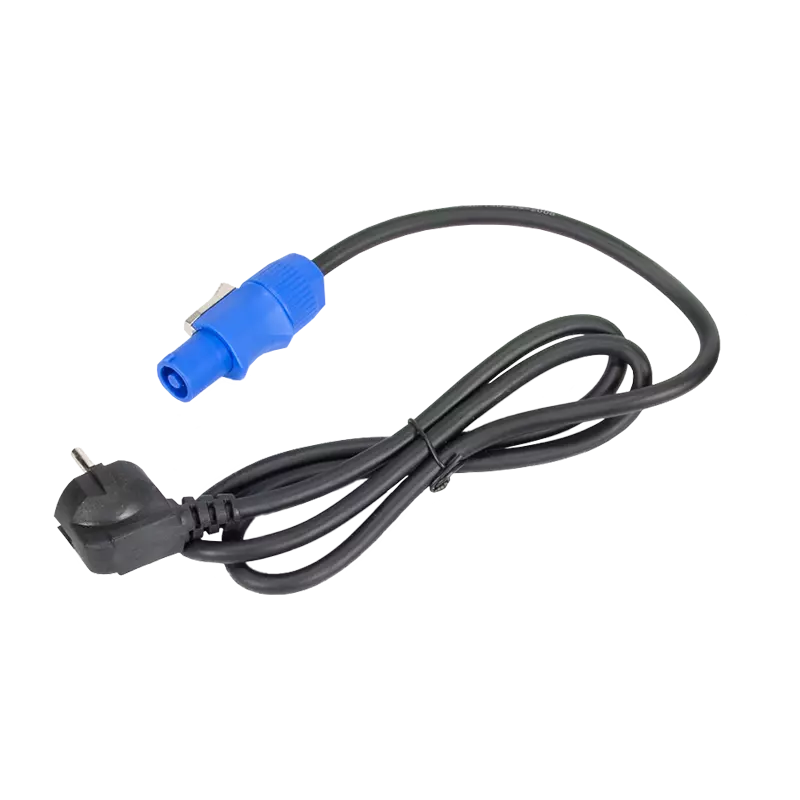

Wiring PowerCON
Device FOG MACHINE 1500 +LED610 RC
