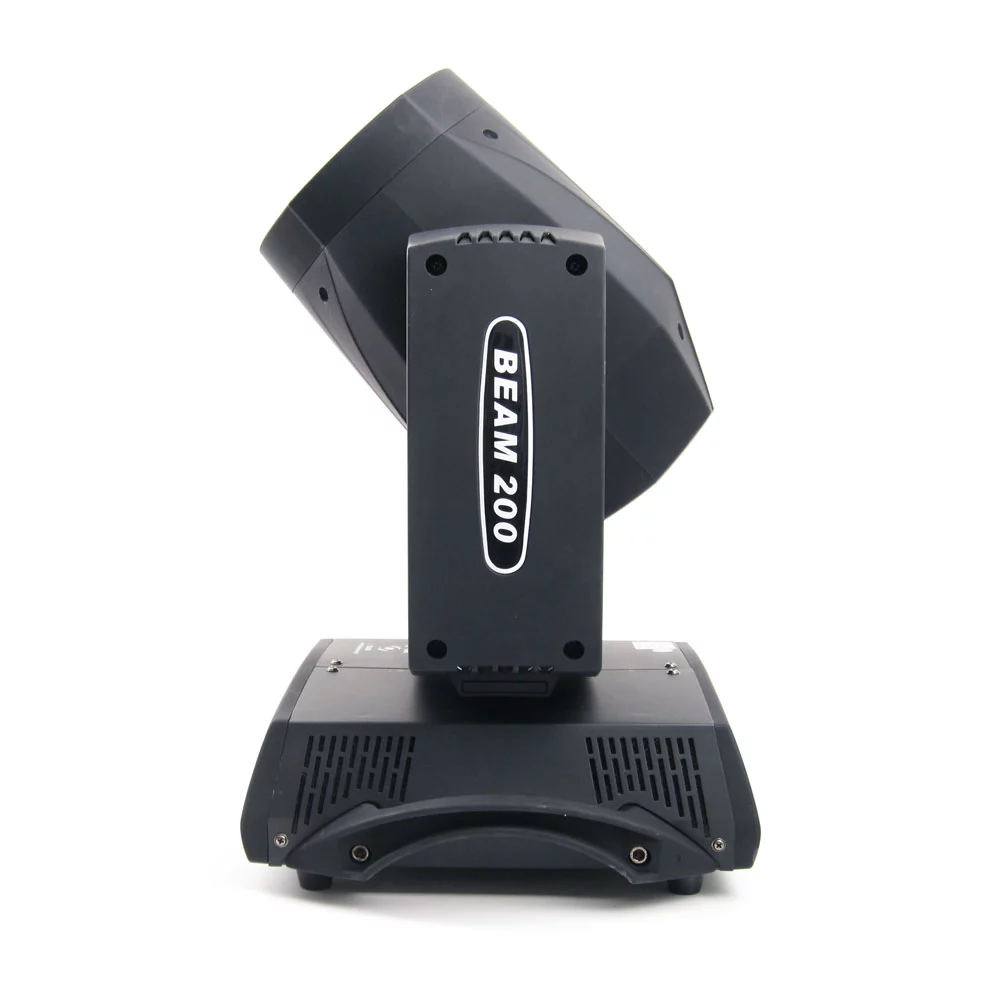

BEAM 5R FL-200 T-BOLT v2
Main informations:
» Product from category: Moving Devices / Moving Heads BEAM
» Product series: DJ
Product codes:
» Product code: F1000074
DJ
Check series

Log in, check the price Ask for an offer
Check out rentalPoint offers Check distributors
  • Color Shield
    Color Shield
  • DISCHARGE LIGHT
    DISCHARGE LIGHT
  • SOUND CONTROL
    SOUND CONTROL
  • 8 BIT DIMMING
    8 BIT DIMMING
  • Color Mixing System
    Color Mixing System
  • PRISM
    PRISM
  • PowerCON
    PowerCON
  • PAN
    PAN
  • MASTER-SLAVE
    MASTER-SLAVE
  • VARIABLE BEAM ANGLE
    VARIABLE BEAM ANGLE
  • IP20
    IP20
  • GOBO
    GOBO
  • FOCUS MOTORIZED
    FOCUS MOTORIZED
  • DMX512
    DMX512
  • BLACK
    BLACK
  • CTO SMOOTH
    CTO SMOOTH
  • ACTIVE COOLING
    ACTIVE COOLING
  • AUTO CONTROL
    AUTO CONTROL
  • AC
    AC
  • ABS
    ABS
  • MOTORIZED ZOOM
    MOTORIZED ZOOM
  • XLR 5-pin
    XLR 5-pin
  • XLR 3-pin
    XLR 3-pin
  • TILT
    TILT
  • Color Shield
    Color Shield
  • DISCHARGE LIGHT
    DISCHARGE LIGHT
  • SOUND CONTROL
    SOUND CONTROL
  • 8 BIT DIMMING
    8 BIT DIMMING
  • Color Mixing System
    Color Mixing System
  • PRISM
    PRISM
  • PowerCON
    PowerCON
  • PAN
    PAN
  • MASTER-SLAVE
    MASTER-SLAVE
  • VARIABLE BEAM ANGLE
    VARIABLE BEAM ANGLE
  • IP20
    IP20
  • GOBO
    GOBO
  • FOCUS MOTORIZED
    FOCUS MOTORIZED
  • DMX512
    DMX512
  • BLACK
    BLACK
  • CTO SMOOTH
    CTO SMOOTH
  • ACTIVE COOLING
    ACTIVE COOLING
  • AUTO CONTROL
    AUTO CONTROL
  • AC
    AC
  • ABS
    ABS
  • MOTORIZED ZOOM
    MOTORIZED ZOOM
  • XLR 5-pin
    XLR 5-pin
  • XLR 3-pin
    XLR 3-pin
  • TILT
    TILT
  • Color Shield
    Color Shield
  • DISCHARGE LIGHT
    DISCHARGE LIGHT
  • SOUND CONTROL
    SOUND CONTROL
  • 8 BIT DIMMING
    8 BIT DIMMING
  • Color Mixing System
    Color Mixing System
  • PRISM
    PRISM
  • PowerCON
    PowerCON
  • PAN
    PAN
  • MASTER-SLAVE
    MASTER-SLAVE
  • VARIABLE BEAM ANGLE
    VARIABLE BEAM ANGLE
  • IP20
    IP20
  • GOBO
    GOBO
  • FOCUS MOTORIZED
    FOCUS MOTORIZED
  • DMX512
    DMX512
  • BLACK
    BLACK
  • CTO SMOOTH
    CTO SMOOTH

Product description

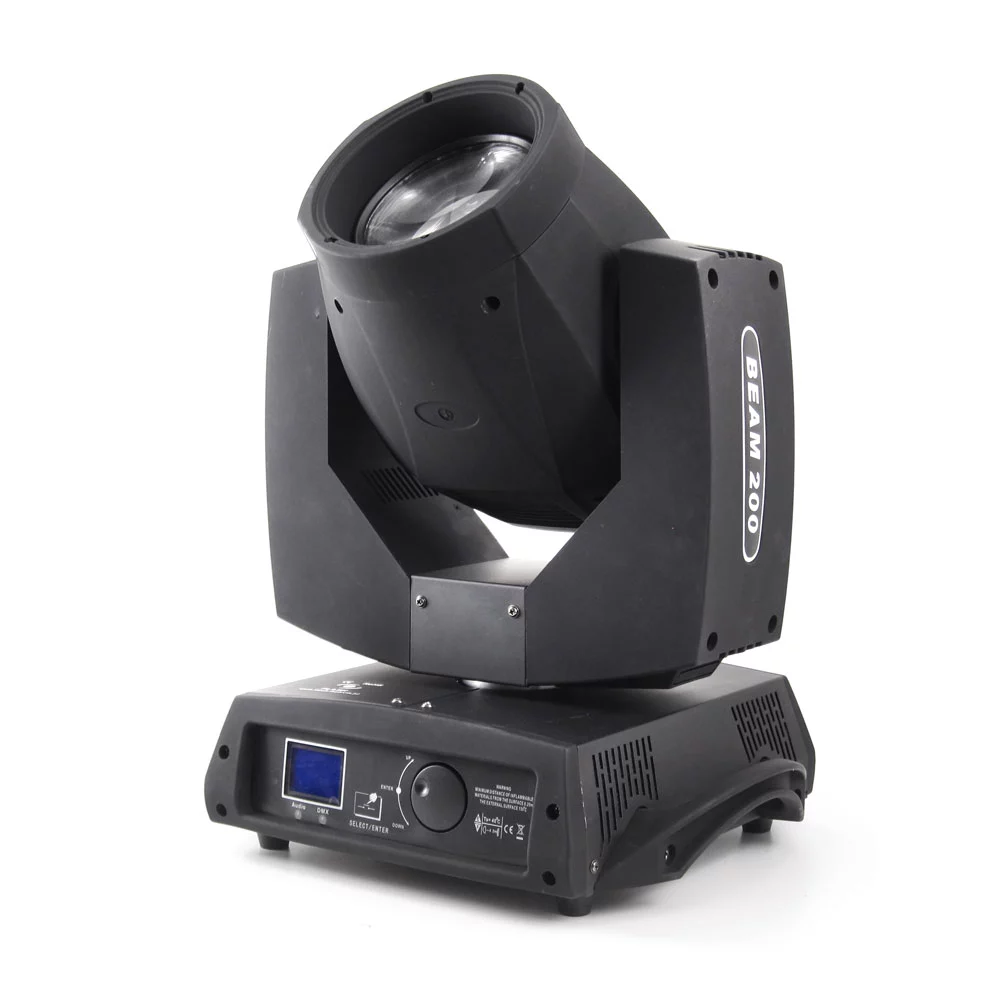

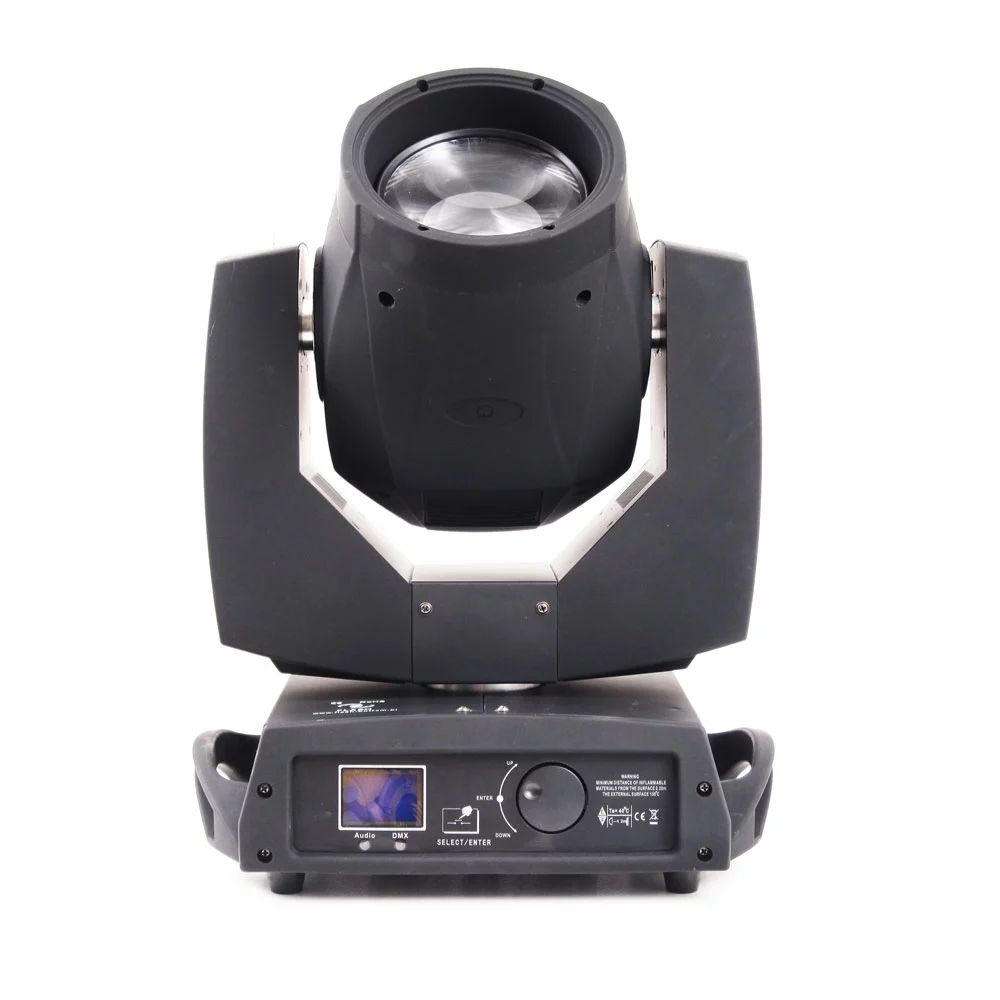

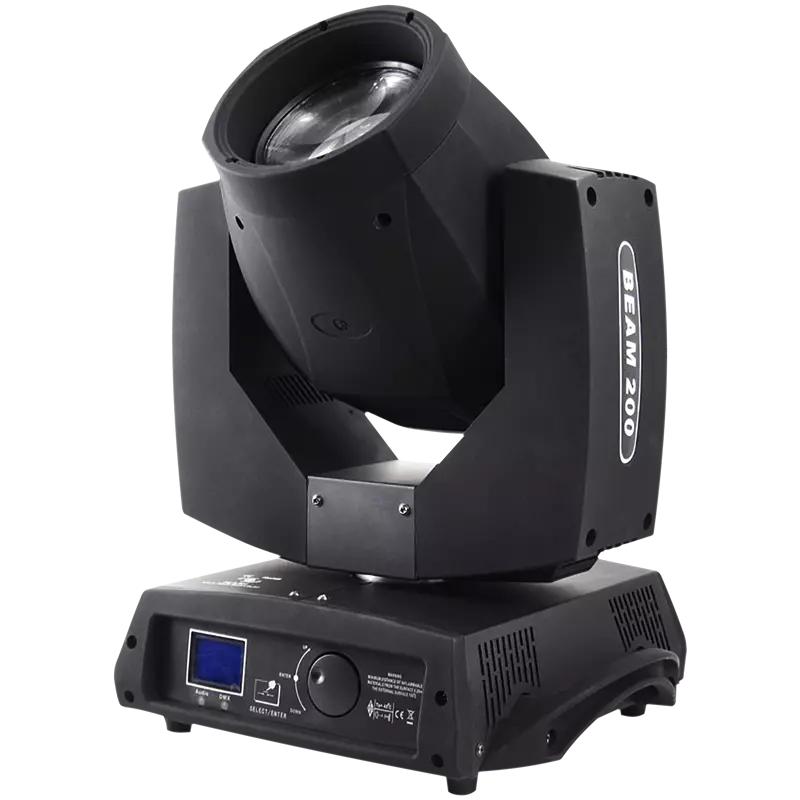

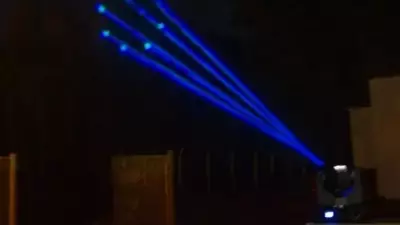

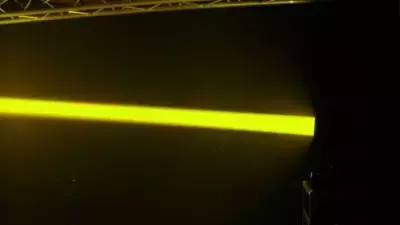

Beam FL-200 moving head equipped with a revolutionary R5 190W discharge lamp.
The generated light power of this device is comparable to 700W discharge lamps.
Compact design, low weight, intense stream of bright light are just a few of the features of this product. Additionally, this head model is equipped with a smooth zoom.

Specification BEAM 5R FL-200 T-BOLT v2

Power Source (AC)
Supply voltage 110-240V
Power consumption 250W
Power frequency 50-60Hz
Light source
Type DISCHARGE (LAMP 5R)
Quantity 1
Power (W) 190W
Color Mixing System
CMY 8 bit - 16 bit
Color Wheel
Color Wheel 14 + White
Dimming
Dimming 8 bit - 16 bit
ZOOM
ZOOM Motorized (8 bit - 16 bit)
Beam angle
Beam angle Range
Focus adjustment - Focus
Focus adjustment - Focus Motorized (8 bit - 16 bit)
Prism
Prism 1 8 (Linear)
Prism 2 8 (Round)
CTO
CTO smooth
GOBO Wheel 1
Static 17
Rotary 17
Rotation 8 bit
Removable slot Yes
Strobe - frequency
Frequency 1-20Hz
Pulsating Yes
Random Yes
DMX control
Number of modes 2
Number of channels 14-18
Movement
Range PAN 540°
Range TILT 280°
Regulation 8 bit - 16 bit
Modes of operation
DMX512 Yes
Sound control Yes
Auto control Yes
Master-slave Yes
User Interface
Physical buttons Yes
Knob Yes
LCD display Yes

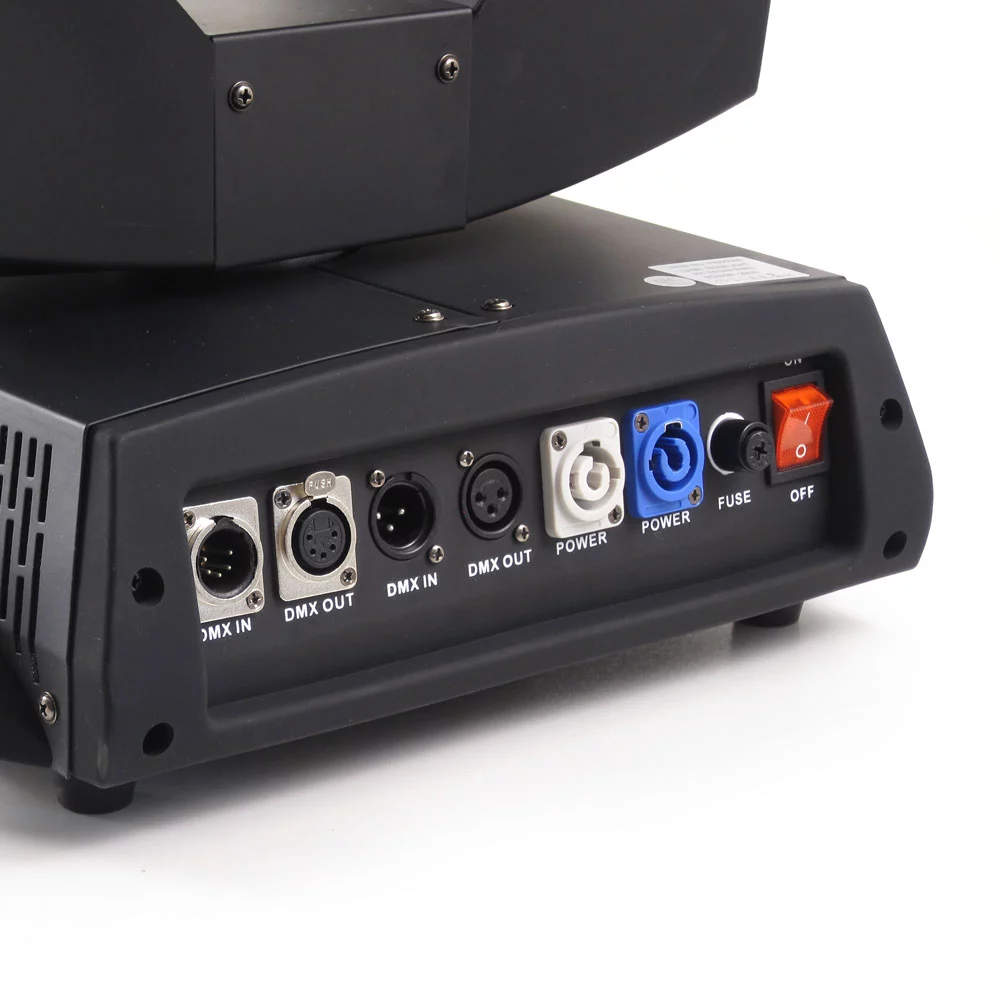

Connectors

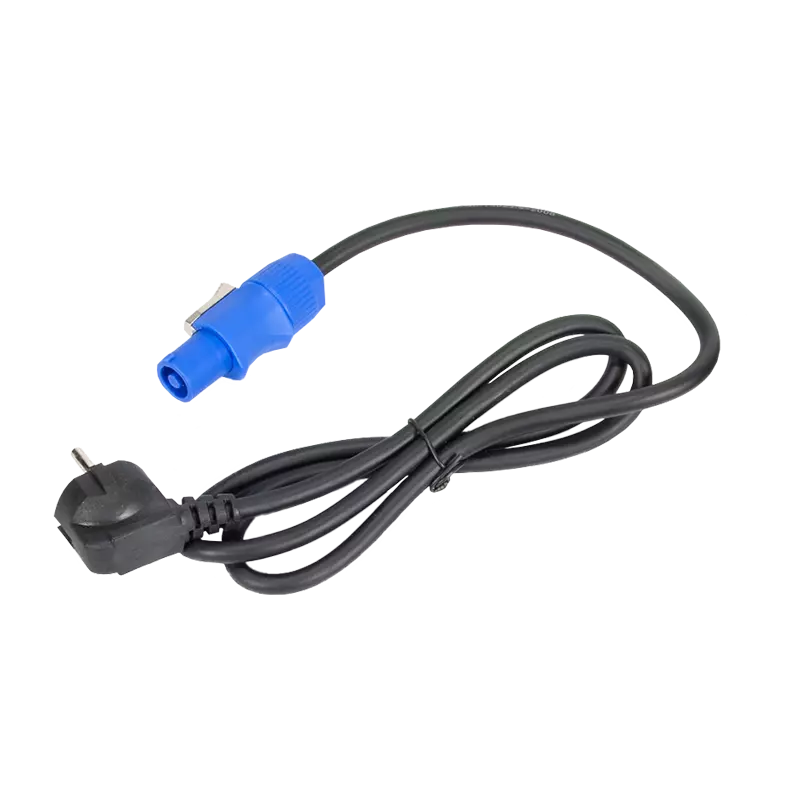

AC IN PowerCON
AC OUT PowerCON
DMX IN 3-pin DMX
DMX IN 5-pin DMX
DMX OUT 3-pin DMX
DMX OUT 5-pin DMX
Physical parameters
IP protection level IP20
Housing type ABS
Fixing Mounting hole
Blockade (Pan) No
Blockade (Tilt) No
Housing color Black
Cooling Active
Length [cm] 41 cm
Width [cm] 31 cm
Height [cm] 48,5 cm
Weight [kg] 16,5 kg
Contents of the package
A kind of package Cardboard
Manual Yes
Device BEAM 5R FL-200 T-BOLT v2

Instructions available

Instrukcja PL for BEAM 5R FL-200 T-BOLT v2
Instrukcja
Język: PL
Instrukcja EN for BEAM 5R FL-200 T-BOLT v2
Manual
Language: EN
