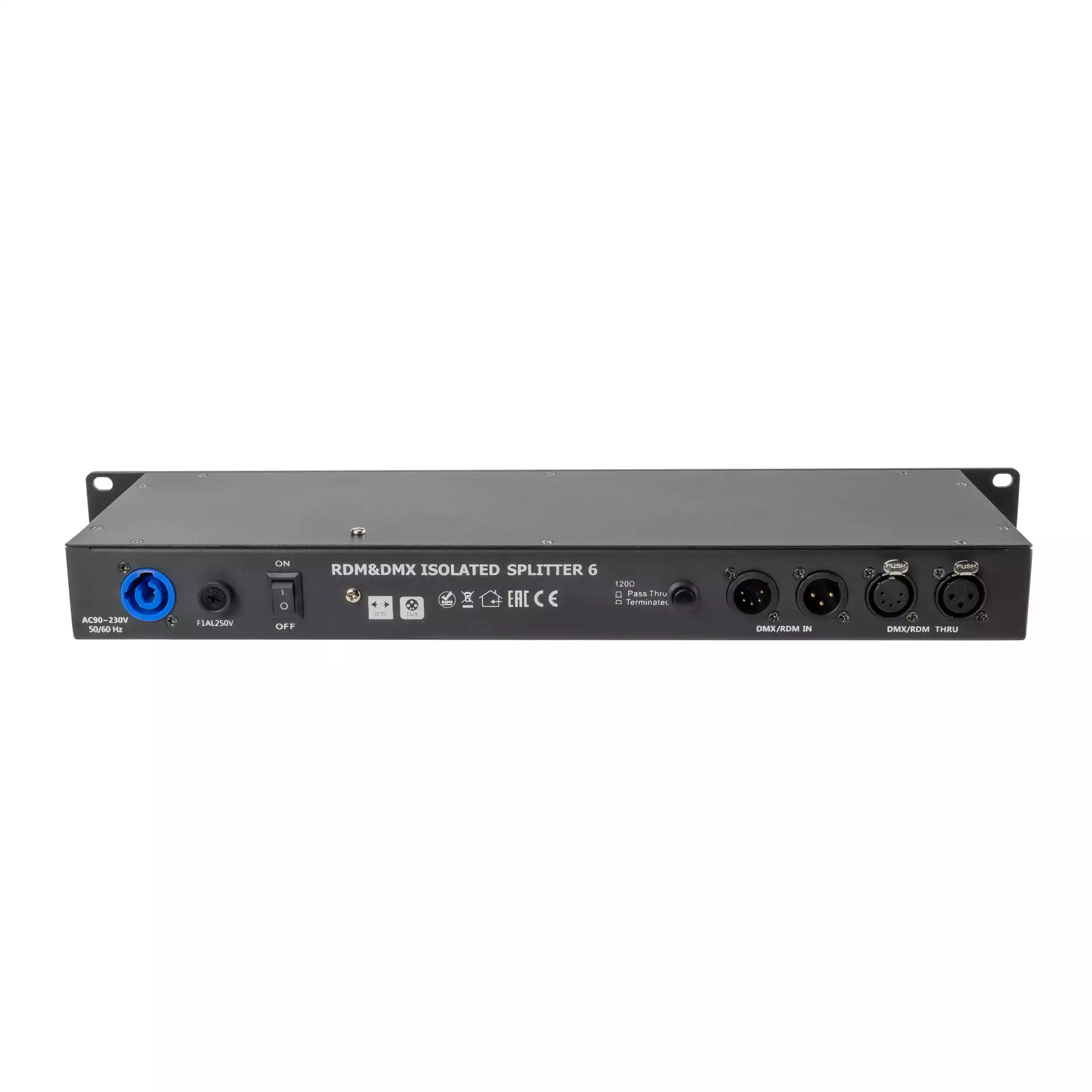

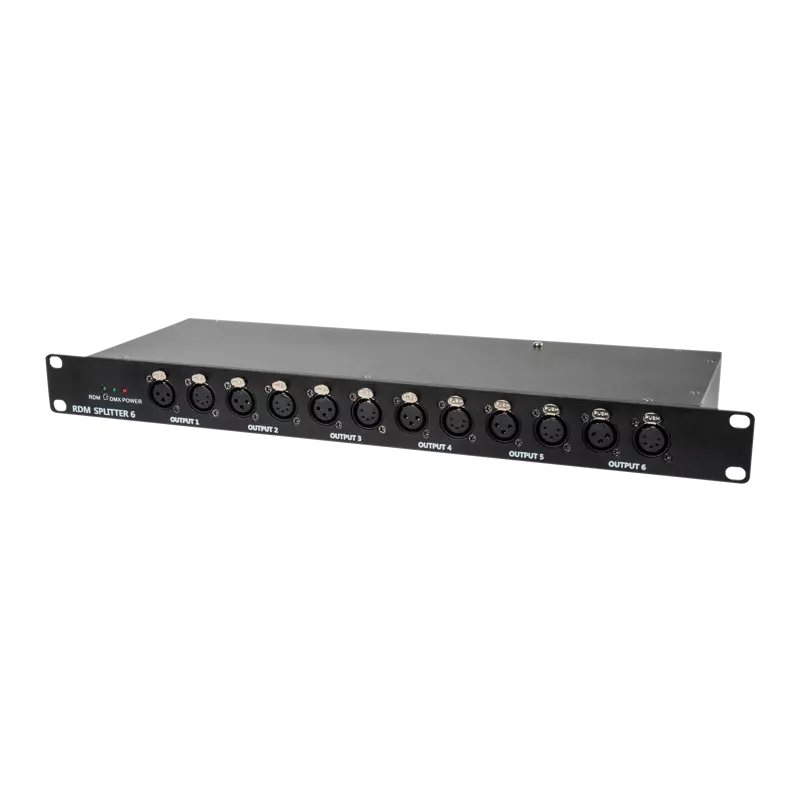

SPLITTER RDM/DMX is a 1U rack-mounted DMX/RDM signal amplifier and splitter. Compatible with RDM E1.20-2006 and USITT DMX-512 (1990) protocols, it is an ideal tool for professional users for large lighting installations to configure RDM/DMX networks.The main task of the splitter is to maintain correct data over long distances while operating multiple DMX devices at the same time.The device uses 6 galvanically isolated 3pin and 5pin DMX outputs, DMX IN 3pin and 5pin, DMX THRU 3pin and 5pin, ON/OFF switch, a bright LED indicating the DMX status and external PowerCON shading.
Power Source (AC) |
|
---|---|
Supply voltage | 100-240V |
Power consumption | 6W |
Power frequency | 50-60Hz |
Modes of operation |
|
---|---|
DMX512 | Yes |
RDM | Yes |
User Interface |
|
---|---|
Physical buttons | Yes |
Connectors |
|
---|---|
AC IN | PowerCON |
DMX IN | 3-pin DMX |
DMX IN | 5-pin DMX |
DMX OUT | 3-pin DMX |
DMX OUT | 5-pin DMX |
Physical parameters |
|
---|---|
IP protection level | IP20 |
Housing type | Steel |
Fixing | Mounting hole |
Housing color | Black |
Cooling | Passive |
Wiring | PowerCON |
Length [cm] | 48 |
Width [cm] | 15 |
Height [cm] | 4,5 |
Weight [kg] | 2 |
Contents of the package |
|
---|---|
A kind of package | cardboard box |
Manual | Yes |

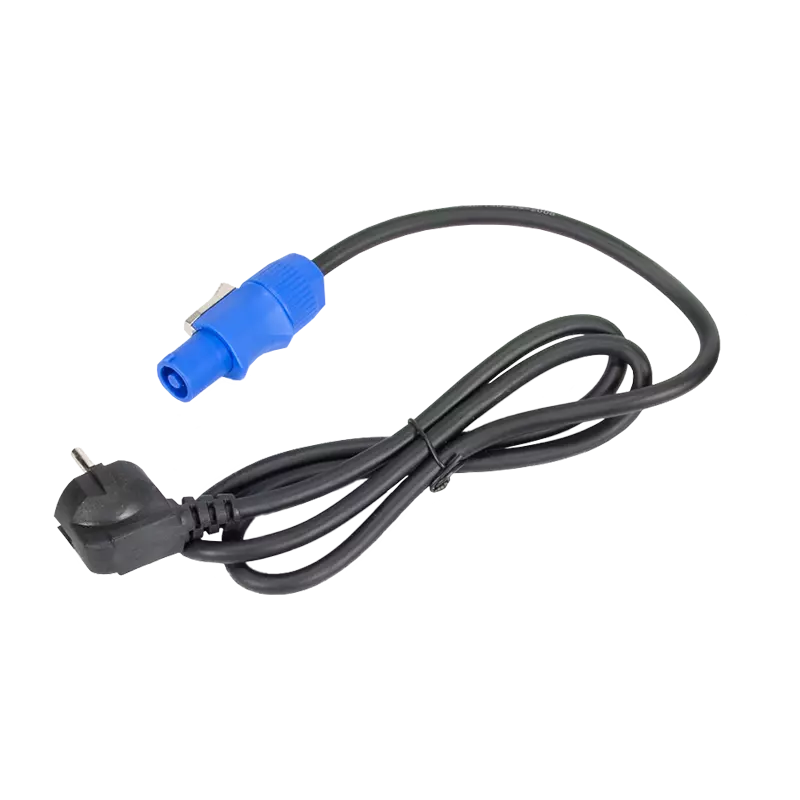

Wiring | PowerCON |
Device | SPLITTER RDM/DMX |
Handle | Integrated |
